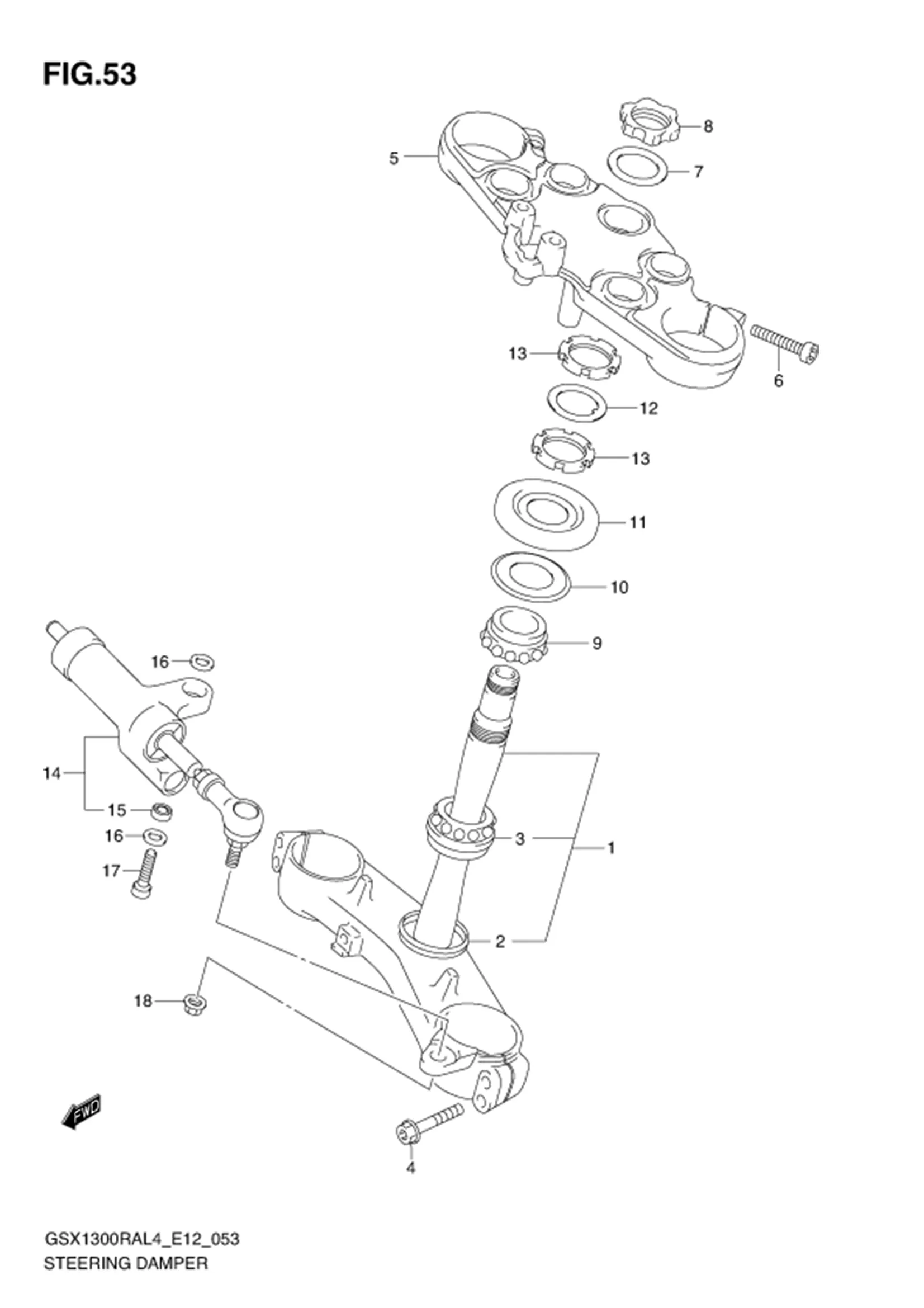

FIG.53 BRACKET STEERING DAMPER

FIG.53 BRACKET STEERING DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51410-24F50-000 BRACKET, LOWER 1 Rp6.891.000
2 51644-12C00-000 ?SEAL, LOWER 1 Rp51.000
3 09267-30010-000 ?BEARING (30X55X17) 1 Rp313.500
4 51166-01D80-000 BOLT 4 Rp40.000
5 51311-24F50-000 BRACKET, UPPER 1 Rp2.853.000
6 51328-24F50-000 BOLT 2 Rp51.000
7 51356-24F50-000 WASHER 1 Rp40.000
8 DISCONTINUE
SUB: 51353-24F00-000		 NUT 1 -
9 09267-30010-000 BEARING (30X55X17) 1 Rp313.500
10 51644-12C00-000 SEAL, DUST UPPER (30.1X56X4) 1 Rp51.000
11 51643-41G00-000 COVER, STEERING UPPER 1 Rp104.000
12 51641-33E00-000 WASHER, STEM 1 Rp45.000
13 51631-33E00-000 NUT, STEM 2 Rp166.500
14 51750-15H00-000 DAMPER ASSY, STEERING 1 Rp5.224.500
15 09269-08003-000 ?BEARING (8X17.5X11) 1 Rp381.000
16 64339-14101-000 SEAL, DUST 2 Rp56.000
17 07130-08307-000 BOLT 1 Rp25.500
18 08319-3108A-000 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
