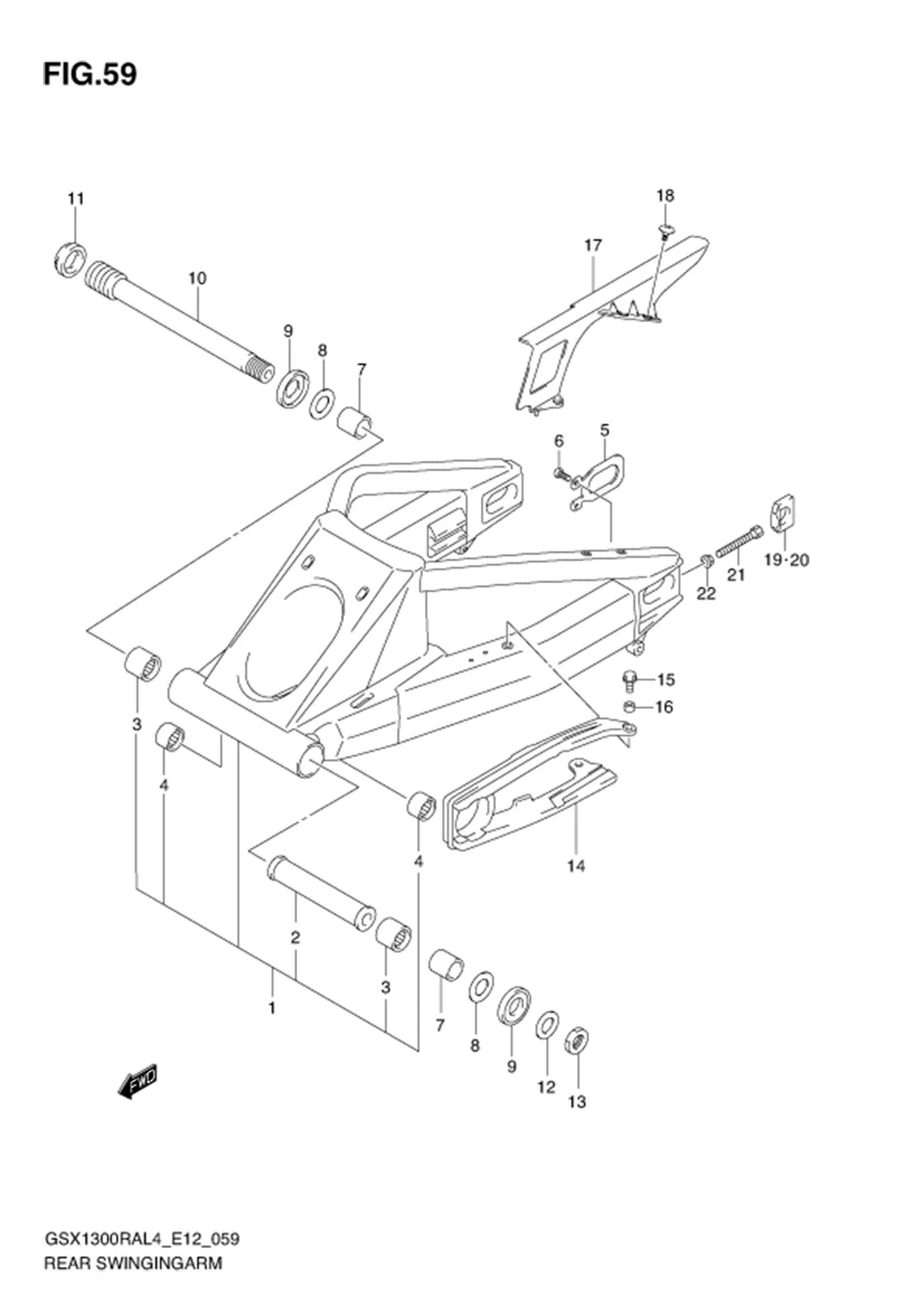

FIG.59 REAR SWINGINGARM

FIG.59 REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61000-24F50-YAP SWINGINGARM ASSY, REAR (BLACK) 1 Rp20.104.000
2 61281-33E20-000 ?SPACER, CENTER 1 Rp354.500
3 09263-30040-000 ?BEARING (30X40X25) 2 Rp297.500
4 09263-17053-000
SUB: 09263-17037-000		 ?BEARING (17X24X25) 2 Rp38.000
5 61124-33E00-000 PLATE, BRACKET 1 Rp46.500
6 DISCONTINUE
SUB: 09125-06073-000		 SCREW (6X16) 1 -
7 61251-17E20-000 SPACER, BEARING 2 Rp95.000
8 08211-25481-000 WASHER 2 Rp40.000
9 61262-17E10-000 SEAL, RR SWGARM PIVOT 2 Rp75.500
10 61211-16G00-000 SHAFT, PIVOT 1 Rp947.500
11 61214-40C31-000 NUT, PIVOT SHAFT 1 Rp323.000
12 09160-25070-000 WASHER (25.2X42X3.2) 1 Rp34.000
13 DISCONTINUE
SUB: 09159-25003-000		 NUT 1 -
14 61273-15H00-000 BUFFER, CHAIN TOUCH DEFENSE 1 Rp331.500
15 09116-06152-000 BOLT (6X20) 2 Rp12.500
16 09180-06306-000 SPACER (6.5X9X5) 2 Rp10.000
17 61311-15H00-000 CASE, CHAIN 1 Rp354.500
18 09139-06168-000 SCREW (6X16) 3 Rp20.000
19 DISCONTINUE
SUB: 61446-40F10-000		 ADJUSTER, CHAIN RH 1 -
20 DISCONTINUE
SUB: 61445-40F20-000		 ADJUSTER, CHAIN LH 1 -
21 DISCONTINUE
SUB: 09100-08287-000		 BOLT (8X50) 2 -
22 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
