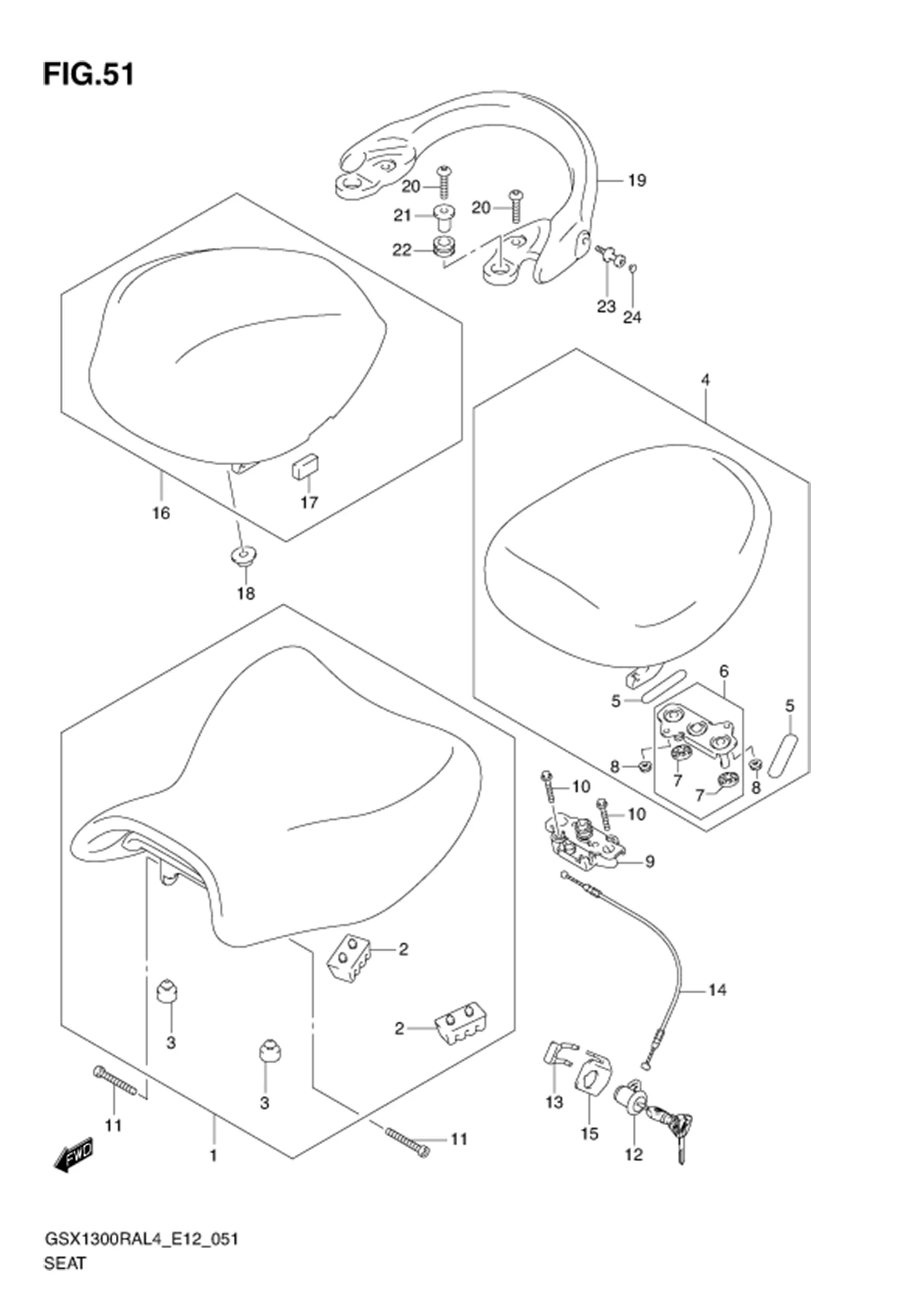

FIG.51 SEAT

FIG.51 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-15H01-EJY SEAT ASSY (BLACK) 1 Rp2.077.000
2 45149-45330-000 ?CUSHION 2 Rp27.000
3 DISCONTINUE
SUB: 09321-10011-000		 ?CUSHION 2 -
4 45300-15H11-U6H SEAT ASSY, PILLION (BLACK) 1 Rp1.145.500
5 45149-15H10-000 ?CUSHION 2 Rp51.500
6 45290-15H00-000 ?STRIKER, SEAT LOCK 1 Rp309.500
7 45213-42F00-000 ??CUSHION 2 Rp34.000
8 08316-1006A-000 ?NUT 2 Rp2.000
9 45220-15H00-000 BRACKET, SEAT SUPPORT 1 Rp787.000
10 01547-0630A-000 BOLT 2 Rp6.500
11 45191-15H00-000 BOLT, SEAT FRONT 2 Rp54.500
12 95700-14F00-000 LOCK ASSY, SEAT 1 Rp667.500
13 45289-11F00-000 PLATE, SEAT LOCK 1 Rp4.000
14 45280-18G01-000 CABLE, SEAT LOCK 1 Rp155.500
15 45288-14F20-000 GUIDE, CABLE 1 Rp56.000
16-1 45550-15H01-YKY BOX, SEAT TAIL (BLUE) 1 Rp2.920.500
16-2 45550-15H01-YVB BOX, SEAT TAIL (BLACK) 1 Rp2.416.000
16-3 45550-15H01-YVZ BOX, SEAT TAIL (RED) 1 Rp2.920.500
17 45553-15H00-000 ?CUSHION 2 Rp59.000
18 47190-24F01-000 WASHER 2 Rp65.000
19-1 46211-15H00-YKY HANDLE, PILLION RIDER (BLUE) 1 Rp2.441.000
19-2 46211-15H00-YVB HANDLE, PILLION RIDER (BLACK) 1 Rp2.441.000
19-3 46211-15H00-YVZ HANDLE, PILLION RIDER (RED) 1 Rp2.441.000
20 09106-08137-000 BOLT (8X33) 4 Rp45.500
21 47190-24F11-000 WASHER, PILLION RIDER HANDLE 2 Rp70.000
22 46217-24F00-000 CUSHION, PILLION RIDER HANDLE 2 Rp40.000
23 46212-24F11-000 HOOK, HANDLE 2 Rp234.500
24 09250-05009-000 CAP (OD:10) 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
