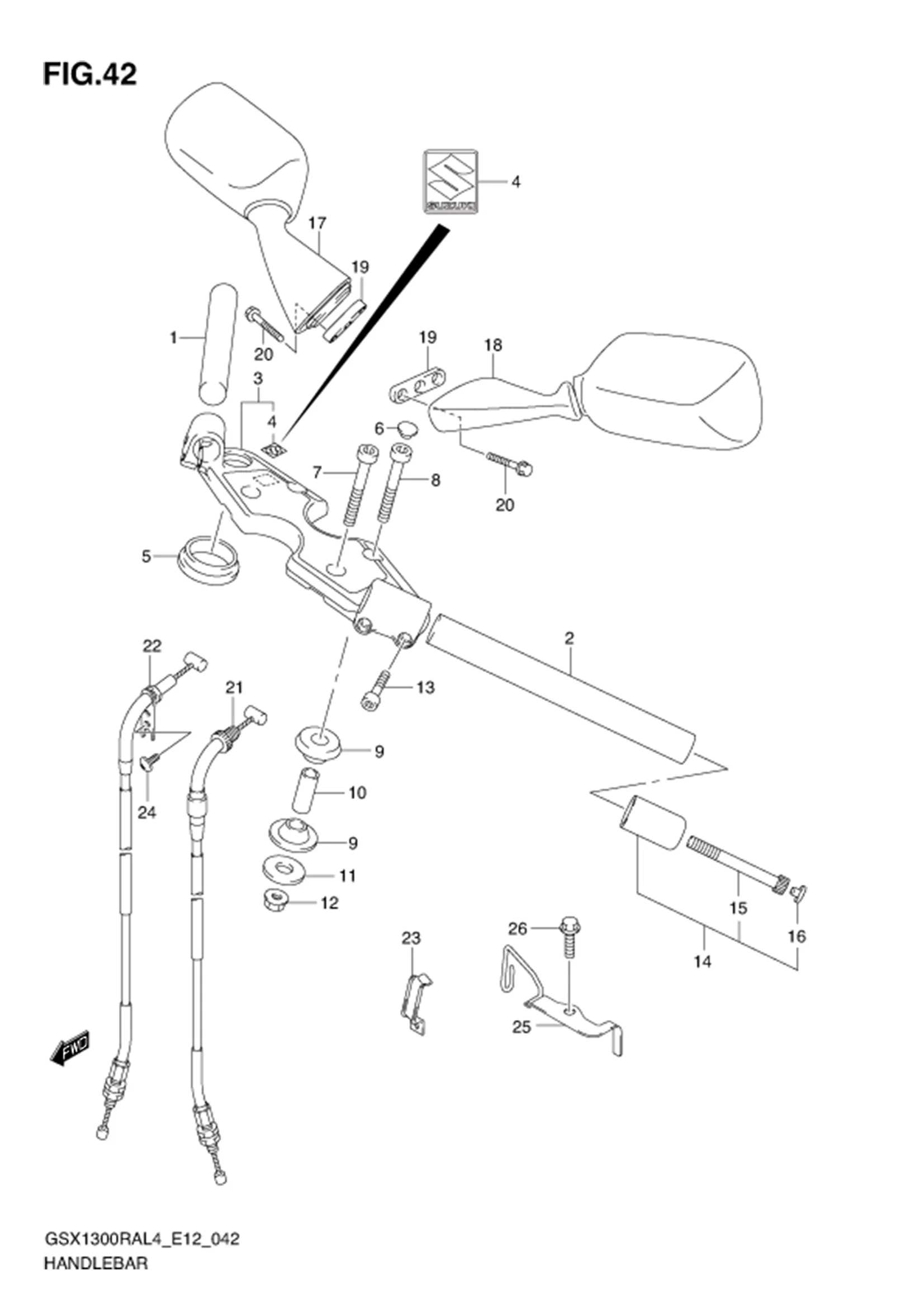

FIG.42 HANDLEBAR

FIG.42 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 56111-15H00-000 HANDLEBAR, RH 1 Rp536.000
2 56151-15H00-000 HANDLEBAR, LH 1 Rp536.000
3 56210-15H10-000 HOLDER, HANDLE 1 Rp4.603.000
4 68281-47HA0-000 ?EMBLEM, "S" 1 Rp54.500
5 56247-24F00-000 CUSHION, HANDLE HOLDER 2 Rp61.500
6 56246-24F00-000 CAP, BOLT 4 Rp56.500
7 07130-1065B-000 BOLT 2 Rp34.000
8 07130-1060A-000 BOLT 2 Rp31.000
9 56240-01D00-000 CUSHION 8 Rp215.000
10 56243-01D00-000 SPACER 4 Rp53.000
11 09160-10094-000 WASHER (10.5X30X3.2) 4 Rp23.000
12 08319-3110A-000 NUT 4 Rp4.500
13 09106-06090-000 BOLT (6X25) 4 Rp21.500
14 DISCONTINUE
SUB: 56200-15830-000		 BALANCER SET, HANDLEBAR 2 -
15 07130-0660B-000 ?BOLT 2 Rp26.500
16 09250-05009-000 ?CAP (OD:10) 2 Rp12.500
17 56500-24F20-000 MIRROR ASSY, REAR VIEW RH 1 Rp1.657.500
18 56600-24F20-000 MIRROR ASSY, REAR VIEW LH 1 Rp1.657.500
19 94576-24F00-000 CUSHION 2 Rp51.500
20 01547-0630A-000
SUB: 01547-0630B-000		 BOLT 4 Rp6.500
21 58300-15H20-000 CABLE ASSY, THROTTLE NO.1 1 Rp358.000
22 58300-15H31-000
SUB: 58300-15H30-000		 CABLE ASSY, THROTTLE NO.2 1 Rp423.500
23 58623-24F10-000 GUIDE, CABLE 1 Rp68.500
24 DISCONTINUE
SUB: 09125-05042-000		 SCREW (5X10) 1 -
25 58620-15H00-000 GUIDE, CABLE 1 Rp130.500
26 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
