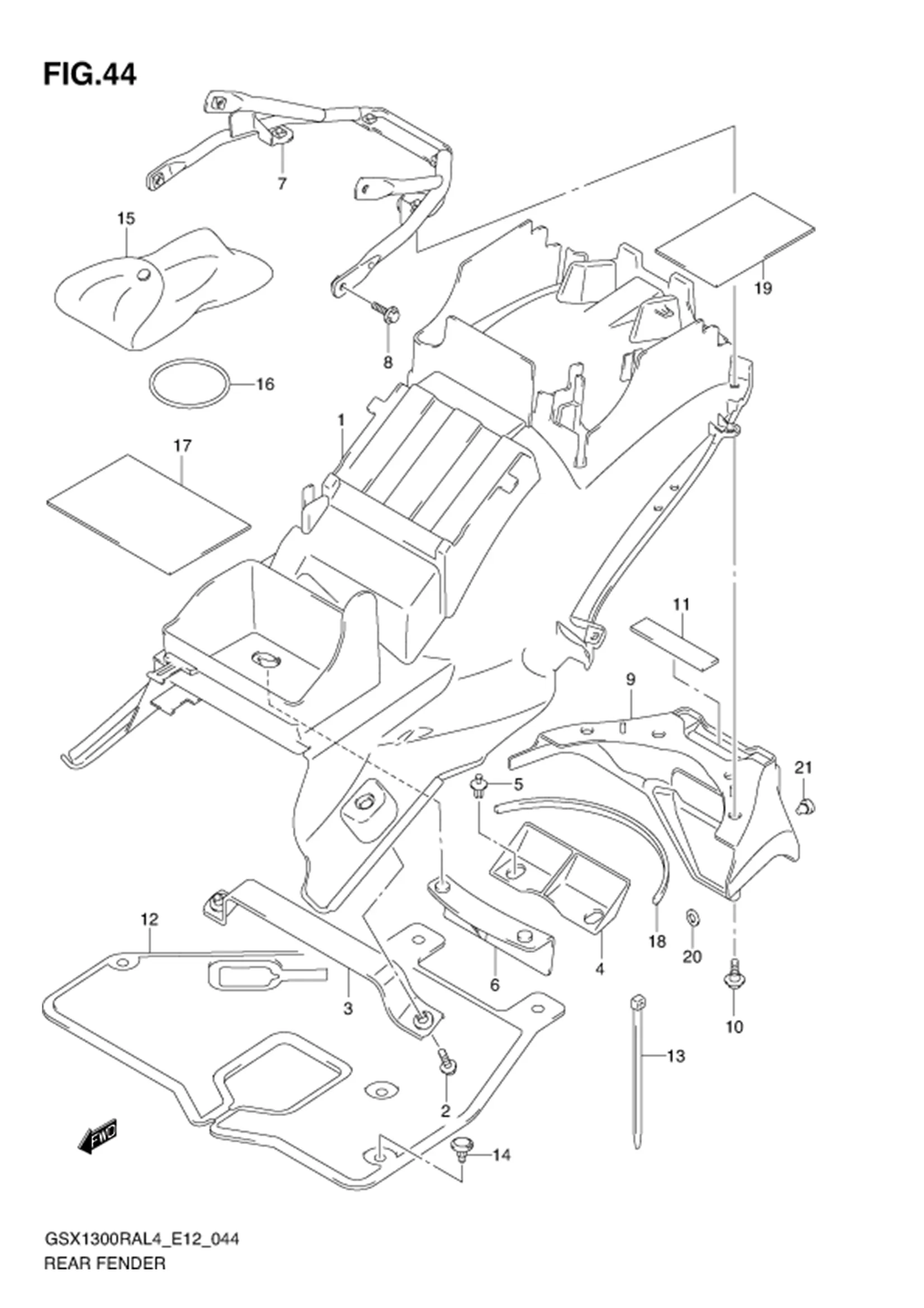

FIG.44 REAR FENDER

FIG.44 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-15H00-291 FENDER, REAR FRONT (BLACK) 1 Rp1.206.000
2 01550-0616A-000 BOLT 2 Rp3.500
3 63130-15H00-000 BRACKET, FRONT 1 Rp285.500
4 63411-24F00-000 MUDGUARD, REAR 1 Rp79.500
5 09409-07333-000 CLIP 2 Rp17.500
6 63421-24F00-000 MUDGUARD, REAR UPPER 1 Rp90.000
7 63120-15H00-000 BRACKET, REAR FENDER 1 Rp2.711.000
8 01550-0616A-000 BOLT 4 Rp3.500
9 63112-15H00-291 FENDER, REAR REAR (BLACK) 1 Rp453.000
10 09111-06099-000 BOLT (6X16) 4 Rp27.000
11 33652-49000-000 CUSHION 1 Rp24.000
12 47851-15H00-000 SHIELD, INNER 1 Rp529.000
13 36990-25G00-000
SUB: 09407-10403-000		 CLAMP (L:95) 1 Rp13.000
14 94479-35F00-000 CLIP 1 Rp35.000
15 09800-21056-000 TOOL ASSY 1 Rp175.500
16 09280-57003-000 O RING (D:3.5,ID:56.5) 1 Rp43.000
17 63113-15H00-000 CUSHION, FENDER 1 Rp99.500
18 63192-16GA0-000 CUSHION, REAR FENDER REAR NO.2 1 Rp30.000
19 63114-15H00-000 CUSHION, TOOL BAG 1 Rp82.000
20 08322-0106B-000 WASHER 2 Rp6.000
21 09250-06012-000 PLUG (OD:10) 4 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
