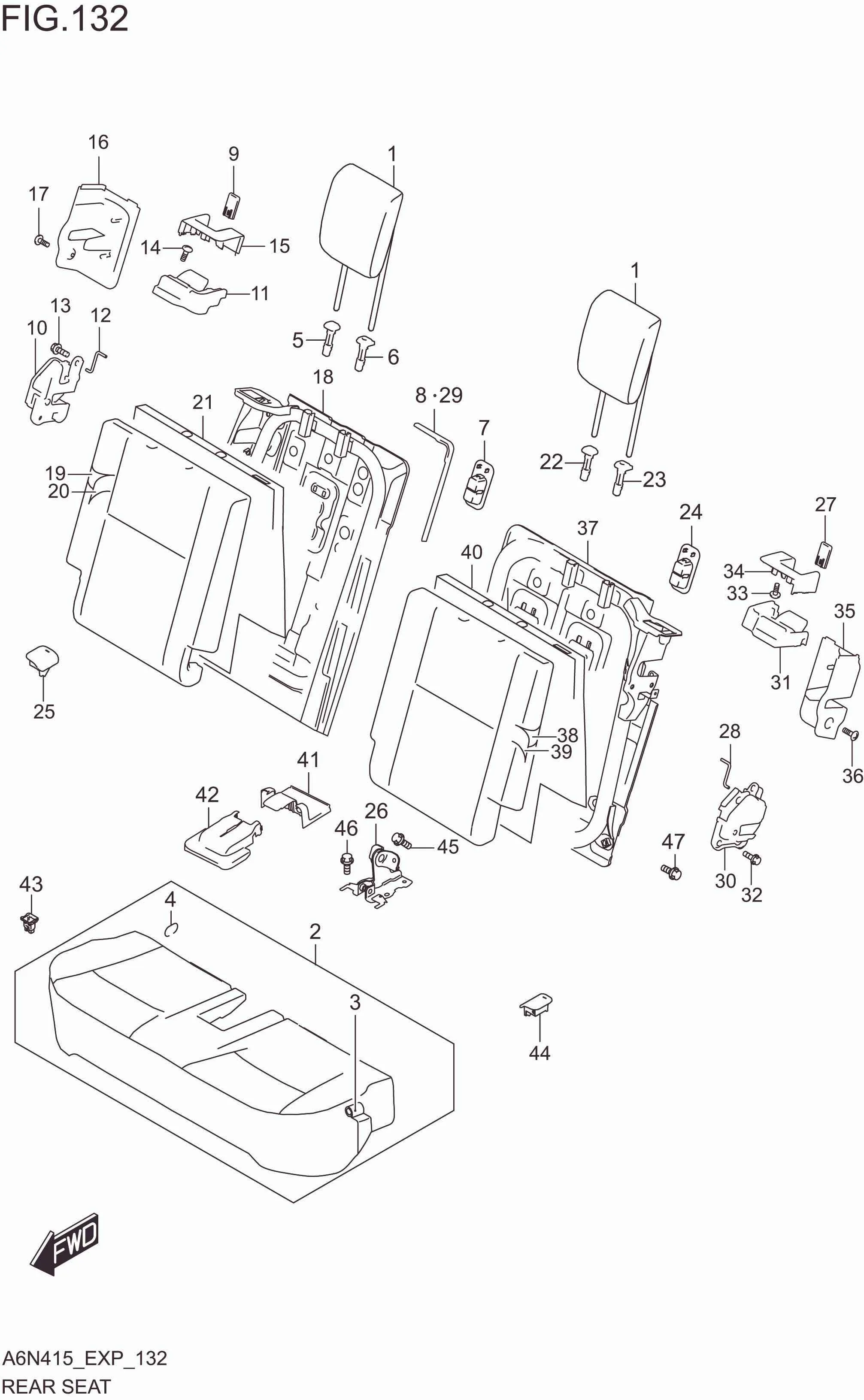

FIG. 132 REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	86401M68P10-QVL	HEADRESTRAINT ASSY (BLACK)	2	Rp343.000
2	87101M80T00-E37	CUSHION ASSY,RR (BLACK)	1	Rp2.726.000
3	87180M80T00-E37	.TRIM, RR CUSHION (BLACK)	1	Rp735.000
4	09387M19001-000	.RING (OD:22.6)	36	Rp7.500
5	85341M79M10-5PK	GUIDE,HEADRESTRAINT (BLACK)	1	Rp9.500
6	85840M79M20-5PK	GUIDE,HEADRESTRAINT (BLACK)	1	Rp11.000
7	87225M72U00-5PK	COVER,TETHER ANCHOR (BLACK)	1	Rp108.000
8	87339M80T60-000	PROTECTOR,RR BACK FRAME,R	1	Rp135.500
9	87471M65M00-5PK	INDICATOR,RR BACK LOCK(BLACK)	1	Rp7.000
10	87480-61M30-000	LOCK ASSY,RR BACK,R	1	Rp1.066.000
11	87481M65M30-5PK	KNOB,RR BACK LOCK,R(BLACK)	1	Rp12.500
12	87485M65M30-000	WIRE,RR BACK LOCK	1	Rp8.000
13	01550-0820A-000	BOLT,RR BACK LOCK	3	Rp5.500
14	03241-0508A-000	SCREW,BEZEL	1	Rp10.500
15	87482M65M30-5PK	BEZEL,RR BACK LOCK,R(BLACK)	1	Rp7.000
16	87486M65M30-5PK	BEZEL,RR BACK LOCK HOLE,R (BLACK)	1	Rp45.500
17	03241-0508A-000	SCREW,BEZEL	1	Rp10.500
18	87310M80T60-000	FRAME,RR BACK,R	1	Rp1.754.500
19	87360M80T60-000	PAD, RR BACK,R	1	Rp178.500
20	87380M80T60-E37	TRIM, RR BACK,R (BLACK)	1	Rp757.500
21	87364M80T60-000	SILENCER,RR BACK,R	1	Rp20.500
22	85341M79M10-5PK	GUIDE,HEADRESTRAINT (BLACK)	1	Rp9.500
23	85840M79M20-5PK	GUIDE,HEADRESTRAINT (BLACK)	1	Rp11.000
24	87225M72U00-5PK	COVER,TETHER ANCHOR (BLACK)	1	Rp108.000
25	87491M68P10-5PK	COVER,RR SEAT HINGE,R(BLACK)	1	Rp10.000
26	87950M80T60-000	HINGE ASSY,RR CENTER	1	Rp159.500
27	87471M65M00-5PK	INDICATOR,RR BACK LOCK(BLACK)	1	Rp7.000
28	87485M65M30-000	WIRE,RR BACK LOCK	1	Rp8.000
29	87839M80T60-000	PROTECTOR,RR BACK FRAME,L	1	Rp135.500
30	87980-61M30-000	LOCK ASSY,RR BACK,L	1	Rp1.066.000
31	87981M65M30-5PK	KNOB,RR BACK LOCK,L(BLACK)	1	Rp12.500
32	01550-0820A-000	BOLT,RR BACK LOCK	3	Rp5.500
33	03241-0508A-000	SCREW,BEZEL	1	Rp10.500
34	87982M65M30-5PK	BEZEL,RR BACK LOCK,L(BLACK)	1	Rp20.500
35	87986M65M30-5PK	BEZEL,RR BACK LOCK HOLE,L	1	Rp47.500
36	03241-0508A-000	SCREW,BEZEL	1	Rp10.500
37	87810M80T60-000	FRAME,RR BACK,L	1	Rp2.483.500
38	87860M80T60-000	PAD, RR BACK,L	1	Rp178.500
39	87880M80T60-E37	TRIM, RR BACK,L (BLACK)	1	Rp757.500
40	87864M80T60-000	SILENCER,RR BACK,L	1	Rp32.500
41	87285M80T60-5PK	COVER,RR CENTER HINGE FR (BLACK)	1	Rp11.500
42	87286M80T60-5PK	COVER,RR CENTER HINGE RR (BLACK)	1	Rp41.000
43	87460M80T00-000	HOOK,RR SEAT CUSH	2	Rp4.500
44	87991M68P10-5PK	COVER,RR SEAT HINGE,L(BLACK)	1	Rp10.000
45	09118-06045-000	BOLT(6X20)	2	Rp17.000
46	01551-1020A-000	BOLT,RR CENTER HINGE	4	Rp18.000
47	01551-1020A-000	BOLT,RR BACK	2	Rp18.000
