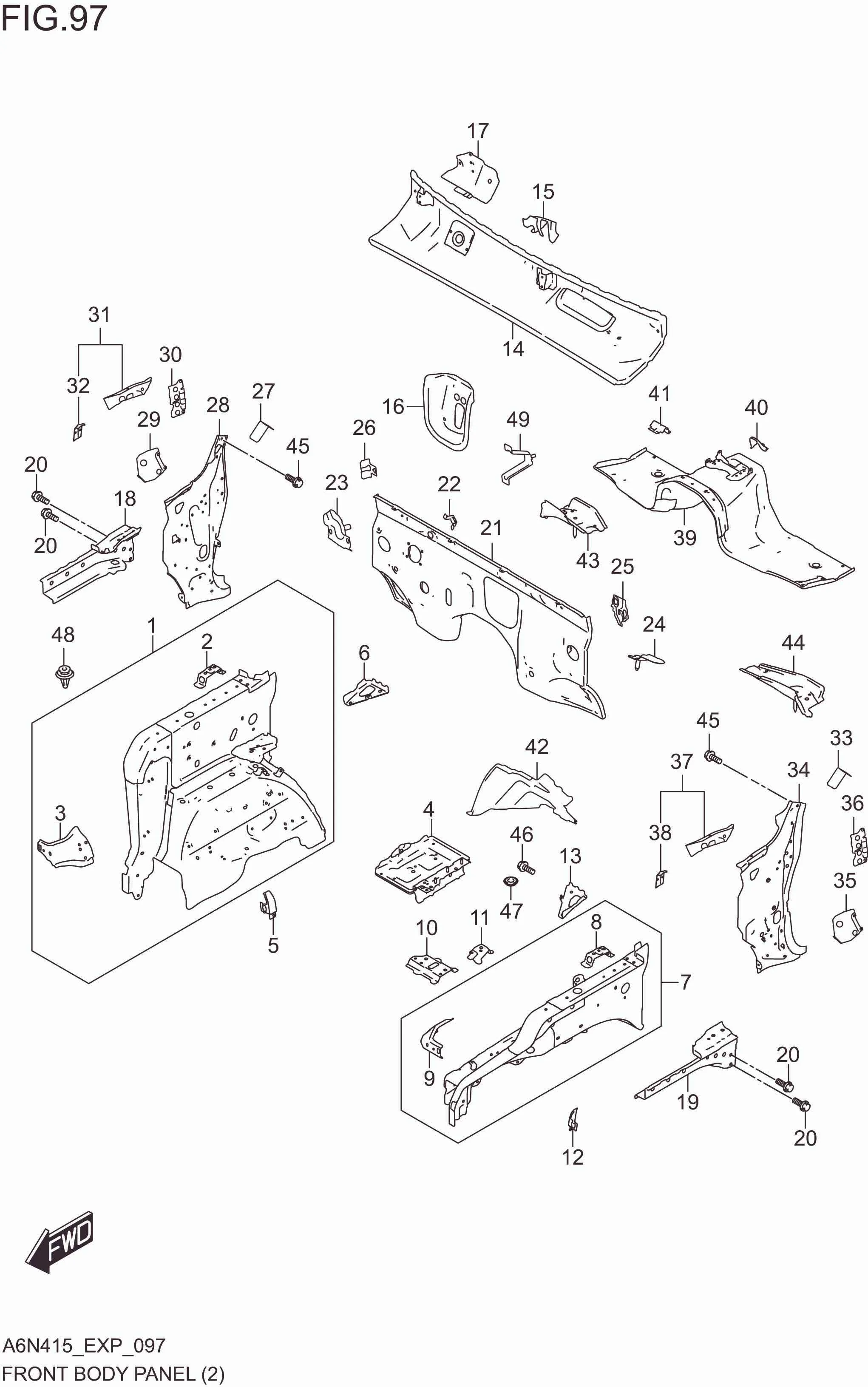

FIG. 097 FRONT BODY PANEL(RHD)

No	No. Part	Description	Qty	Price Per Pcs
1	58710M80T00-000	PANEL, FR WHEEL HOUSING,RH	1	Rp1.368.500
2	58716-78R00-000	.BRACKET,FRONT FENDER RR	1	Rp139.500
3	58731-78R00-000	.BRACKET,HEAD LAMP,RH	1	Rp181.000
4	58720-78R00-000	BRACKET, BATTERY	1	Rp987.500
5	58732M80T00-000	BRACKET,FR BRAKE FLEX HOSE,RH	1	Rp19.500
6	58741-78R00-000	BRACE,FENDER APRON RR UPR,RH	1	Rp155.500
7	58910M80T00-000	PANEL, FR WHEEL HOUSING,LH	1	Rp1.368.500
8	58716-78R00-000	.BRACKET,FRONT FENDER RR	1	Rp139.500
9	58931-78R00-000	.BRACKET,HEAD LAMP,LH	1	Rp181.000
10	58922-78R00-000	BRACKET,HU FR	1	Rp151.000
11	58923-78R00-000	BRACKET,HU RR	1	Rp130.000
12	58932M80T00-000	BRACKET,FR BRAKE FLEX HOSE,LH	1	Rp19.500
13	58941-78R00-000	BRACE,FENDER APRON RR UPR,LH	1	Rp155.500
14	59310M80T00-000	PANEL, COWL UPPER	1	Rp822.500
15	59324-78R00-000	BRACKET,WIPER MOTOR	1	Rp316.000
16	59326-78R00-000	EXTENSION,HVAC BRACKET	1	Rp324.500
17	59330-78R00-000	EXTENSION, PEDAL BRACKET	1	Rp315.000
18	59410M80T00-000	MEMBER, COWL SIDE OUTER,RH	1	Rp415.500
19	59460M80T00-000	MEMBER, COWL SIDE OUTER,LH	1	Rp415.500
20	01551-0820A-000	BOLT	4	Rp17.500
21-1	61111M78R02-000	PANEL, DASH	1	Rp1.111.000
21-2	61111M78R12-000	PANEL, DASH	1	Rp1.111.000
22	61113M78R00-000	BRACKET,HVAC NO.4	1	Rp19.000
23	61115M80T00-000	BRACKET,ACCEL PEDAL	1	Rp14.500
24	61116M80T00-000	BRACKET,HEAT INSULATOR NO.3	1	Rp7.500
25	61120M78R00-000	REINF ,PEDAL BRACKET	1	Rp313.500
26	59123M63R00-000	BRACKET,HARNESS	1	Rp7.500
27	59242M54M00-000	BRACKET,INSTRUMENT PANEL SIDE	1	Rp8.500
28	61211M80T00-000	PANEL,DASH SIDE,RH	1	Rp518.500
29	61212M78R00-000	REINF,DASH SIDE,RH	1	Rp518.500
30	61213M80T00-000	REINF,DASH SIDE FR,RH	1	Rp32.500
31	61220M78R00-000	PANEL ,DASH SIDE FR,RH	1	Rp48.000
32	61222-78R00-000	.ABSORBER,COWL SIDE	1	Rp78.500
33	59242M54M00-000	BRACKET,INSTRUMENT PANEL SIDE	1	Rp8.500
34	61311M80T00-000	PANEL,DASH SIDE,LH	1	Rp518.500
35	61312M78R00-000	REINF,DASH SIDE,LH	1	Rp518.500
36	61313M80T00-000	REINF,DASH SIDE FR,LH	1	Rp32.500
37	61320M78R00-000	PANEL ,DASH SIDE FR,LH	1	Rp48.000
38	61222-78R00-000	.ABSORBER,COWL SIDE	1	Rp78.500
39-1	61410M80T00-000	PANEL, TUNNEL FRONT	1	Rp1.185.000
39-2	61410M80T10-000	PANEL, TUNNEL FRONT	1	Rp1.185.000
40	61416-78R00-000	BRACKET,I/P BRACE	1	Rp224.500
41	61417-78R00-000	BRACKET,HEEL STOPPER	1	Rp209.500
42	61418-78R00-000	BRACKET,FOOT REST	1	Rp311.500
43	61420-78R00-000	MEMBER, 2ND MOUNTING,RH	1	Rp668.500
44	61430-78R00-000	MEMBER, 2ND MOUNTING,LH	1	Rp668.500
45	01550-0610B-000	BOLT (6X10)	2	Rp3.000
46	09119-05018-000	BOLT,DRAIN HOSE	1	Rp13.000
47	09250M15022-000	CAP,FR WHEEL HOUSING	8	Rp6.500
48	09409M08006-000	CLIP,COWL TOP OUTER PANEL	5	Rp5.000
49	61112M78R00-000	BRACKET,HVAC NO.3	1	Rp19.000
