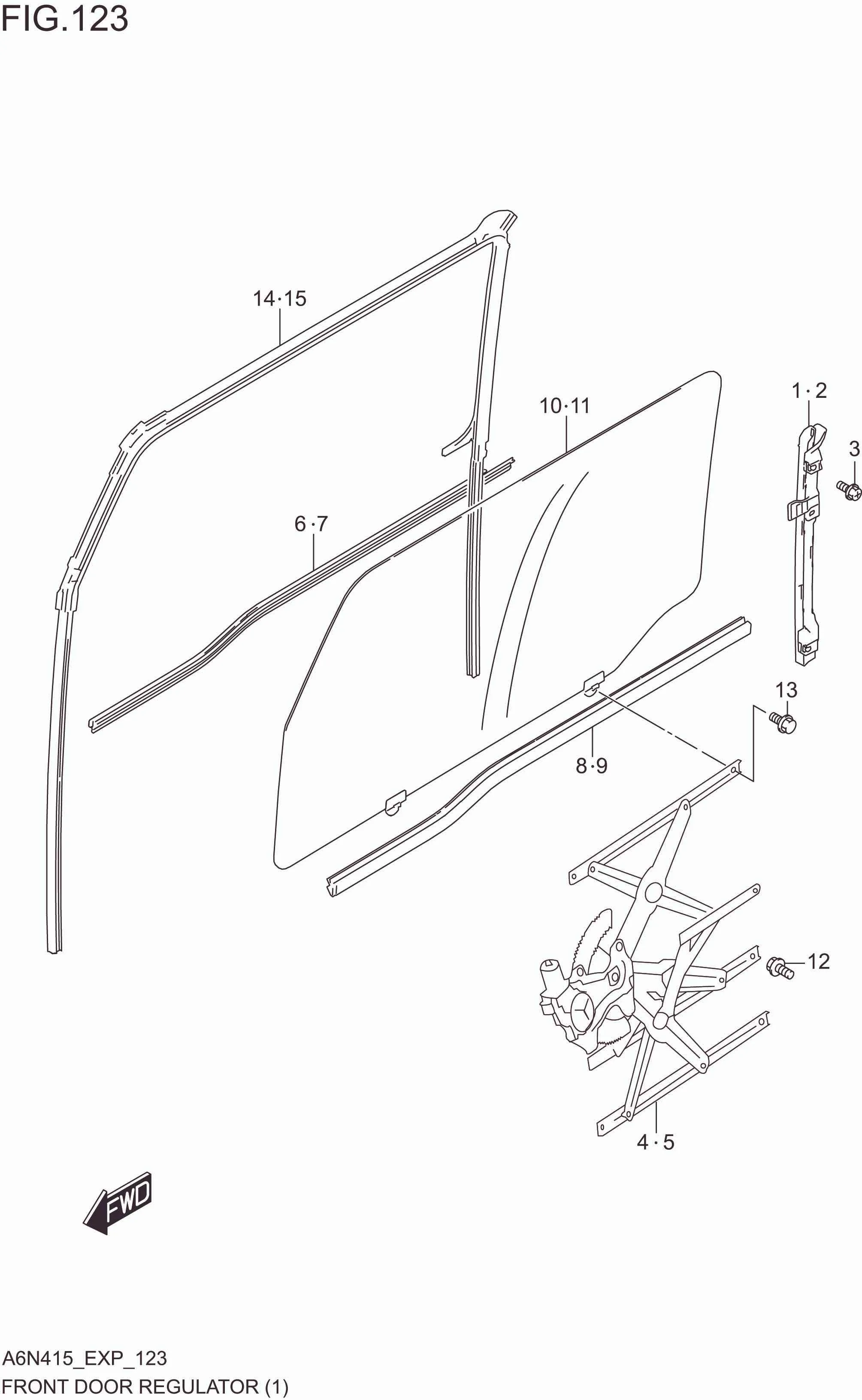

FIG. 123 FRONT DOOR REGULATOR(RHD)

FIG. 123 FRONT DOOR REGULATOR(RHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	81730M80T00-000	SASH, FRONT DOOR REAR,R	1	Rp26.500
2	81740M80T00-000	SASH, FRONT DOOR REAR,L	1	Rp26.500
3	09122-76001-000	SCREW (6X16)	4	Rp16.500
4	83401M80T10-000	REGULATOR ASSY,FRONT WINDOW,R	1	Rp317.500
5	83402M80T20-000	REGULATOR ASSY,FRONT WINDOW,L	1	Rp317.500
6	83811M80T00-000	WEATHERSTRIP,FR DOOR OUT,R	1	Rp291.000
7	83821M80T00-000	WEATHERSTRIP,FR DOOR OUT,L	1	Rp291.000
8	83851M80T00-000	WEATHERSTRIP,FR DOOR INNER,R	1	Rp117.000
9	83861M80T00-000	WEATHERSTRIP,FR DOOR INNER,L	1	Rp117.000
10	84501M80T00-000	GLASS,FR DR WINDOW,R	1	Rp443.500
11	84502M80T00-000	GLASS,FR DR WINDOW,L	1	Rp443.500
12	DISCONTINUE SUB: 01580-0612A-000	SCREW,FR WINDOW RGLTR	4	-
13	DISCONTINUE SUB: 01580-0612A-000	SCREW,FR DOOR GLASS BOTTOM	8	-
14	83661M80T00-000	RUN,FRONT DOOR GLASS,R	1	Rp351.000
15	83665M80T00-000	RUN,FRONT DOOR GLASS,L	1	Rp351.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
