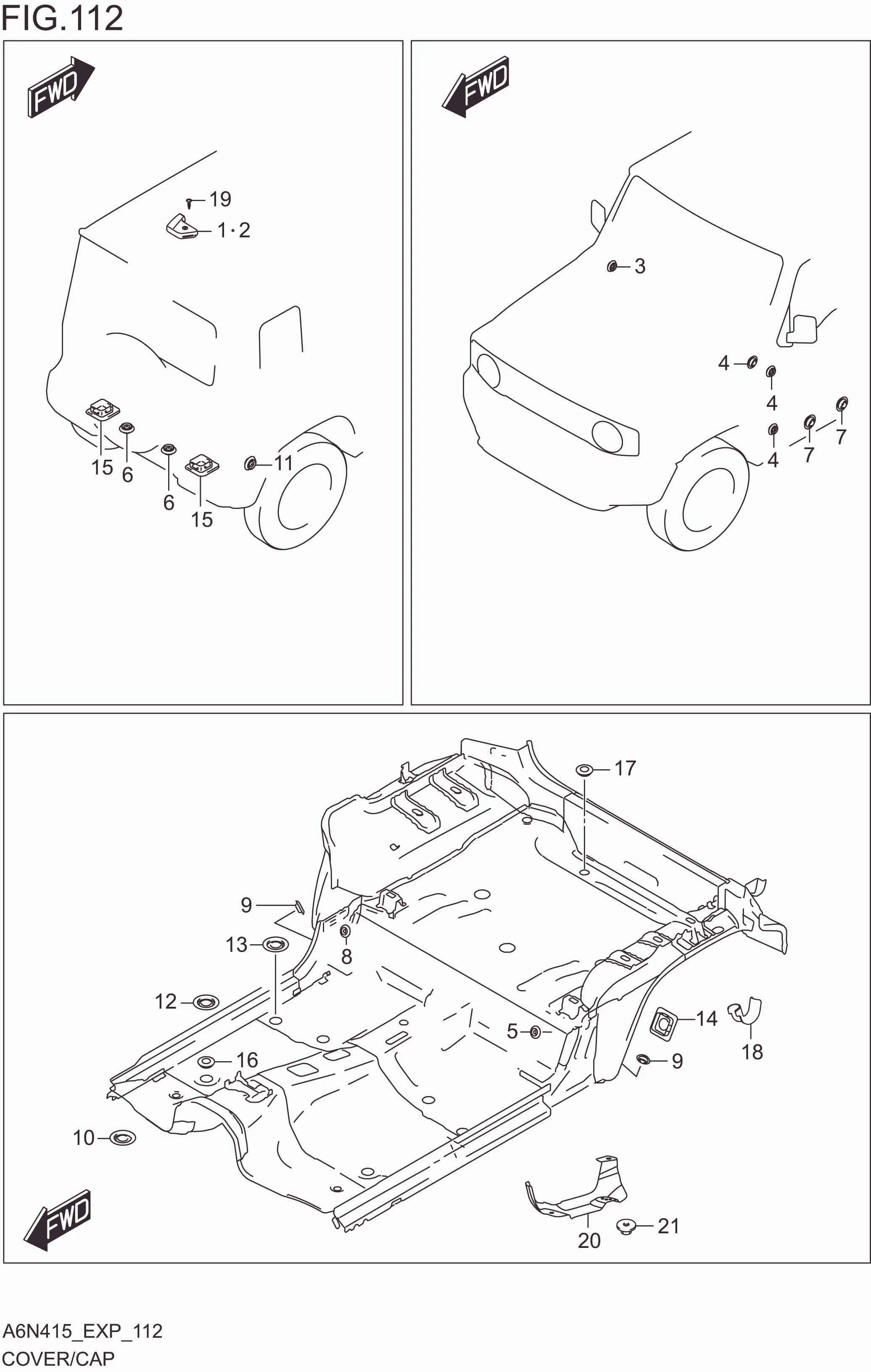

FIG. 112 COVER/CAP

FIG. 112 COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75411M80T00-5PK	COVER,STRIKER,R (BLACK)	1	Rp35.500
2	75421M80T00-5PK	COVER,STRIKER,L (BLACK)	1	Rp35.500
3	09250M10032-000	CAP	2	Rp7.000
4	09250M10032-000	CAP	6	Rp7.000
5	09250M10032-000	CAP	2	Rp7.000
6	09250M10034-000	CAP	2	Rp1.500
7	09250M15022-000	CAP	6	Rp6.500
8	09250M15022-000	CAP	6	Rp6.500
9	09250M15025-000	CAP	0	Rp1.500
10	09250M15025-000	CAP	2	Rp1.500
11	09250M20036-000	CAP	2	Rp3.500
12	09250-30023-000	CAP	4	Rp54.000
13	09250-30023-000	CAP	2	Rp54.000
14	75411-60A00-000	CAP	2	Rp48.500
15	75411-60A00-000	CAP	2	Rp48.500
16	75431M50S01-000	CAP	6	Rp13.500
17	75431M50S01-000	CAP	2	Rp13.500
18	71491M78R00-000	PROTECTOR,TOWING HOOK	3	Rp2.500
19	09132-05058-000	SCREW(5X12)	2	Rp14.000
20	72451M80T00-000	INSULATOR,CATALYST HEAT	1	Rp37.000
21	08361M2506A-000	NUT,HEAT INSULATOR	2	Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
