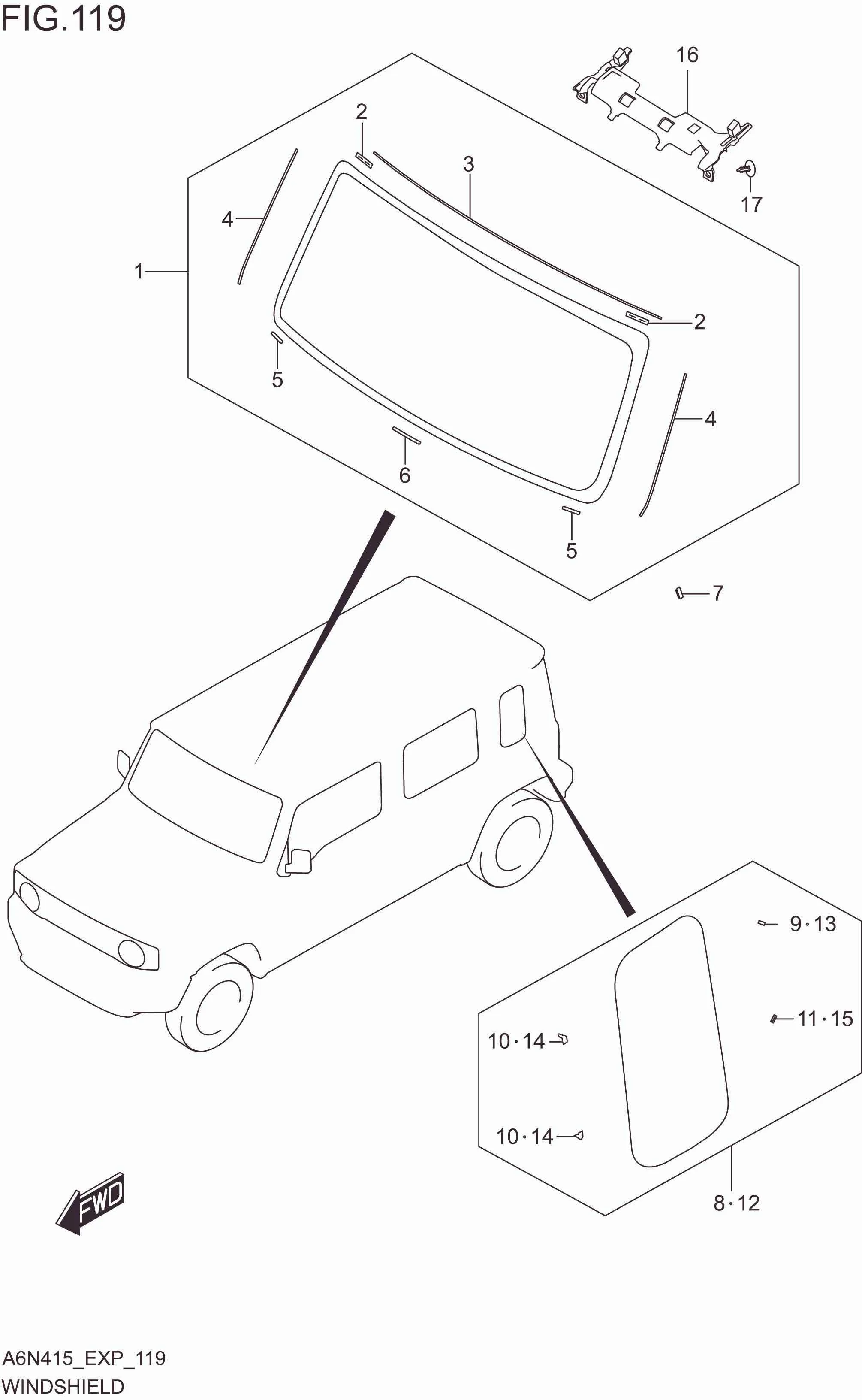

FIG. 119 WINDSHIELD

FIG. 119 WINDSHIELD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	84510M80T00-000	GLASS,WINDSHIELD	1	Rp1.292.500
2	84512M80T00-000	.FASTENER, GLASS UPPER	2	Rp26.000
3	84514-78R00-000	.DAM, WINDSHIELD UPPER	1	Rp26.500
4	84515-78R00-000	.DAM, WINDSHIELD SIDE	2	Rp21.000
5	84572M71L00-000	.SPACER, WINDSHIELD GLASS	2	Rp5.500
6	84617-64P00-000	.SPACER, WINDSHIELD GLASS	1	Rp55.000
7	84515M65D10-000	FEMALE,GLASS FASTENER NO.2	2	Rp22.000
8	84580M80T00-000	GLASS,QTR WINDOW,R	1	Rp237.500
9	84513M75J00-000	.MALE,GLASS FASTENER NO.2	1	Rp8.500
10	84582M80T00-000	.PIN, QTR WINDOW	2	Rp30.000
11	84583-73H00-000	.SPACER,QTR WINDOW GLASS	1	Rp43.500
12	84590M80T00-000	GLASS,QTR WINDOW,LH	1	Rp237.500
13	84513M75J00-000	.MALE,GLASS FASTENER NO.2	1	Rp8.500
14	84582M80T00-000	.PIN, QTR WINDOW	2	Rp30.000
15	84583-73H00-000	.SPACER,QTR WINDOW GLASS	1	Rp43.500
16	84524M80T00-000	HOLDER,AUTO BRAKE CONT NO.2	1	Rp29.500
17	09409M08006-000	CLIP,AUTO BRAKE CONT HOLDER	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
