New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 092 BODY MOUNTING(RHD)FIG. 093 CHASSIS FRAME(RHD)FIG. 094 FRONT HOOD PANEL(RHD)FIG. 095 TIRE CARRIER(N/COVER)FIG. 096 FRONT FENDER PANEL FIG. 097 FRONT BODY PANEL(RHD)FIG. 098 FLOOR PANEL FIG. 099 SIDE BODY PANEL FIG. 100 ROOF PANEL FIG. 101 FRONT BUMPER FIG. 102 REAR BUMPER FIG. 103 INSTRUMENT PANEL UPPER(RHD)FIG. 104 INSTRUMENT PANEL LOWER (RHD)FIG. 105 VENTILATOR (RHD)FIG. 106 HEATER UNIT (RHD:W_AU_AC)FIG. 107 HEATER CONTROL (W_AU_AC)FIG. 108 CONSOLE BOX (5MT)FIG. 109 CONSOLE BOX (4AT)FIG. 110 FLOOR CARPET(RHD)FIG. 111 INTERIOR TRIM FIG. 112 COVER/CAP FIG. 113 FUEL LID OPENER (RHD)FIG. 114 ROOF LINING FIG. 115 MOLDING FIG. 116 SPLASH GUARD FIG. 117 EMBLEM FIG. 118 ROOF SIDE PAD/AIR BAG(6AB)FIG. 119 WINDSHIELD FIG. 120 FRONT DOOR PANEL FIG. 121 REAR DOOR PANEL FIG. 122 BACK DOOR PANEL FIG. 123 FRONT DOOR REGULATOR(RHD)FIG. 124 REAR DOOR REGULATOR(RHD)FIG. 125 FRONT DOOR LOCK FIG. 126 REAR DOOR LOCK FIG. 127 BACK DOOR LOCK FIG. 128 MIRROR/SUNVISOR FIG. 129 SEAT BELT FIG. 130 FRONT LH SEAT (RHD:6AB)FIG. 131 FRONT RH SEAT (RHD:6AB)FIG. 132 REAR SEAT FIG. 133 FUEL TANK FIG. 134 TOOL FIG. 135 CONDENSER FIG. 136 A/C PIPING(RHD)FIG. 137 COMPRESSOR

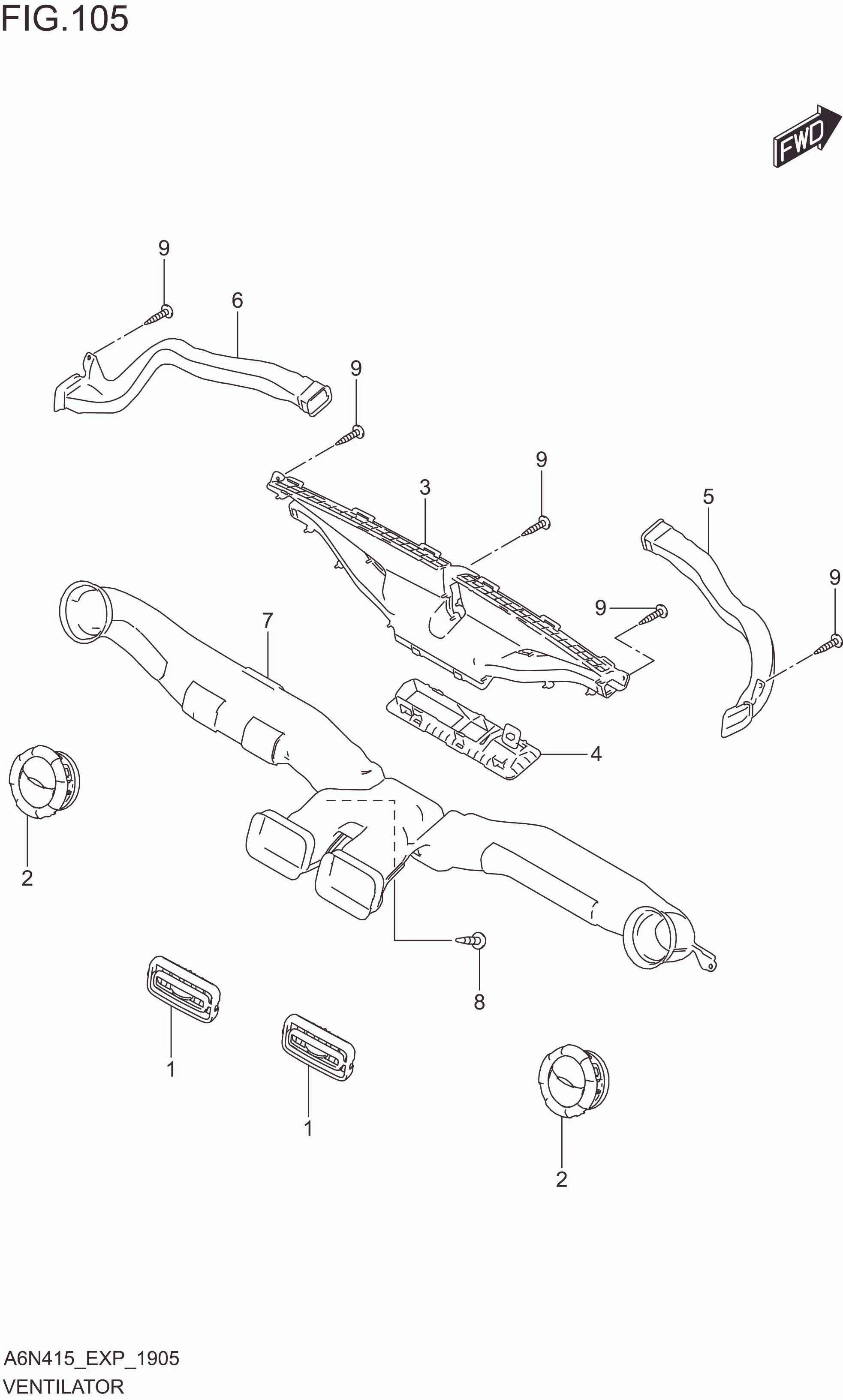

FIG. 105 VENTILATOR (RHD)

FIG. 105 VENTILATOR (RHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73611M80T10-AQS	LOUVER,CTR VENT (BLACK)	2	Rp51.500
2	73630M80T00-DLK	LOUVER, SIDE VENT (BLACK/SILVER)	2	Rp84.000
3	73661M80T00-000	NOZZLE,DFR	1	Rp103.500
4	73662M80T10-000	ADAPTER,DFR NOZZLE	1	Rp15.000
5	73681M80T00-000	DUCT,DEMISTER,R	1	Rp21.000
6	73691M80T00-000	DUCT,DEMISTER,L	1	Rp21.000
7	74620M80T00-000	DUCT, VENT	1	Rp187.500
8	03241M0512A-000	SCREW	1	Rp4.000
9	03541-0516A-000	SCREW	5	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
