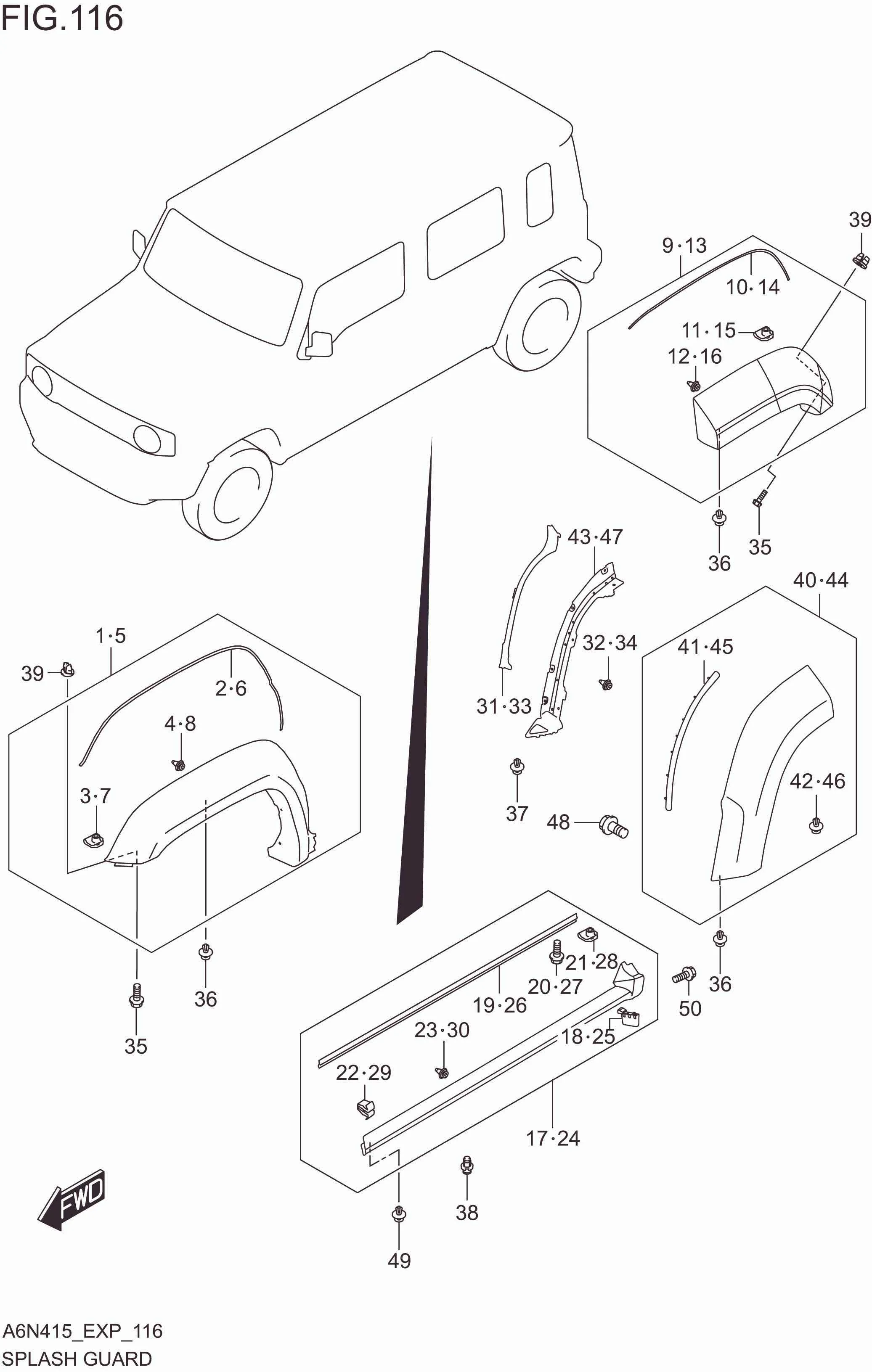

FIG. 116 SPLASH GUARD

No	No. Part	Description	Qty	Price Per Pcs
1	77510M73T00-5PK	GUARD, FR SPLASH RH (BLACK)	1	Rp487.000
2	77512-78R00-000	.PROTECTOR, FR FENDER SPLASH	1	Rp187.000
3	09148-06027-000	.NUT	1	Rp43.500
4	09409M10321-000	.CLIP	8	Rp5.000
5	77520M73T00-5PK	GUARD, FR SPLASH LH (BLACK)	1	Rp487.000
6	77512-78R00-000	.PROTECTOR, FR FENDER SPLASH	1	Rp187.000
7	09148-06027-000	.NUT	1	Rp43.500
8	09409M10321-000	.CLIP	8	Rp5.000
9	77530M80T00-5PK	GUARD ASSY,RR FENDER SPLASH,R (BLACK)	1	Rp217.500
10	77532M80T00-000	.PROTECTOR,RR FENDER SPLASH	1	Rp32.000
11	09148-06027-000	.NUT	1	Rp43.500
12	09409M10332-000	.CLIP	4	Rp6.000
13	77540M80T00-5PK	GUARD ASSY,RR FENDER SPLASH,L (BLACK)	1	Rp217.500
14	77532M80T00-000	.PROTECTOR,RR FENDER SPLASH	1	Rp32.000
15	09148-06027-000	.NUT	1	Rp43.500
16	09409M10332-000	.CLIP	4	Rp6.000
17	77550M80T00-5PK	GUARD ASSY,SIDE SILL SPLASH,R (BLACK)	1	Rp544.000
18	77535-78R00-000	.STRAKE,REAR,R	1	Rp135.500
19	77552M80T00-000	.PROTECTOR,SIDE SILL SPLASH	1	Rp49.000
20	09132-06022-000	.SCREW(6X20)	2	Rp23.000
21	09148-06027-000	.NUT,RR STRAKE	2	Rp43.500
22	09409-08351-000	.CLIP,SIDE SILL SPLASH	1	Rp21.000
23	09409M10332-000	.CLIP,SIDE SILL SPLASH	7	Rp6.000
24	77560M80T00-5PK	GUARD ASSY,SIDE SILL SPLASH,L (BLACK)	1	Rp544.000
25	77545-78R00-000	.STRAKE,REAR,L	1	Rp135.500
26	77552M80T00-000	.PROTECTOR,SIDE SILL SPLASH	1	Rp49.000
27	09132-06022-000	.SCREW(6X20)	2	Rp23.000
28	09148-06027-000	.NUT,RR STRAKE	2	Rp43.500
29	09409-08351-000	.CLIP,SIDE SILL SPLASH	1	Rp21.000
30	09409M10332-000	.CLIP,SIDE SILL SPLASH	7	Rp6.000
31	77570M80T00-5PK	PROTECTOR,RR WHEEL ARCH,R (BLACK)	1	Rp79.500
32	09409M10332-000	CLIP,RR WHEEL ARCH PROTECTER	1	Rp6.000
33	77580M80T00-5PK	PROTECTOR,RR WHEEL ARCH,L (BLACK)	1	Rp79.500
34	09409M10332-000	CLIP,RR WHEEL ARCH PROTECTER	1	Rp6.000
35	09132-06022-000	SCREW(6X20)	4	Rp23.000
36	09409M07356-000	CLIP,SPLASH GUARD	22	Rp2.000
37	09409M07356-000	CLIP,WHEEL ARCH PROTECTER	4	Rp2.000
38	09409M15307-000	CLIP,SPLASH GUARD	12	Rp3.500
39	71851M70F00-000	NUT,FENDER SPLASH	4	Rp4.000
40	77590M80T00-5PK	GUARD ASSY,REAR DOOR SPLASH,R (BLACK)	1	Rp237.000
41	77592M80T00-5PK	.PROTECTOR,REAR DOOR SPLASH (BLACK)	1	Rp45.000
42	09409M10332-000	.CLIP,SPLASH GUARD	4	Rp6.000
43	77595M80T00-000	HOLDER,RR DOOR SPLASH GUARD,R	1	Rp56.000
44	77690M80T00-5PK	GUARD ASSY,REAR DOOR SPLASH,L (BLACK)	1	Rp237.000
45	77592M80T00-000	.PROTECTOR,REAR DOOR SPLASH	1	Rp49.500
46	09409M10332-000	.CLIP,SPLASH GUARD	4	Rp6.000
47	77695M80T00-000	HOLDER,RR DOOR SPLASH GUARD,L	1	Rp56.000
48	09116M05026-000	SCREW,REAR DOOR SPLASH RR	8	Rp6.500
49	09409M07356-000	CLIP,SPLASH GUARD	6	Rp2.000
50	09128-06090-000	BOLT,SIDE SILL SPLASH	2	Rp19.000
