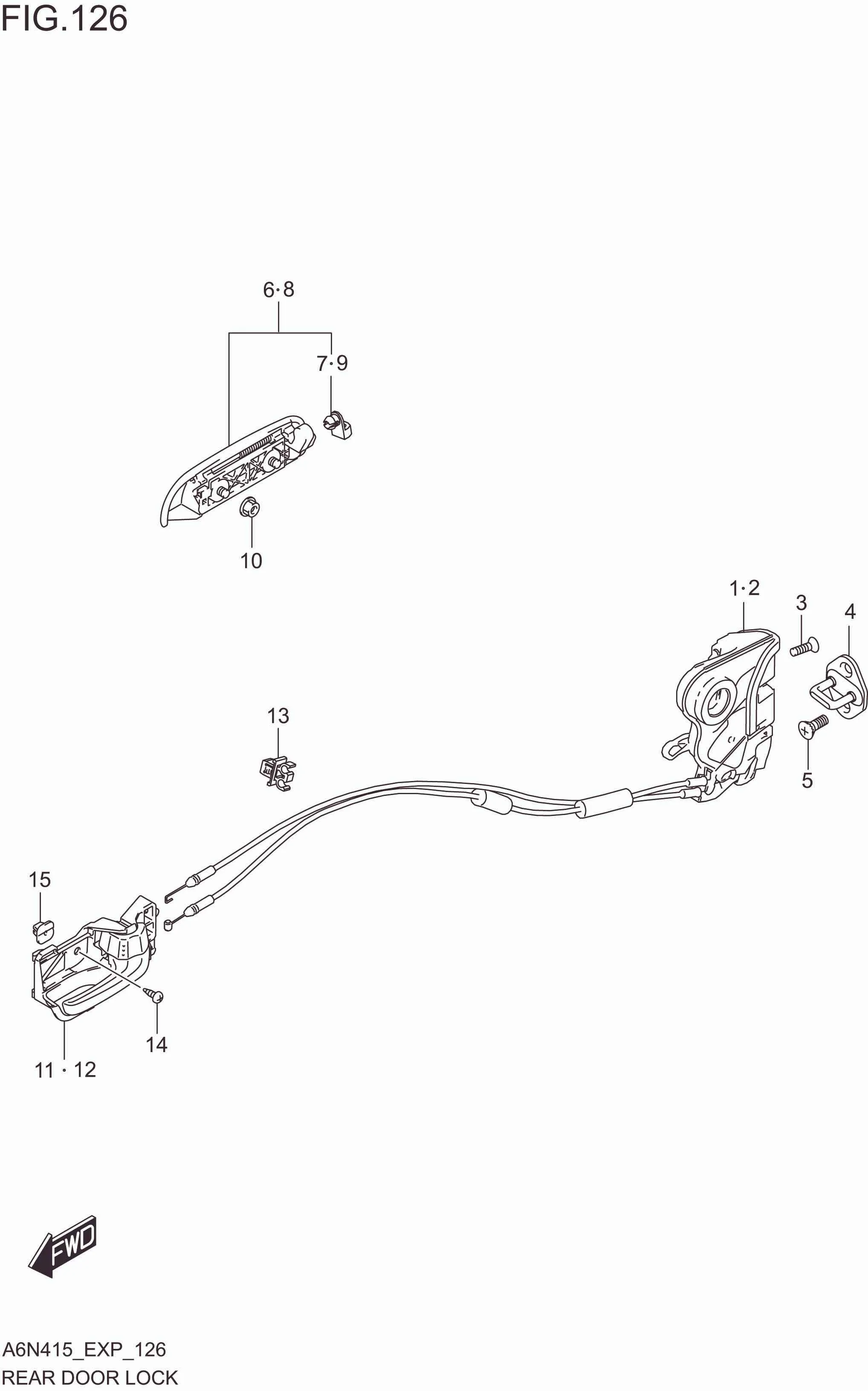

FIG. 126 REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1	82301M80T10-000	LATCH ASSY,REAR DOOR,RH	1	Rp473.500
2	82302M80T10-000	LATCH ASSY,REAR DOOR,LH	1	Rp473.500
3	09137-06032-000	SCREW (6X18)	6	Rp16.500
4	82610M76M01-000	STRIKER,DR LATCH	2	Rp27.000
5	09139-08025-000	SCREW (8X20)	4	Rp23.000
6-6	82801M69R50-WB3	HANDLE ASSY,FR DR OUT,RH (BLACK)	1	Rp139.000
6-8	82801M69R50-Z2S	HANDLE ASSY,FR DR OUT,RH (SILVER)	1	Rp149.000
6-7	82801M69R50-ZTN	HANDLE ASSY,FR DR OUT,RH (GRANITE GREY)	1	Rp149.000
6-7	82801M69R50-ZHJ	HANDLE ASSY,FR DR OUT,RH (WHITE)	1	Rp146.500
6-5	82801M69R50-WBH	HANDLE ASSY,FR DR OUT,RH(BLUE)	1	Rp139.000
6-4	82801M69R50-WA7	HANDLE ASSY,FR DR OUT,RH (GREEN)	1	Rp139.000
6-3	82801M69R50-WA6	HANDLE ASSY,FR DR OUT,RH (YELLOW)	1	Rp139.000
6-2	82801M69R50-WAZ	HANDLE ASSY,FR DR OUT,RH (CHIFFON IVORY)	1	Rp139.000
6-1	82801M69R50-WAA	HANDLE ASSY,FR DR OUT,RH(RED)	1	Rp139.000
7	82817M69R00-000	.SNAP,JOINT	1	-
8-1	82802M69R50-WAA	HANDLE ASSY,FR DR OUT,LH(RED)	1	Rp139.000
8-9	82802M69R50-Z2S	HANDLE ASSY,FR DR OUT,LH (SILVER)	1	Rp149.000
8-8	82802M69R50-ZTN	HANDLE ASSY,FR DR OUT,LH (GRANITE GREY)	1	Rp149.000
8-7	82802M69R50-ZHJ	HANDLE ASSY,FR DR OUT,LH (WHITE)	1	Rp146.500
8-6	82802M69R50-WB3	HANDLE ASSY,FR DR OUT,LH (BLACK)	1	Rp139.000
8-5	82802M69R50-WBH	HANDLE ASSY,FR DR OUT,LH(BLUE)	1	Rp139.000
8-4	82802M69R50-WA7	HANDLE ASSY,FR DR OUT,LH (GREEN)	1	Rp139.000
8-3	82802M69R50-WA6	HANDLE ASSY,FR DR OUT,LH (YELLOW)	1	Rp139.000
8-2	82802M69R50-WAZ	HANDLE ASSY,FR DR OUT,LH (CHIFFON IVORY)	1	Rp139.000
9	82827M69R00-000	.SNAP,JOINT	1	-
10	08316-1006A-000	NUT (6X12)	4	Rp2.000
11	83110M80T20-C48	HANDLE,DR INSIDE,RH (CHROME/BLACK)	1	Rp129.000
12	83130M80T20-C48	HANDLE,DR INSIDE,LH (CHROME/BLACK)	1	Rp129.000
13	83271M66R00-000	CLIP,DR INSIDE HANDLE CABLE	3	Rp6.500
14	09132-05058-000	SCREW (5X12)	2	Rp14.000
15	83119M75J00-000	NUT (M5)	2	Rp5.500
