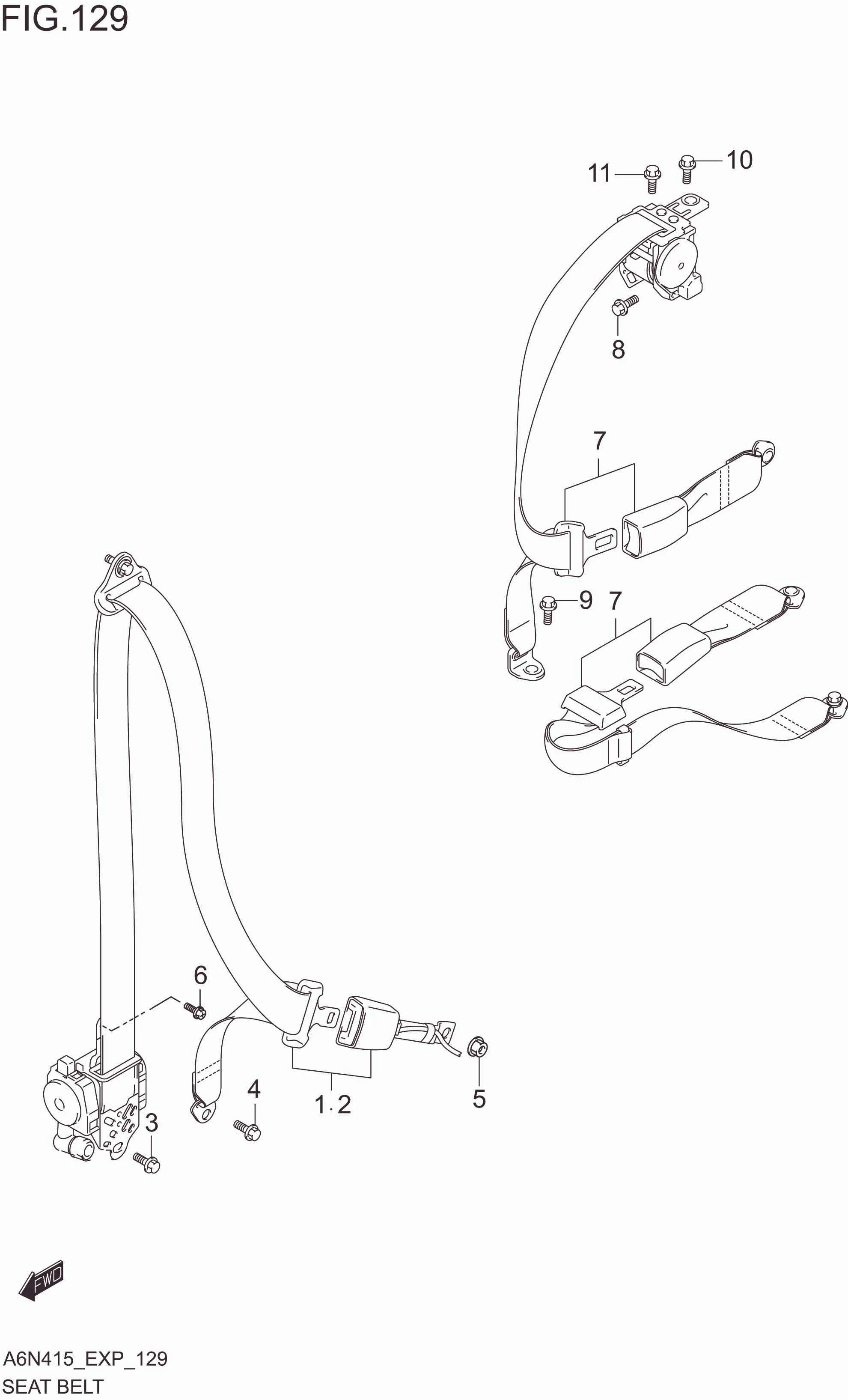

FIG. 129 SEAT BELT

FIG. 129 SEAT BELT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	84901M80T30-5PK	BELT ASSY,FR,R (BLACK)	1	Rp2.843.000
2	84902M80T10-5PK	BELT ASSY,FR,L (BLACK)	1	Rp2.843.000
3	09103M11002-000	BOLT(7/16X22)	2	Rp7.500
4	09111M11005-000	BOLT,BELT SHOULDER	2	Rp26.500
5	09159M11006-000	NUT,FR BUCKLE	2	Rp11.500
6	02162-0612A-000	BOLT(6X12)	2	Rp11.000
7	84904M80T30-5PK	BELT ASSY,RR (BLACK)	1	Rp1.585.500
8	09103M11002-000	BOLT(7/16X22)	2	Rp7.500
9	09103M11002-000	BOLT(7/16X22)	2	Rp7.500
10	09111M11005-000	BOLT,BELT SHOULDER	2	Rp26.500
11	02162-0612A-000	BOLT(6X12)	2	Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
