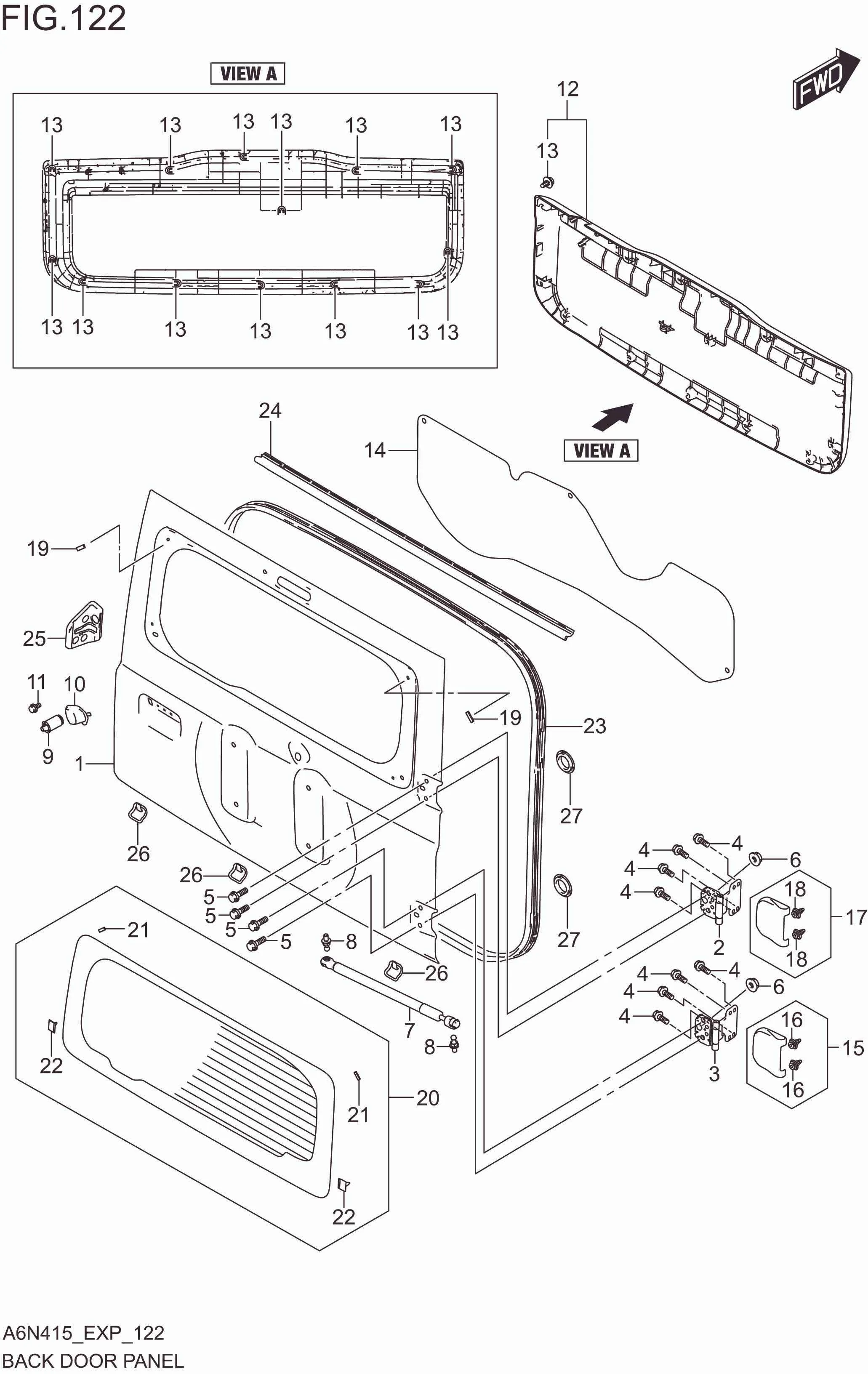

FIG. 122 BACK DOOR PANEL

FIG. 122 BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 69100-77R04-000 PANEL ASSY, BACK DOOR 1 Rp11.930.000
2 69510M80T00-000 HINGE, BACK DOOR UPPER 1 Rp361.500
3 69520M80T00-000 HINGE, BACK DOOR LOWER 1 Rp361.500
4 01550-0840A-000 BOLT (8X40) 8 Rp3.500
5 01551-0825B-000 BOLT, BACK DOOR HINGE DOOR 4 Rp22.000
6 08361-2508A-000 NUT 2 Rp16.500
7 81850M80T00-000 BALANCER,BACK DOOR 1 Rp302.000
8 81871M55T10-000 BALLSTUD,BACK DR BALANCER 2 Rp42.500
9 82683M72R00-000 CUSHION,BACK DR 1 Rp10.500
10 82761M80T00-000 STOPPER,BACK DOOR LOWER 1 Rp5.500
11 01551-0612C-000 BOLT 1 Rp18.000
12 83770M80T00-5PK TRIM,BACK DOOR (BLACK) 1 Rp290.500
13 09409M10321-000 .CLIP 13 Rp5.000
14 83913-77R01-000 COVER, BACK DOOR SEALING 1 Rp27.000
15 83940M80T00-000 COVER, BACK DR HINGE LOWER 1 Rp26.000
16 09409M06338-000 .CLIP 2 Rp3.000
17 83950M80T00-000 COVER, BACK DR HINGE UPPER 1 Rp30.000
18 09409M06338-000 .CLIP 2 Rp3.000
19 84515M65D10-000 FEMALE,GLASS FASTENER NO.2 2 Rp22.000
20 84570M80T00-000 GLASS, BACK DOOR WINDOW 1 Rp858.500
21 84513M75J00-000 .MALE,GLASS FASTENER NO.2 2 Rp8.500
22 84575M74L00-000 .CLIP,GLASS FASTENER 2 Rp16.000
23 84681M80T00-000 WEATHERSTRIP, BACK DOOR OPNG 1 Rp303.500
24 84682M80T00-000 WEATHERSTRIP, BACK DOOR UPPER 1 Rp138.500
25 84683M80T00-000 DRIP, BACK DOOR LATCH 1 Rp26.500
26 83994M72R00-000 CAP,BACK DR DRAIN HOLE 3 Rp7.000
27 09250M30011-000 CAP (OD:38.5) 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
