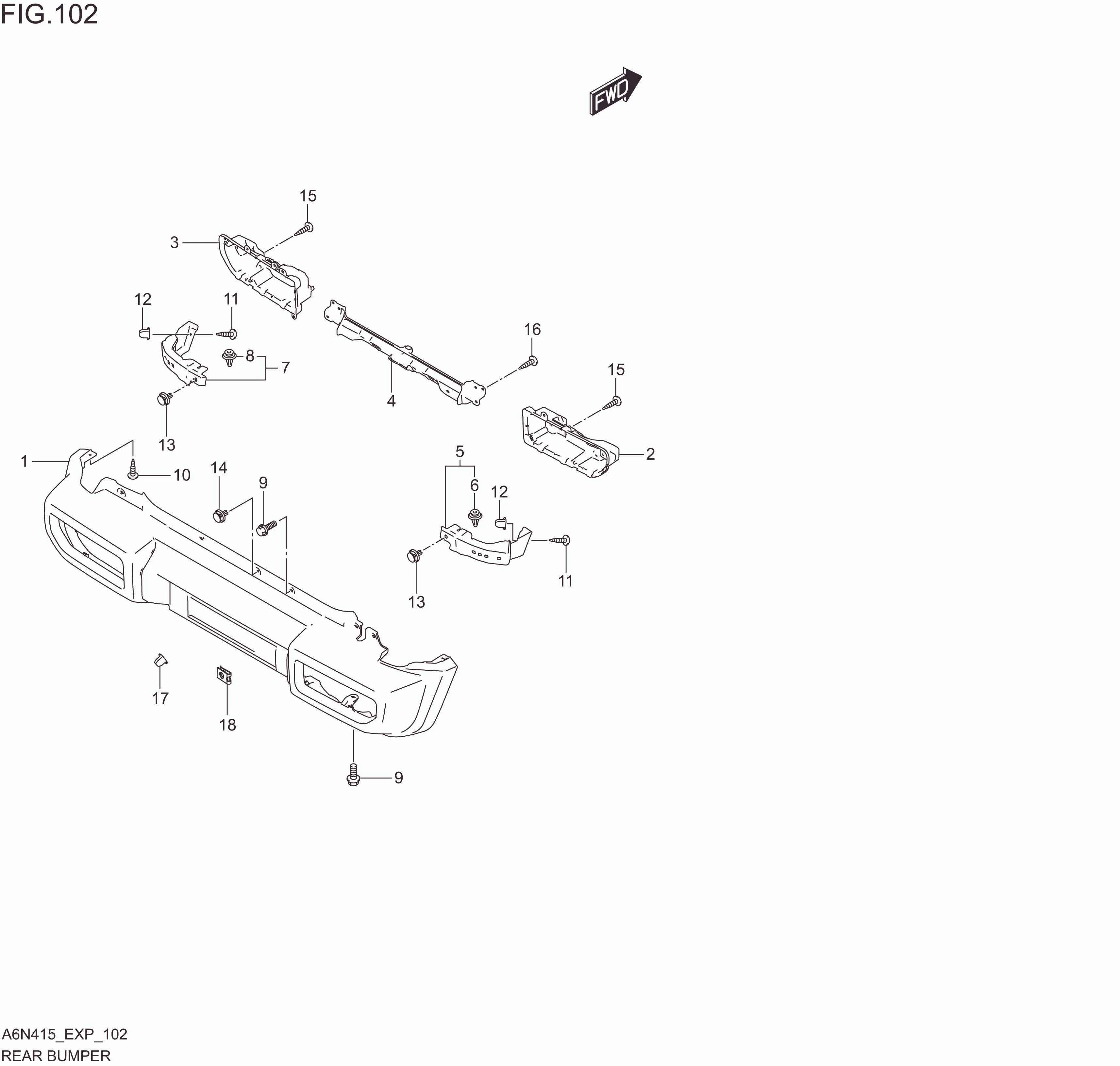

FIG. 102 REAR BUMPER

FIG. 102 REAR BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71811M80T10-5PK	BUMPER,REAR (BLACK)	1	Rp677.000
2	71812M80T00-000	COVER,REAR COMB LAMP,R	1	Rp76.000
3	71813M80T00-000	COVER,REAR COMB LAMP,L	1	Rp76.000
4	71814M80T10-000	BRACKET,LICENSE LAMP	1	Rp65.500
5	71820M80T00-000	HOLDER ASSY,RR BUMPER SIDE,R	1	Rp44.500
6	09409M10332-000	.CLIP	1	Rp6.000
7	71830M80T00-000	HOLDER ASSY,RR BUMPER SIDE,L	1	Rp44.500
8	09409M10332-000	.CLIP	1	Rp6.000
9	09111-06252-000	BOLT,REAR BUMPER	6	Rp24.500
10	09132-06022-000	SCREW6X20)	2	Rp23.000
11	09132-06022-000	SCREW (6X20)	2	Rp23.000
12	71851M70F00-000	NUT (M6)	2	Rp4.000
13	09409M07356-000	CLIP (6.8X11.5)	2	Rp2.000
14	09409M08006-000	CLIP,REAR BUMPER	1	Rp5.000
15	03541-0516A-000	SCREW,RR COMB LAMP COVER	6	Rp3.500
16	03541-0516A-000	SCREW,LICENSE LAMP BRACKET	5	Rp3.500
17	75115M73T00-000	SEAL,REAR BUMPER CLIP	1	Rp2.500
18	08315-11069-000	NUT,LICENSE PLATE	2	Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
