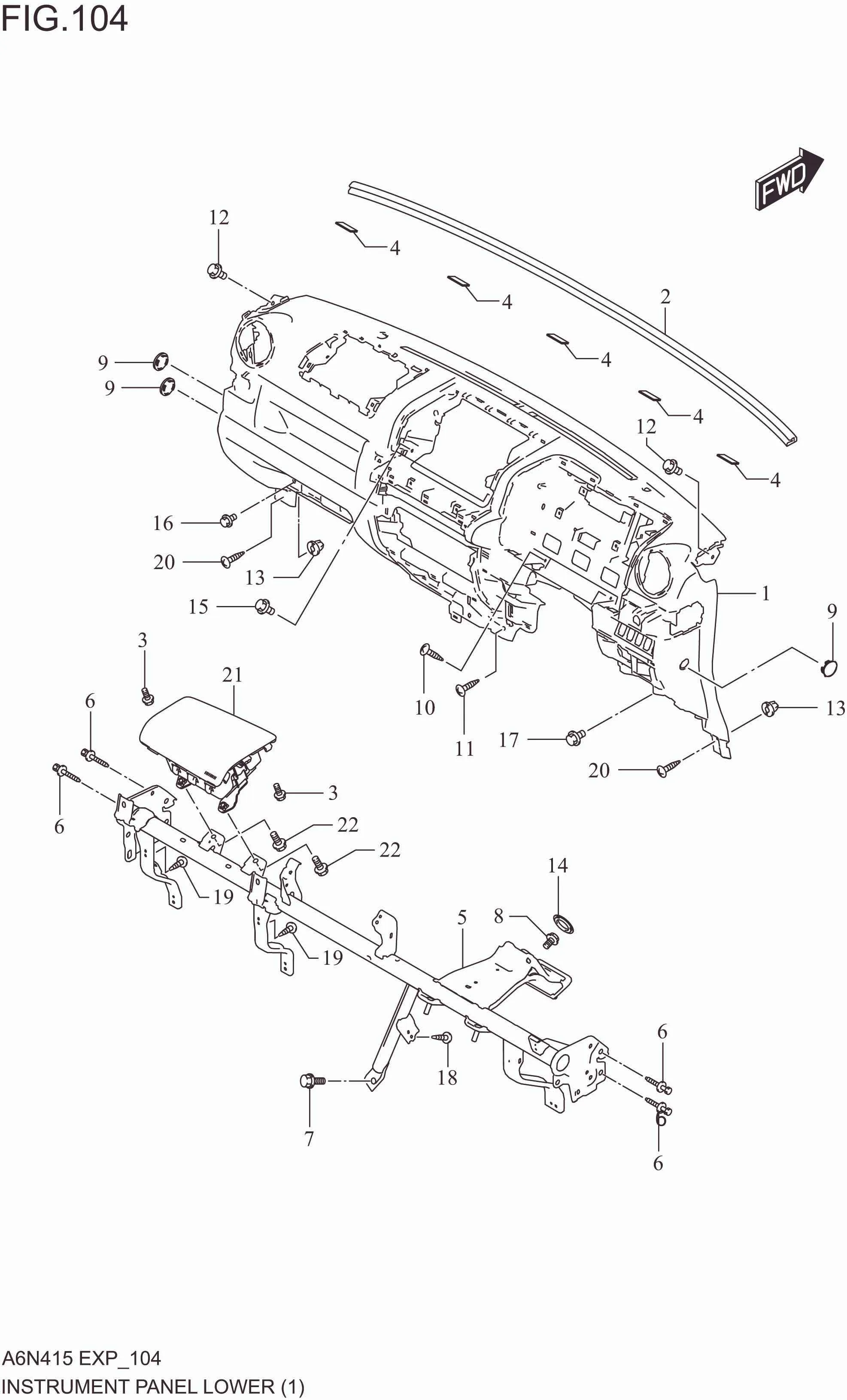

FIG. 104 INSTRUMENT PANEL LOWER (RHD)

FIG. 104 INSTRUMENT PANEL LOWER (RHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73111M80T00-5PK	PANEL,INSTRUMENT MAIN (BLACK)	1	Rp669.000
2	73114M50M00-000	SILENCER,I/P TOP	1	Rp33.000
3	02162-0616A-000	SCREW (6X16)	2	Rp3.000
4	73123-82M00-000	FELT	5	Rp19.500
5	73200M80T00-000	MEMBER,STEERING SUPPORT	1	Rp681.000
6	73291-50G20-000	BOLT,STRG SUPPORT MEMBER SIDE	4	Rp42.500
7	73291-52R00-000	BOLT,COWL UPPER	1	Rp19.500
8	73291-52R00-000	BOLT,I/P BRACE	1	Rp19.500
9	73871M73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp5.000
10	09132M05067-000	SCREW,I/P METER HOLE	2	Rp12.500
11	09132M05067-000	SCREW,I/P CENTER LOWER	1	Rp12.500
12	09138M06054-000	BOLT	2	Rp5.000
13	09148-05018-000	NUT (M5)	2	Rp11.500
14	09250M30011-000	CAP (OD:38.5)	1	Rp4.500
15	02162-0616A-000	SCREW (6X16)	2	Rp3.000
16	02162-0616A-000	SCREW (6X16)	2	Rp3.000
17	02162-0616A-000	SCREW (6X16)	1	Rp3.000
18	03541-0516A-000	SCREW	1	Rp3.500
19	03541-0516A-000	SCREW	2	Rp3.500
20	03541-0516A-000	SCREW	2	Rp3.500
21	73910M80T00-5PK	MDL ASSY,PASS AIRBAG (BLACK)	1	Rp2.714.500
22	01551-0816C-000	BOLT(8X16)	2	Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
