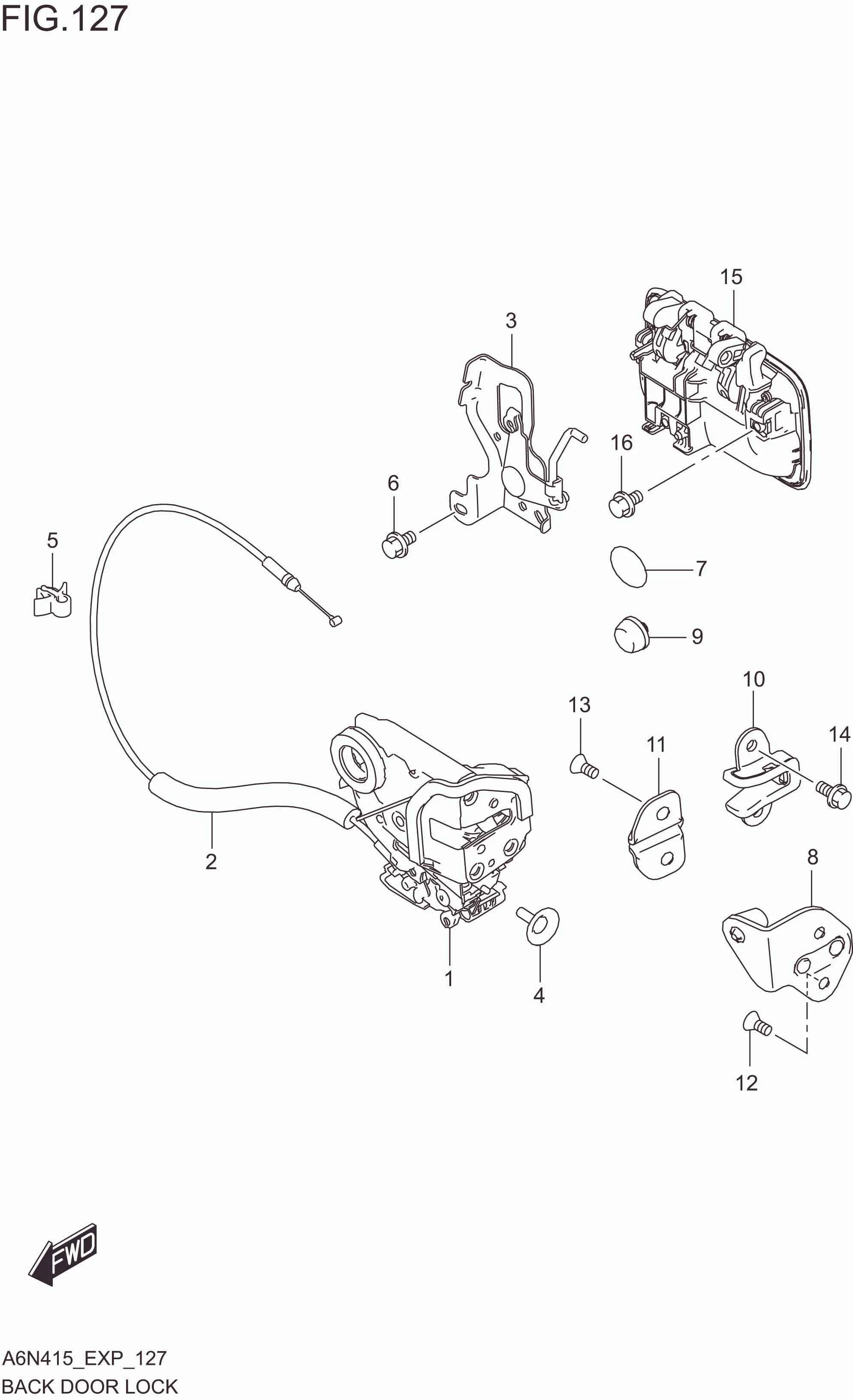

FIG. 127 BACK DOOR LOCK

FIG. 127 BACK DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82510-77R10-000 LATCH ,BACK DOOR 1 Rp1.004.500
2 82523-77R00-000 CABLE,BK DR OUTSIDE HDL 1 Rp103.500
3 82520M80T00-000 LINK, BACK DOOR LATCH 1 Rp76.500
4 82581-77R00-000 SCREW,BACK DOOR LATCH 3 Rp26.000
5 09403M04405-000 CLAMP (D:4.8) 1 Rp3.500
6 02162-0612A-000 SCREW (6X12) 1 Rp11.000
7 77191M80T00-000 FILM,BACK DOOR CUSHION 1 Rp9.500
8 82650-77R00-000 STRIKER, BACK DOOR LATCH 1 Rp256.500
9 82720M80T00-000 EXTENSION,BACK DOOR SWITCH 1 Rp6.500
10 82771M80T00-000 FEMALE,BACK DOOR STOP DOOR 1 Rp32.000
11 82772M80T00-000 MALE,BACK DOOR STOP BODY 1 Rp19.500
12 09139-08026-000 SCREW (8X20) 2 Rp24.500
13 09139-08026-000 SCREW (8X20) 2 Rp24.500
14 01551-0816C-000 BOLT 2 Rp13.500
15-1 82850M80T10-WAA HANDLE ASSY,BACK DOOR (RED) 1 Rp283.000
15-2 82850M80T10-WAZ HANDLE ASSY,BACK DOOR (CHIFFON IVORY) 1 Rp283.000
15-3 82850M80T10-WA6 HANDLE ASSY,BACK DOOR (YELLOW) 1 Rp283.000
15-4 82850M80T10-WA7 HANDLE ASSY,BACK DOOR (GREEN) 1 Rp283.000
15-5 82850M80T10-WBH HANDLE ASSY,BACK DOOR (BLUE) 1 Rp283.000
15-6 82850M80T10-WB3 HANDLE ASSY,BACK DOOR (BLACK) 1 Rp283.000
15-7 82850M80T10-ZHJ HANDLE ASSY,BACK DOOR (WHITE) 1 Rp283.000
15-8 82850M80T10-ZTN HANDLE ASSY,BACK DOOR (GRANITE GREY) 1 Rp283.000
15-9 82850M80T10-Z2S HANDLE ASSY,BACK DOOR (SILVER) 1 Rp283.000
16 02162-0612A-000 SCREW (6X12) 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
