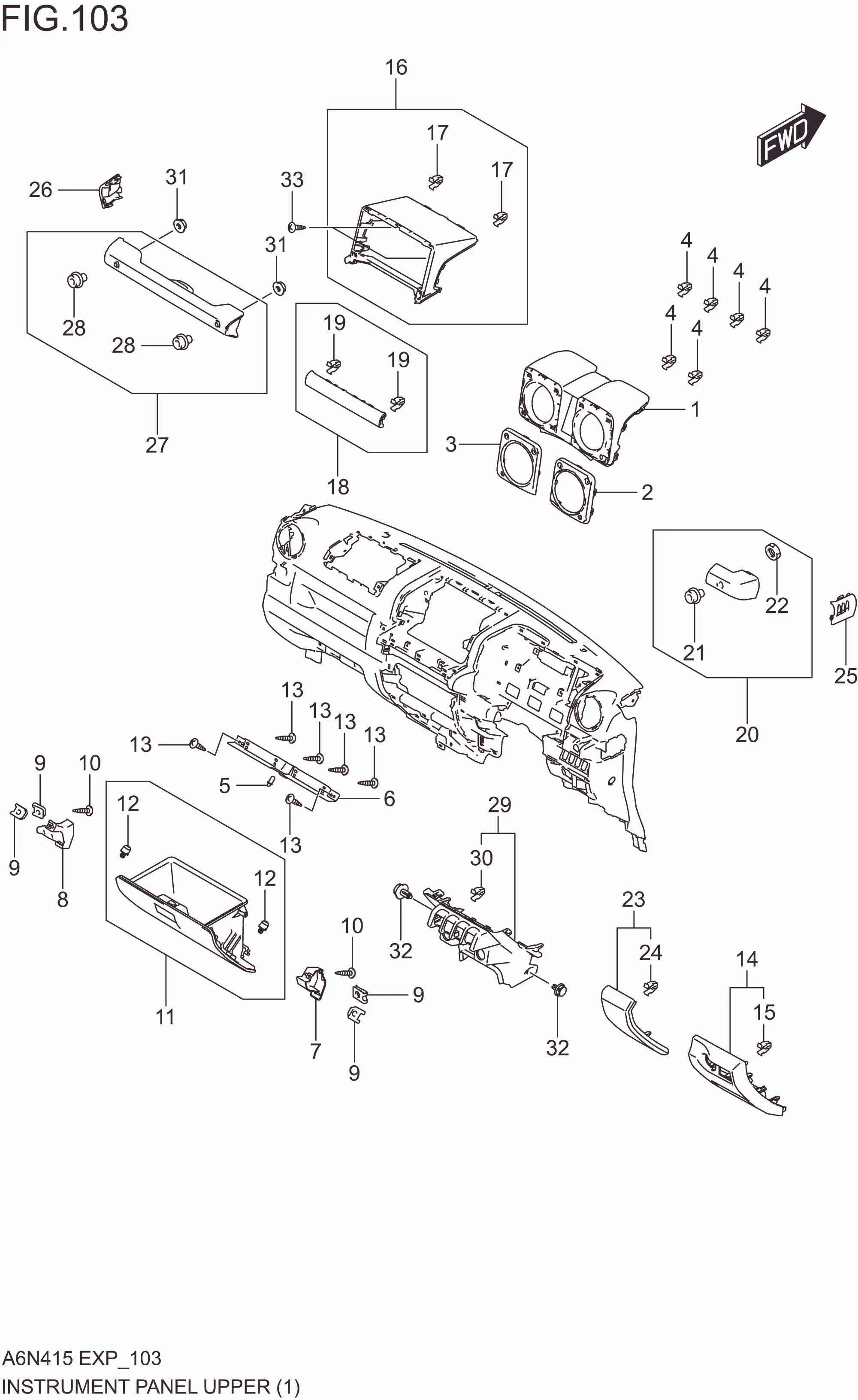

FIG. 103 INSTRUMENT PANEL UPPER(RHD)

FIG. 103 INSTRUMENT PANEL UPPER(RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 73311M80T00-5PK PANEL,INSTRUMENT CLUSTER(BLACK) 1 Rp90.500
2 73312M80T00-W9K GARNISH,INSTRUMENT CLUSTER,R(BLACK) 1 Rp157.000
3 73313M80T00-W9K GARNISH,INSTRUMENT CLUSTER,L(BLACK) 1 Rp157.000
4 09409-08351-000 CLIP 6 Rp21.000
5 73461-77R00-000 CUSHION,GLOVE BOX 1 Rp33.500
6 73470-77R00-000 STRIKER, GLOVE BOX UPPER 1 Rp186.500
7 73481-77R00-000 REINF,GLOVE BOX INSIDE 1 Rp93.000
8 73482-77R00-000 REINF,GLOVE BOX OUTSIDE 1 Rp232.000
9 09148M05L04-000 NUT (M5) 4 Rp5.000
10 03541-0516A-000 SCREW 2 Rp3.500
11 73410M80T00-5PK BOX, GLOVE (BLACK) 1 Rp294.500
12 73461-54M00-000 .CUSHION 2 Rp32.000
13 03541-0516A-000 SCREW 6 Rp3.500
14 73811M80T00-5PK COVER,I/P DRVR LOWER OUTSIDE(BLACK) 1 Rp64.500
15 09409-08351-000 .CLIP 1 Rp21.000
16 73822M80T00-5PK BASE,I/P CENTER GARNISH (BLACK) 1 Rp64.500
17 09409-08352-000 .CLIP 2 Rp19.000
18 73824M80T00-5PK CAP,I/P CENTER (BLACK) 1 Rp16.500
19 09409-08352-000 .CLIP 2 Rp19.000
20 73831M80T00-5PK GARNISH,I/P DRVR UPPER OUTSIDE (BLACK) 1 Rp19.500
21 73291M80T00-000 .SCREW,GRIP 1 Rp2.500
22 08310-0008A-000 .NUT 1 Rp12.500
23 73832M80T00-5PK COVER,I/P DRVR LOWER INSIDE (BLACK) 1 Rp28.500
24 09409-08351-000 .CLIP 1 Rp21.000
25 73833M80T00-5PK GARNISH,DEMISTER,R (BLACK) 1 Rp8.000
26 73834M80T00-5PK GARNISH,DEMISTER,L (BLACK) 1 Rp8.000
27 73850M80T00-5PK GRIP, I/P,L (BLACK) 1 Rp559.000
28 73291M80T00-000 .SCREW,GRIP 2 Rp2.500
29 73891M80T00-5PK GARNISH,I/P CENTER LWR (BLACK) 1 Rp82.000
30 09409-08352-000 .CLIP 1 Rp19.000
31 09159M08152-000 NUT (M8) 2 Rp14.000
32 09409M07356-000 CLIP (6.8X11.5) 2 Rp2.000
33 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
