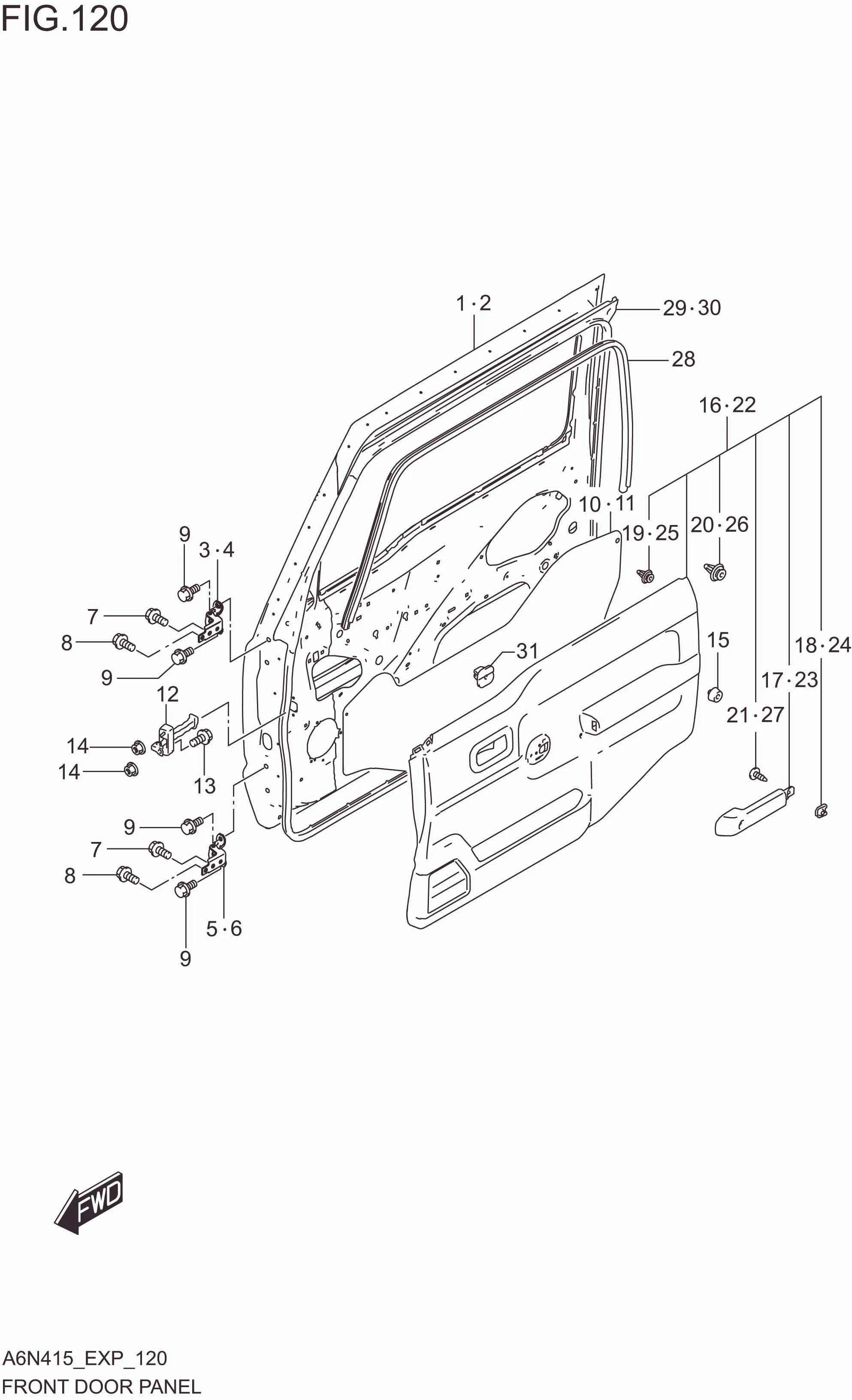

FIG. 120 FRONT DOOR PANEL

FIG. 120 FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001M80T00-000 PANEL ASSY,FRONT DOOR,R 1 Rp4.743.000
2 68002M80T00-000 PANEL ASSY,FRONT DOOR,L 1 Rp4.743.000
3 69310M82S00-000 HINGE, FRONT DOOR NO.1 1 Rp61.500
4 69320M82S00-000 HINGE, FRONT DOOR NO.2 1 Rp61.500
5 69320M82S00-000 HINGE, FRONT DOOR NO.2 1 Rp61.500
6 69310M82S00-000 HINGE, FRONT DOOR NO.1 1 Rp61.500
7 09113M08008-000 BOLT (8X20) 4 Rp5.500
8 01551-0820A-000 BOLT 4 Rp17.500
9 09103M08557-000 BOLT,FRONT DOOR HINGE DOOR 8 Rp8.500
10 83911M80T00-000 COVER,FRONT DOOR SEALING,R 1 Rp13.500
11 83912M80T00-000 COVER,FRONT DOOR SEALING,L 1 Rp13.500
12 81810M80T00-000 STOP,FRONT DOOR OPEN 2 Rp135.500
13 09112-08015-000 BOLT (8X25) 2 Rp32.000
14 08316-1006A-000 NUT (6X12) 4 Rp2.000
15 82711-51K00-000 STOPPER,DR 4 Rp39.000
16 83710M80T00-5PK TRIM, FRONT DOOR,R (BLACK) 1 Rp667.500
17 83718M80T00-5PK .GRIP,FRONT DOOR,R (BLACK) 1 Rp63.500
18 09148M05L04-000 .NUT (M5) 1 Rp5.000
19 09409M07352-000 .CLIP,RR DR INR GARNISH NO.2 1 Rp2.000
20 09409M10321-000 .CLIP 9 Rp5.000
21 03241M0512A-000 .SCREW 3 Rp4.000
22 83720M80T00-5PK TRIM, FRONT DOOR,L (BLACK) 1 Rp667.500
23 83728M80T00-5PK .GRIP,FRONT DOOR,L (BLACK) 1 Rp63.500
24 09148M05L04-000 .NUT (M5) 1 Rp5.000
25 09409M07352-000 .CLIP,RR DR INR GARNISH NO.2 1 Rp2.000
26 09409M10321-000 .CLIP 9 Rp5.000
27 03241M0512A-000 .SCREW 3 Rp4.000
28 76291M80T00-000 TRIM,FRONT DOOR OPENING 2 Rp105.500
29 84641M80T00-000 WEATHERSTRIP,FRONT DOOR OPNG,R 1 Rp402.500
30 84651M80T00-000 WEATHERSTRIP,FRONT DOOR OPNG,L 1 Rp402.500
31 83119M75J00-000 NUT,DOOR TRIM 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
