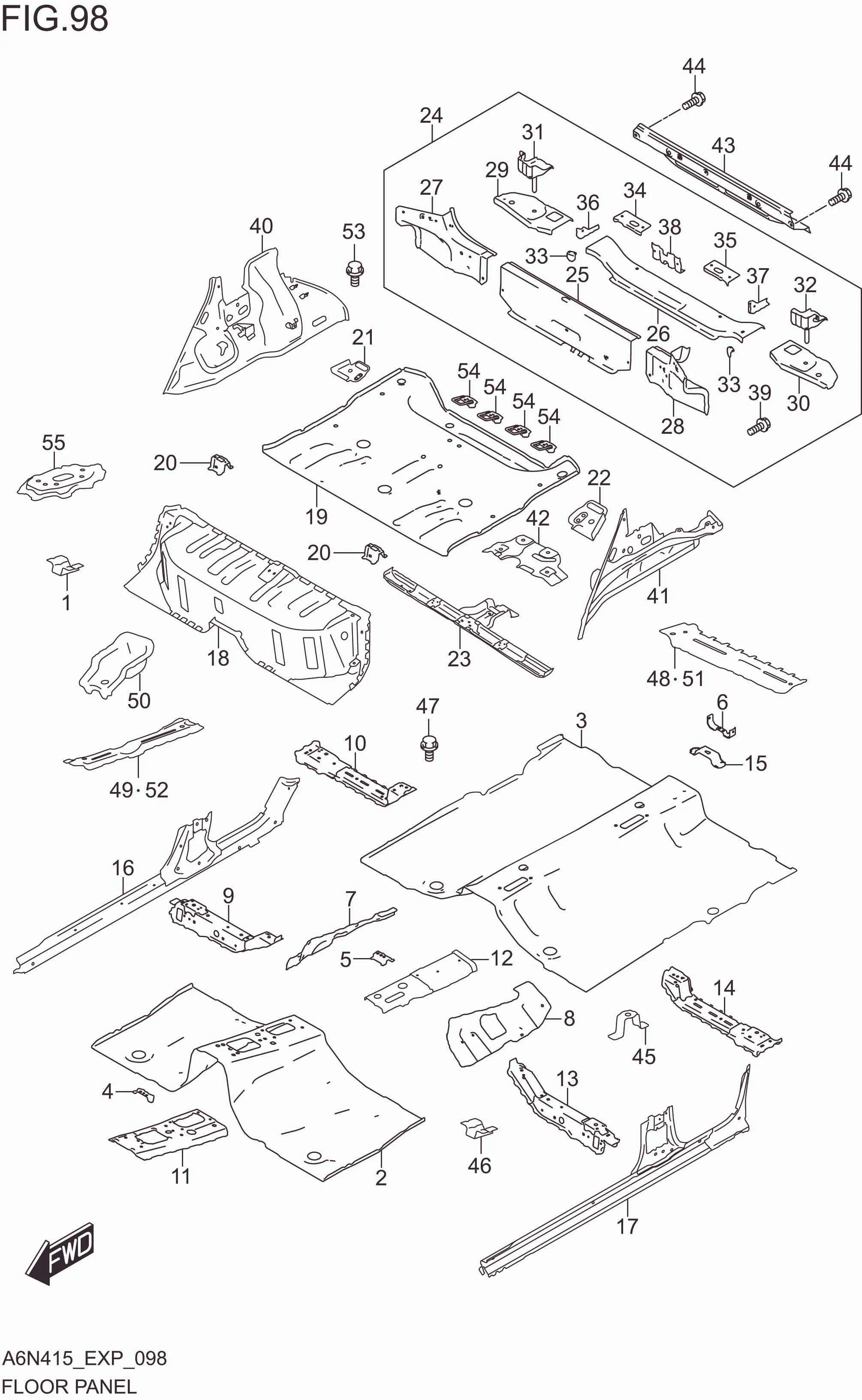

FIG. 098 FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	58232-60B00-000	BRACKET,HARNESS	1	Rp8.500
2	61511M78R01-000	PANEL,MAIN FLOOR FR	1	Rp839.500
3	61512M80T00-000	PANEL,MAIN FLOOR RR	1	Rp849.500
4	61513-78R00-000	BRACKET,FRONT CONSOLE	1	Rp241.500
5	61514-78R00-000	BRACKET,REAR CONSOLE FRONT	1	Rp257.500
6	61515-78R00-000	BRACKET,REAR CONSOLE REAR	1	Rp257.500
7	61516-78R00-000	REINF,MAIN FLOOR,RH	1	Rp382.000
8	61517-78R00-000	REINF,MAIN FLOOR,LH	1	Rp382.000
9	61520-78R00-000	CROSSMEMBER, FR SEAT FR,RH	1	Rp694.000
10	61530M80T00-000	CROSSMEMBER, FR SEAT RR,RH	1	Rp242.000
11-1	61541M78R01-000	REINF,SHIFT LEVER	1	Rp247.500
11-2	61541M78R12-000	REINF,SHIFT LEVER	1	Rp247.500
12	61550M80T00-000	REINF, PARKING BRAKE LEVER	1	Rp259.500
13	61570-78R00-000	CROSSMEMBER, FR SEAT FR,LH	1	Rp694.000
14	61580M80T00-000	CROSSMEMBER,FR SEAT RR,LH	1	Rp242.000
15	65514-57L00-000	BRACKET,KEYLESS ANTENNA	1	Rp37.500
16	61610M80T00-000	PANEL,SIDE SILL INR,RH	1	Rp1.062.000
17	61660M80T00-000	PANEL, SIDE SILL INR FR,LH	1	Rp1.062.000
18	61700M80T00-000	PANEL, CENTER FLOOR	1	Rp1.928.500
19	62111M80T00-000	PANEL,REAR FLOOR	1	Rp1.288.500
20	62112-78R00-000	BRACKET,RR SEAT CUSHION	2	Rp216.000
21	62113M80T00-000	REINF,SEAT BACK HNG SIDE RR,RH	1	Rp32.000
22	62114M80T00-000	REINF,SEAT BACK HNG SIDE RR,LH	1	Rp32.000
23	62120M80T00-000	CROSSMEMBER, REAR FLOOR	1	Rp659.500
24	62130M80T00-000	MEMBER COMP,TAIL INNER	1	Rp1.474.000
25	62131M80T00-000	.MEMBER,TAIL INNER UPPER	1	Rp247.500
26	62132-78R00-000	.MEMBER,TAIL INNER LOWER	1	Rp761.000
27	62133M80T00-000	.EXTENSION,BK PILLAR CORNER,RH	1	Rp355.500
28	62134M80T00-000	.EXTENSION,BK PILLAR CORNER,LH	1	Rp355.500
29	62135-78R00-000	.MEMBER,TAIL INNER LOWER,RH	1	Rp221.500
30	62136-78R00-000	.MEMBER,TAIL INNER LOWER,LH	1	Rp221.500
31	62137M80T00-000	.REINF,4TH MOUNTING,RH	1	Rp113.500
32	62138M80T00-000	.REINF,4TH MOUNTING,LH	1	Rp113.500
33	62139M80T00-000	.BRACKET,SPACER	2	Rp17.500
34	62167-78R00-000	.REINF,TAIL INNER UPPER,RH	1	Rp141.000
35	62168-78R00-000	.REINF,TAIL INNER UPPER,LH	1	Rp141.000
36	62172-78R00-000	.BRACE,TAIL INNER MBR,RH	1	Rp160.500
37	62173-78R00-000	.BRACE,TAIL INNER MBR,LH	1	Rp160.500
38	62174-78R00-000	.REINF,TAIL INNER MEMBER	1	Rp196.000
39	09119-05018-000	.BOLT,RR FENDER LINING	2	Rp13.000
40	62140M80T00-000	PANEL, WHEEL HOUSE INNER,RH	1	Rp715.000
41	62150M80T00-000	PANEL, WHEEL HOUSE INNER,LH	1	Rp715.000
42	62191M80T00-000	REINF, REAR FLOOR	1	Rp89.000
43	62511M78R10-000	MEMBER,TAIL OUTER	1	Rp383.000
44	01550-0610B-000	BOLT (6X10)	2	Rp3.000
45	61518M80T00-000	BRACKET,SIDE SILL SCUFF	2	Rp7.500
46	61519M80T00-000	BRACKET,PARKING CABLE,RH	1	Rp15.000
47	09119-05018-000	BOLT,UNDER COVER	5	Rp13.000
48	61542M80T00-000	CROSSMEMBER,MAIN FLOOR RR,RH	1	Rp109.000
49	61543M80T00-000	REINF,MAIN FLOOR RR,RH	1	Rp59.500
50	61544M80T00-000	REINF,MAIN FLOOR PROTECTOR	2	Rp69.500
51	61592M80T00-000	CROSSMEMBER,MAIN FLOOR RR,LH	1	Rp109.000
52	61593M80T00-000	REINF,MAIN FLOOR RR,LH	1	Rp59.500
53	09119-05018-000	BOLT,HARNESS	2	Rp13.000
54	62160M80T00-000	STRIKER, CHILD ANCHOR	4	Rp49.000
55	61518-78R00-000	BRACKET,FIRE EXTINGUISHER	1	Rp321.500
