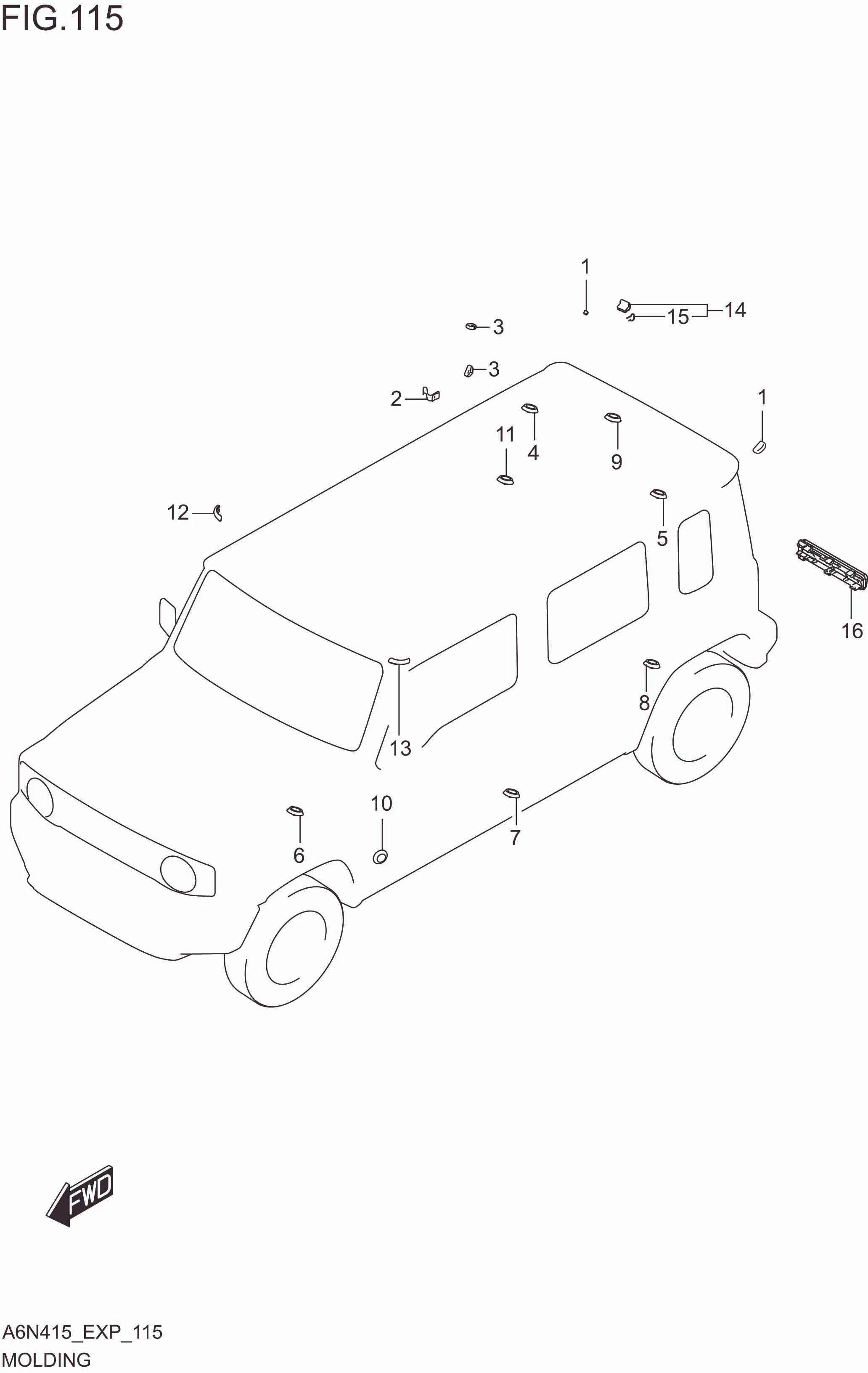

FIG. 115 MOLDING

FIG. 115 MOLDING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	44281-29C00-000	CUSHION	3	Rp6.000
2	77111M81A20-000	SPRING,FUEL LID	1	Rp14.000
3	77116M74L00-000	CUSHION	2	Rp5.500
4	09250M10034-000	CAP,BACK PILLAR OUTER	6	Rp1.500
5	09250M15024-000	CAP,SIDE BODY OUTER RR	2	Rp7.500
6	09250M15024-000	CAP,SIDE BODY OUTER FR	2	Rp7.500
7	09250M15024-000	CAP,SIDE SILL FR	2	Rp7.500
8	09250M15024-000	CAP,RR WHL HOUSE OUTER	6	Rp7.500
9	09250M15024-000	CAP,TAIL OUTER	2	Rp7.500
10	09250M17010-000	CAP,SIDE BODY OUTER FR	2	Rp7.500
11	09250M30011-000	CAP(OD:38.5)	2	Rp4.500
12	77141M78R02-5PK	CAP,ROOF SIDE DRIP FR,R (BLACK)	1	Rp62.500
13	77142-78R02-5PK	CAP,ROOF SIDE DRIP FR,L (BLACK)	1	Rp62.500
14	77144-78R00-5PK	CAP,ROOF SIDE DRIP RR (BLACK)	2	Rp135.500
15	77145M78R00-000	.CLIP	2	-
16	77330-78R00-000	OUTLET,VENTILATOR	2	Rp221.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
