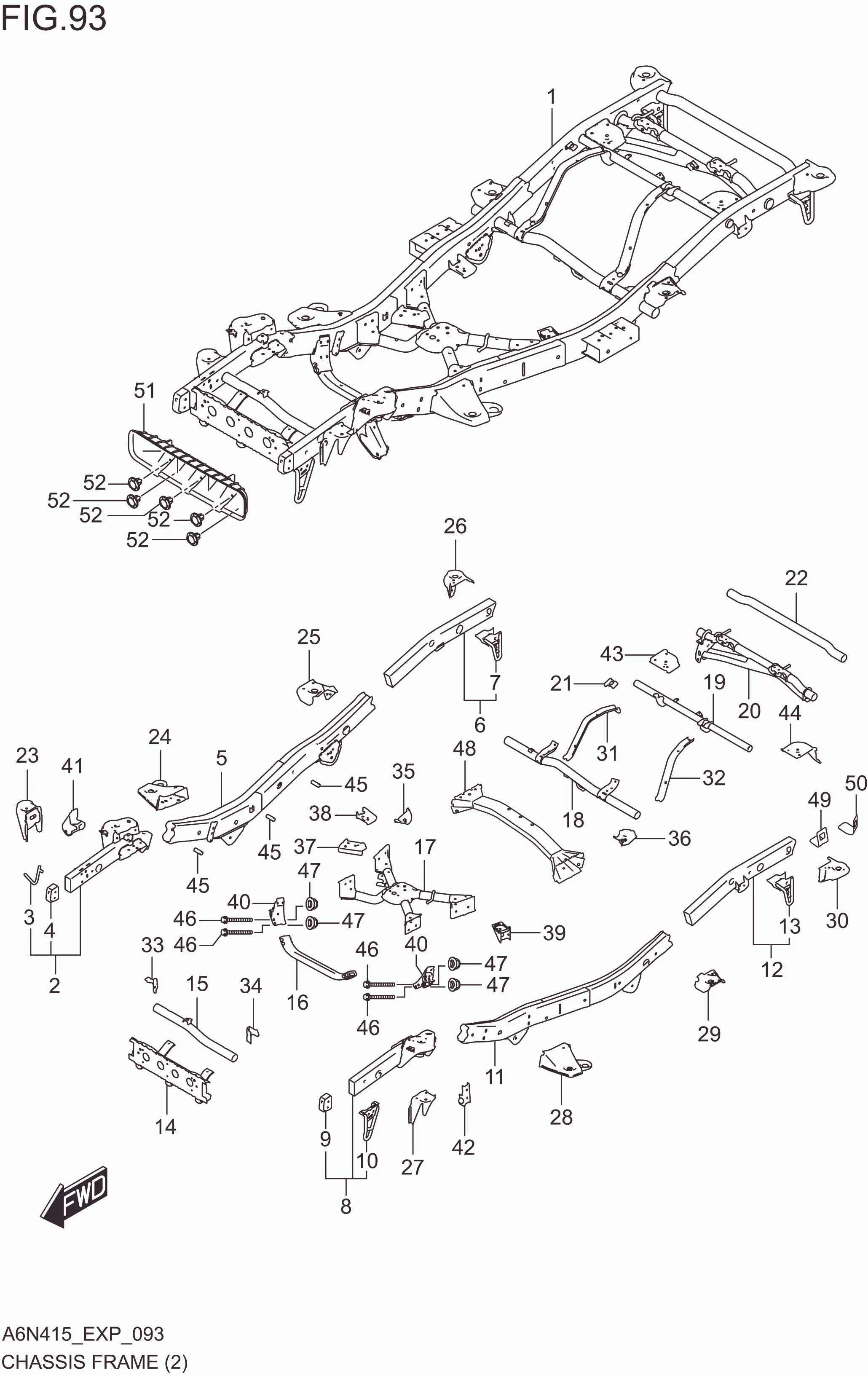

FIG. 093 CHASSIS FRAME(RHD)

No	No. Part	Description	Qty	Price Per Pcs
1	57000M80T20-000	FRAME ASSY	1	Rp18.063.500
2	57110M80T00-000	.MEMBER, FRAME FRONT,RH	1	Rp2.229.000
3	57115-78R00-000	..HOOK,TOWING FRONT,RH	1	Rp373.000
4	57140-78R00-000	..EXTENSION, FRONT FRAME	1	Rp369.000
5	57120M80T00-000	.MEMBER, FRAME CTR,RH	1	Rp2.835.500
6	57130M80T00-000	.MEMBER, FRAME REAR,RH	1	Rp1.586.500
7	57920M80T00-000	..HOOK, TOWING REAR	1	Rp247.500
8	57160M80T00-000	.MEMBER, FRAME FRONT,LH	1	Rp2.229.000
9	57140-78R00-000	..EXTENSION, FRONT FRAME	1	Rp369.000
10	57910M80T00-000	..HOOK, TOWING FRONT,LH	1	Rp373.000
11	57170M80T00-000	.MEMBER, FRAME CTR,LH	1	Rp2.835.500
12	57180M80T00-000	.MEMBER, FRAME REAR,LH	1	Rp1.586.500
13	57920M80T00-000	..HOOK, TOWING REAR	1	Rp247.500
14	57210M80T00-000	.CROSSMEMBER, 1ST	1	Rp1.049.000
15	57220-78R00-000	.CROSSMEMBER, 2ND	1	Rp828.000
16	57230-78R00-000	.CROSSMEMBER, 3RD	1	Rp1.392.500
17	57240M80T00-000	.CROSSMEMBER, 4TH	1	Rp1.684.000
18	57250M80T00-000	.CROSSMEMBER, 5TH	1	Rp802.500
19	57260M80T00-000	.CROSSMEMBER, 6TH	1	Rp538.500
20	57270M80T00-000	.CROSSMEMBER, 7TH	1	Rp1.728.500
21	57279-78R00-000	.BRACKET,BRAKE FLEXIBLE HOSE	1	Rp218.500
22	57281-78R00-000	.CROSSMEMBER,8TH	1	Rp1.167.000
23	57310-78R00-000	.BRACKET, 1ST MOUNTING,RH	1	Rp572.500
24	57320-78R00-000	.BRACKET, 2ND MOUNTING,RH	1	Rp596.500
25	57330-78R00-000	.BRACKET, 3RD MOUNTING,RH	1	Rp299.000
26	57340-78R00-000	.BRACKET, 4TH MOUNTING,RH	1	Rp475.000
27	57360-78R00-000	.BRACKET, 1ST MOUNTING,LH	1	Rp572.500
28	57370-78R00-000	.BRACKET, 2ND MOUNTING,LH	1	Rp596.500
29	57380-78R00-000	.BRACKET, 3RD MOUNTING,LH	1	Rp299.000
30	57390-78R00-000	.BRACKET, 4TH MOUNTING,LH	1	Rp475.000
31	57411-78R00-000	.MEMBER,FUEL TANK UPPER,RH	1	Rp397.000
32	57461-78R00-000	.MEMBER,FUEL TANK UPPER,LH	1	Rp397.000
33	57531-78R00-000	.BRACKET,RADIATOR STAY,RH	1	Rp195.500
34	57541-78R00-000	.BRACKET,RADIATOR STAY,LH	1	Rp195.500
35	57561-78R00-000	.BRACKET,5TH CROSSMEMBER,RH	1	Rp154.500
36	57566-78R00-000	.BRACKET,5TH CROSSMEMBER,LH	1	Rp154.500
37	57611-78R00-000	.BRACKET,TRANSFER FR,RH	1	Rp144.000
38	57621-78R00-000	.BRACKET,TRANSFER RR,RH	1	Rp134.000
39	57630-78R00-000	.BRACKET, TRANSFER,LH	1	Rp200.000
40	57740-78R00-000	.BRACKET, 3RD CROSSMEMBER	2	Rp313.000
41	57820M80T00-000	.BRACKET, LATERAL ROD FR	1	Rp288.500
42	57831-78R00-000	.BRACKET,STEERING DAMPER	1	Rp211.500
43	57840M80T00-000	.BRACKET, RR COIL SPRING,RH	1	Rp186.000
44	57890M80T00-000	.BRACKET, RR COIL SPRING,LH	1	Rp186.000
45	09119-05018-000	.BOLT (5X14.3)	3	Rp13.000
46	01550-1090A-000	.BOLT (10X90)	4	Rp31.000
47	08313-2010A-000	.NUT	4	Rp20.500
48	57290M80T00-000	.CROSSMEMBER ,CTR	1	Rp1.278.500
49	57571M80T00-000	.BRACKET,CSTR AIR SUCT	1	Rp10.500
50	57572M80T00-000	.BRACKET,CSTR AIR SUCT	1	Rp10.500
51	72382-78R00-000	SHROUD,RADIATOR LWR	1	Rp626.500
52	09409M07356-000	CLIP (6.8X11.5)	5	Rp2.000
