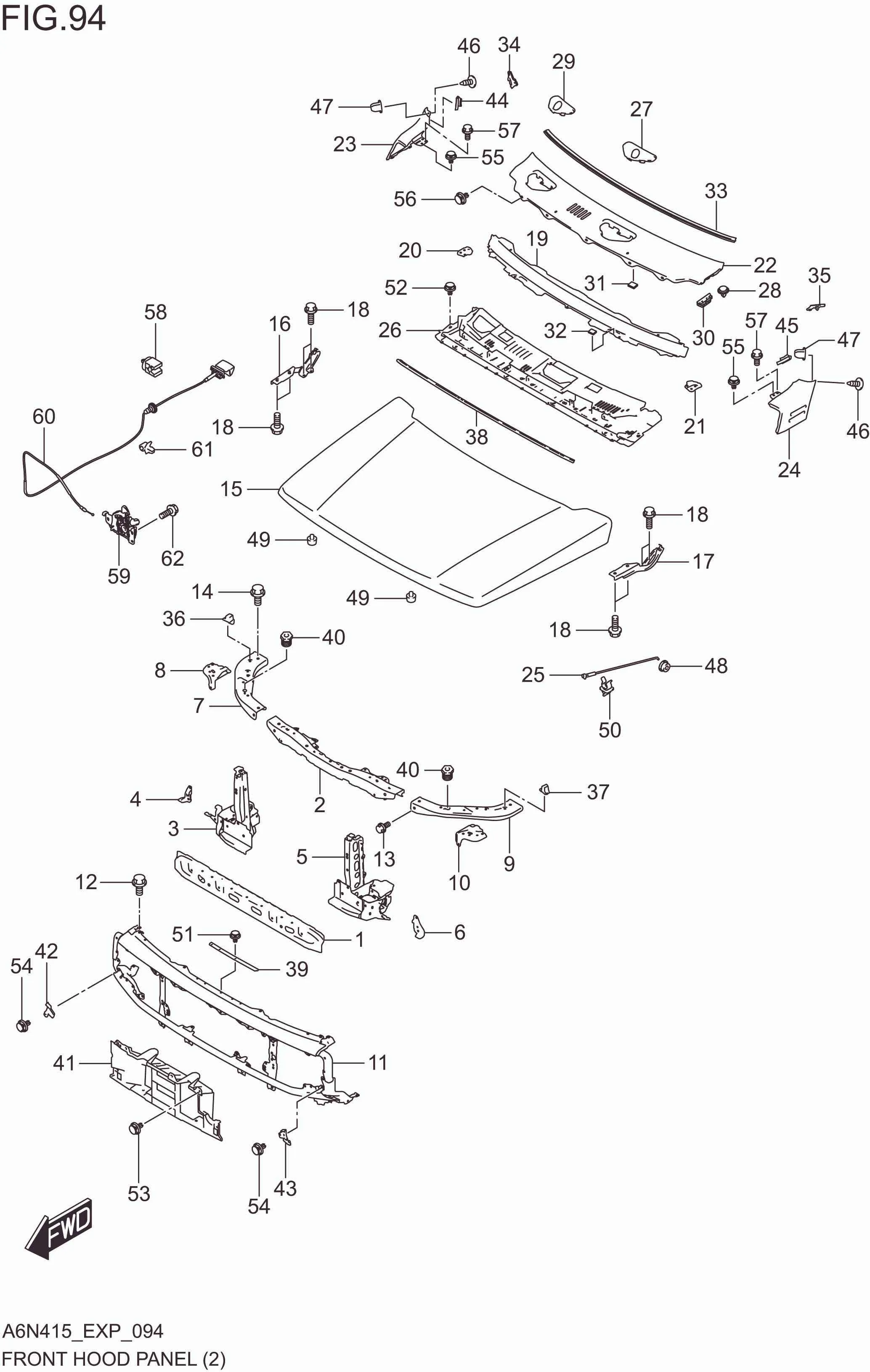

FIG. 094 FRONT HOOD PANEL(RHD)

No	No. Part	Description	Qty	Price Per Pcs
1	58110-78R00-000	MEMBER ,1ST MOUNT	1	Rp764.500
2	58120-78R00-000	MEMBER ,HOOD LOCK	1	Rp804.000
3	58130M80T00-000	PANEL ,1ST MOUNT,RH	1	Rp896.500
4	58146-78R00-000	BRACKET,FR OUTER PANEL LWR,RH	1	Rp60.000
5	58150M80T00-000	PANEL ,1ST MOUNT,LH	1	Rp896.500
6	58166-78R00-000	BRACKET,FR OUTER PANEL LWR,LH	1	Rp60.000
7	58171-78R00-000	MEMBER,LAMP SUPPORT,RH	1	Rp268.000
8	58172-78R00-000	BRACKET,FR OUTER PANEL UPR,RH	1	Rp115.500
9	58181-78R00-000	MEMBER,LAMP SUPPORT,LH	1	Rp268.000
10	58182-78R00-000	BRACKET,FR OUTER PANEL UPR,LH	1	Rp115.500
11	58200M80T00-000	PANEL ,FRONT OUTER	1	Rp1.356.500
12	01550-0610B-000	BOLT (6X10)	14	Rp3.000
13	01550-0610B-000	BOLT (6X10)	6	Rp3.000
14	01550-0610B-000	BOLT (6X10)	2	Rp3.000
15	58300M80T00-000	PANEL ,FRONT HOOD	1	Rp3.078.500
16	58410M80T00-000	HINGE ,FRONT HOOD,RH	1	Rp203.500
17	58420M80T00-000	HINGE ,FRONT HOOD,LH	1	Rp203.500
18	01551-0820A-000	BOLT,HOOD HINGE	8	Rp17.500
19	59321-78R00-000	PANEL,COWL TOP	1	Rp761.000
20	59322-78R00-000	BRACKET,COWL SIDE,RH	1	Rp166.000
21	59323-78R00-000	BRACKET,COWL SIDE,LH	1	Rp166.000
22	59910-78R00-000	PANEL, COWL TOP OUTER	1	Rp2.773.000
23	59921-78R00-000	PANEL,COWL TOP SIDE,RH	1	Rp1.205.500
24	59922-78R00-000	PANEL,COWL TOP SIDE,LH	1	Rp1.205.500
25	72310-78R00-000	STAY, FRONT HOOD	1	Rp86.000
26	72330-78R00-000	COVER, COWL TOP	1	Rp1.104.500
27	72333-78R00-5PK	CAP,COWL TOP OUTER CTR (BLACK)	1	Rp206.000
28	72336M80T00-000	CLIP,COWL TOP OUTER REAR	2	Rp2.000
29	72332-78R00-5PK	CAP,COWL TOP OUTER SIDE (BLACK	1	Rp186.500
30	72337M80T00-000	CLIP,COWL TOP OUTER SIDE	2	Rp2.500
31	72338M80T00-000	FASTENER,COWL TOP OTR	2	Rp34.000
32	72339M80T00-000	FASTENER,COWL CENTER COVER	2	Rp19.500
33	72342M80T00-000	SEAL,COWL TOP OUTER REAR	1	Rp97.500
34	72346-78R00-000	SEAL,FR PILLAR LOWER,RH	1	Rp60.000
35	72347-78R00-000	SEAL,FR PILLAR LOWER,LH	1	Rp60.000
36	72353M80T00-000	CUSHION,FR FENDER,RH	1	Rp15.500
37	72354M80T00-000	CUSHION,FR FENDER,LH	1	Rp15.500
38	72360M80T00-000	SEAL, HOOD REAR	1	Rp65.500
39	72371-78R00-000	COVER,FRONT PANEL UPR	1	Rp514.000
40	72372M70F00-000	CUSHION	2	Rp3.500
41	72381M80T00-000	SHROUD,RADIATOR UPR	1	Rp110.000
42	72391-78R00-000	PROTECTOR,FRONT PANEL LWR,RH	1	Rp73.500
43	72392-78R00-000	PROTECTOR,FRONT PANEL LWR,LH	1	Rp73.500
44	72393-78R00-000	PROTECTOR,COWL TOP SIDE,RH	1	Rp91.000
45	72394-78R00-000	PROTECTOR,COWL TOP SIDE,LH	1	Rp91.000
46	09136-05072-000	SCREW,COWL SIDE	2	Rp22.500
47	09148M05078-000	NUT (M5)	2	Rp6.000
48	09308M06017-000	GROMMET,FR HOOD STAY	1	Rp2.000
49	09321M10052-000	CUSHION	2	Rp6.500
50	09403M06330-000	CLAMP	1	Rp2.000
51	09409-10304-000	CLIP	5	Rp5.000
52	09409M07356-000	CLIP (6.8X11.5)	7	Rp2.000
53	09409M07356-000	CLIP (6.8X11.5)	7	Rp2.000
54	09409M07356-000	CLIP (6.8X11.5)	2	Rp2.000
55	09409M07356-000	CLIP (6.8X11.5)	2	Rp2.000
56	09409M07356-000	CLIP (7.8X20)	5	Rp2.000
57	02162-0612A-000	SCREW (6X12)	2	Rp11.000
58	75412M80T00-000	CLAMP,HOOD LATCH RELEASE CABLE	1	Rp3.000
59	82110M80T10-000	LATCH,HOOD	1	Rp403.000
60	82160M80T00-000	CABLE, HOOD LATCH RELEASE	1	Rp87.500
61	09403M04405-000	CLAMP (D:4.8)	3	Rp3.500
62	02162-0616A-000	BOLT	3	Rp3.000
