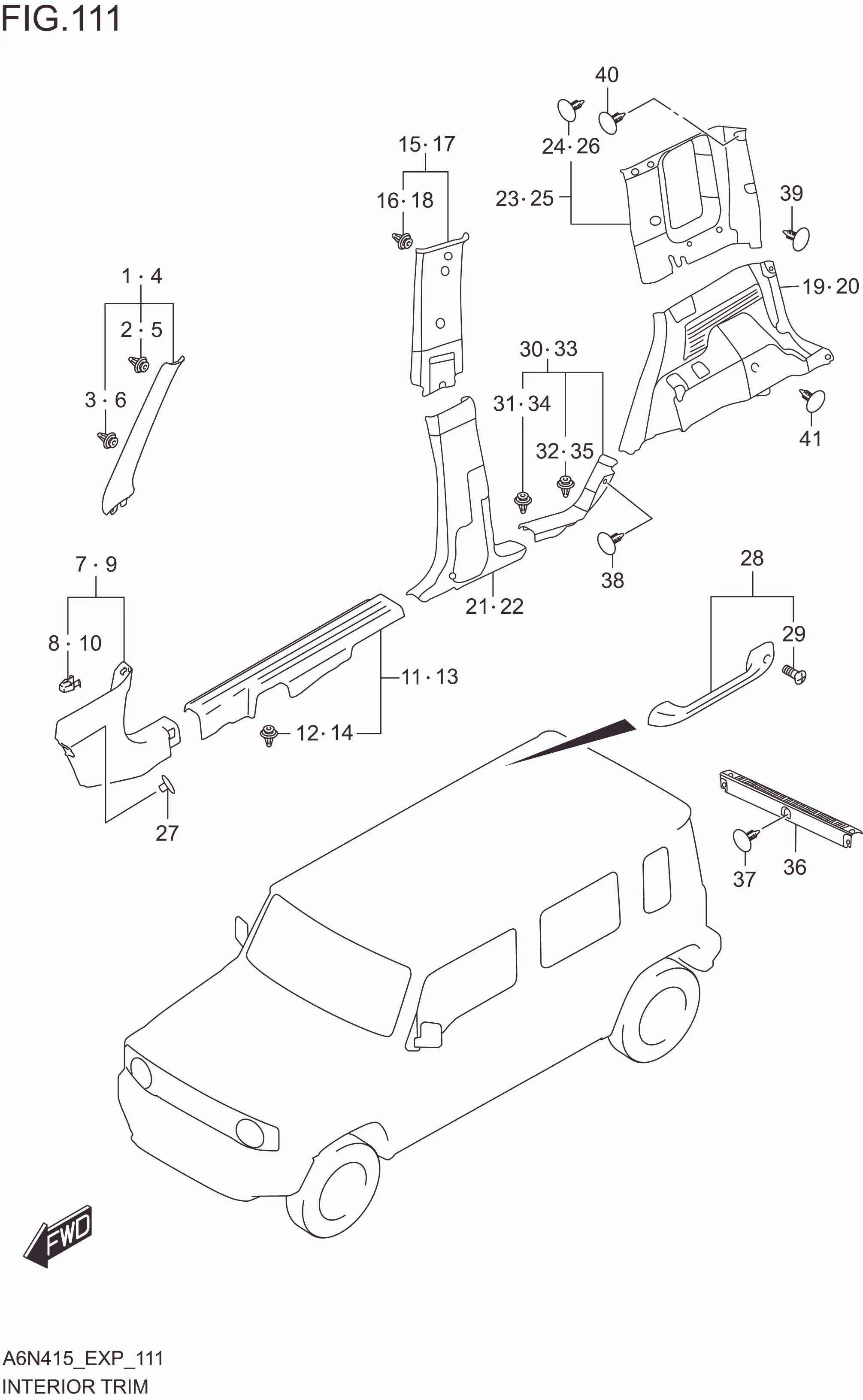

FIG. 111 INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs
1	76110M80T00-6GS	TRIM, FRONT PILLAR RH (GRAY)	1	Rp47.500
2	09409M10L04-000	.CLIP	1	Rp4.000
3	09409M10321-000	.CLIP	1	Rp5.000
4	76120M80T00-6GS	TRIM, FRONT PILLAR LH (GRAY)	1	Rp47.500
5	09409M10L04-000	.CLIP	1	Rp4.000
6	09409M10321-000	.CLIP	1	Rp5.000
7	76130M80T00-5PK	TRIM, DASH SIDE RH (BLACK)	1	Rp52.500
8	09409M08344-000	.CLIP	1	Rp4.500
9	76140M80T00-5PK	TRIM, DASH SIDE LH (BLACK)	1	Rp52.500
10	09409M08344-000	.CLIP	1	Rp4.500
11	76150M80T00-5PK	SCUFF, SIDE SILL FR RH (BLACK)	1	Rp77.000
12	09409M10321-000	.CLIP	2	Rp5.000
13	76160M80T00-5PK	SCUFF, SIDE SILL FR LH (BLACK)	1	Rp77.000
14	09409M10321-000	.CLIP	2	Rp5.000
15	76210M80T10-5PK	TRIM,CTR PILLAR UPPER,R(BLACK)	1	Rp65.500
16	09409M10321-000	.CLIP (BLACK)	4	Rp5.000
17	76220M80T10-5PK	TRIM, CTR PILLAR UPPER LH (BLACK)	1	Rp65.500
18	09409M10321-000	.CLIP	4	Rp5.000
19	76270M80T00-5PK	TRIM, QUARTER LOWER RH (BLACK)	1	Rp273.000
20	76280M80T00-5PK	TRIM, QUARTER LOWER LH (BLACK)	1	Rp273.000
21	76231M80T00-5PK	TRIM,CTR PILLAR LOWER,RH (BLACK)	1	Rp144.500
22	76241M80T00-5PK	TRIM,CTR PILLAR LOWER ,LH (BLACK)	1	Rp144.500
23	76260M80T00-5PK	TRIM,QUARTER UPPER,LH (BLACK)	1	Rp212.500
24	09409M10321-000	.CLIP	5	Rp5.000
25	76250M80T00-5PK	TRIM,QUARTER UPPER,RH(BLACK)	1	Rp212.500
26	09409M10321-000	.CLIP	5	Rp5.000
27	09148M05L11-000	CLIP (M5)	2	Rp4.500
28	76411M79F00-6GS	GRIP,ASSISTANT (GRAY)	3	Rp27.000
29	09139-06104-000	.SCREW (6X26)	6	Rp22.500
30	76170M80T00-5PK	SCUFF,SIDE SILL REAR,R (BLACK)	1	Rp59.000
31	09409M10321-000	.CLIP	1	Rp5.000
32	09409M10332-000	.CLIP	1	Rp6.000
33	76180M80T00-5PK	SCUFF,SIDE SILL REAR,L (BLACK)	1	Rp59.000
34	09409M10321-000	.CLIP	1	Rp5.000
35	09409M10332-000	.CLIP	1	Rp6.000
36	76191M80T00-5PK	TRIM,TAIL END (BLACK)	1	Rp82.000
37	09409-06310-5PK	CLIP (BLACK)	3	Rp19.500
38	09409-06310-5PK	CLIP,SCUFF SIDE SILL REAR (BLACK)	2	Rp19.500
39	09409-06310-5PK	CLIP,QUARTER UPPER TRIM (BLACK)	4	Rp19.500
40	09409M07356-000	CLIP,QUARTER UPPER TRIM	4	Rp2.000
41	09409M07356-000	CLIP,QUARTER LOWER TRIM	6	Rp2.000
