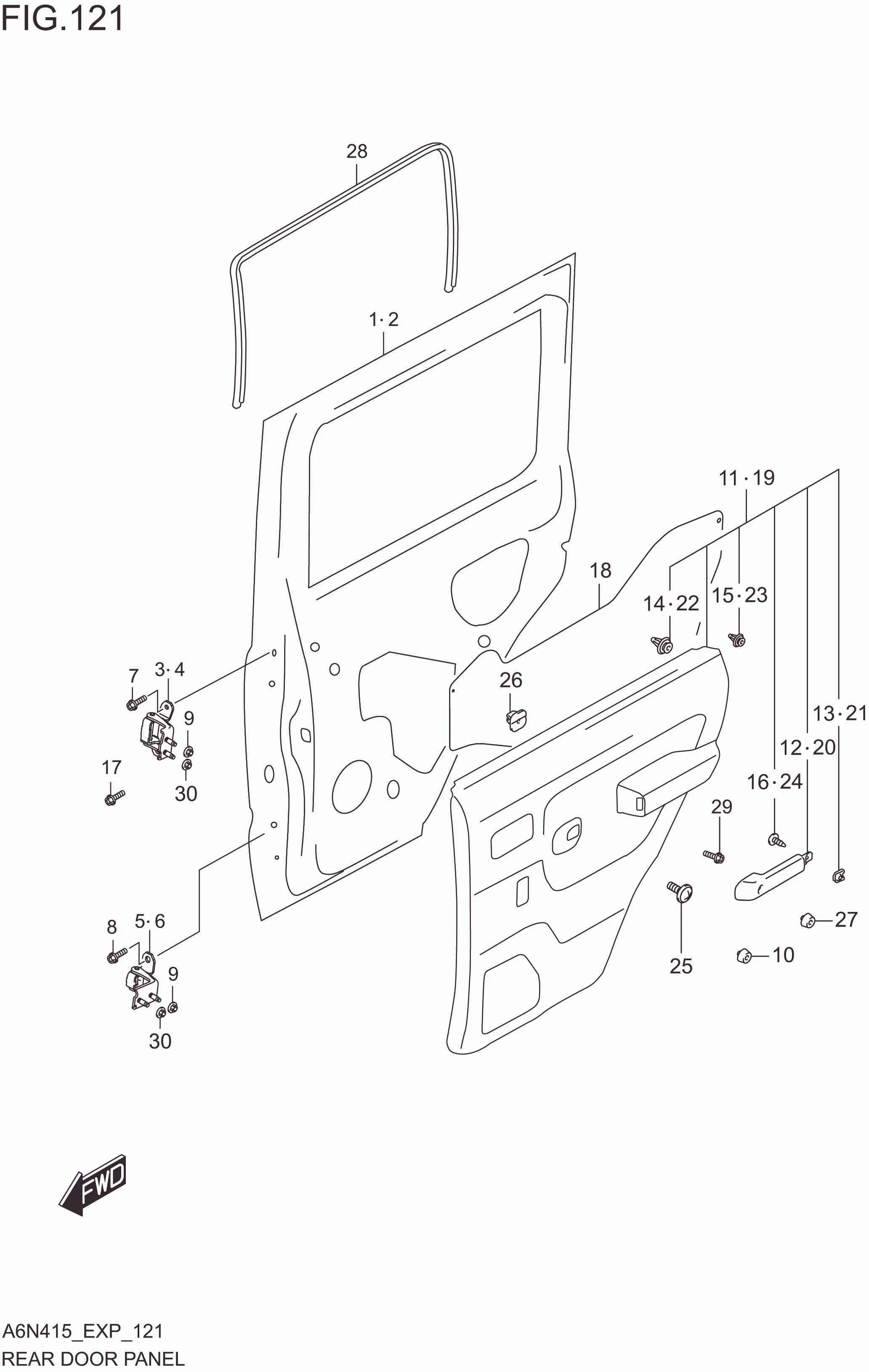

FIG. 121 REAR DOOR PANEL

FIG. 121 REAR DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68003M80T00-000 PANEL ASSY,REAR DOOR,R 1 Rp6.220.500
2 68004M80T00-000 PANEL ASSY,REAR DOOR,L 1 Rp6.220.500
3 69410M66R00-000 HINGE,REAR DOOR UPPER,R 1 Rp85.500
4 69420M66R00-000 HINGE,REAR DOOR UPPER,L 1 Rp85.500
5 69430M66R00-000 HINGE,REAR DOOR LOWER,R 1 Rp85.500
6 69440M66R00-000 HINGE,REAR DOOR LOWER,L 1 Rp85.500
7 09113M08L02-000 BOLT,SIDE DR HINGE PILLAR NO.2 8 Rp8.500
8 09113M08008-000 BOLT,SIDE DR HINGE PILLAR NO.2 8 Rp5.500
9 09159M08151-000 NUT,REAR DOOR HINGE PILLAR 4 Rp11.500
10 82711-51K00-000 STOPPER,DOOR 2 Rp39.000
11 83740M80T00-5PK TRIM,REAR DOOR,L (BLACK) 1 Rp529.500
12 83728M80T00-5PK .GRIP,REAR DOOR,L (BLACK) 1 Rp63.500
13 09148M05L04-000 .NUT,DOOR TRIM GRIP 1 Rp5.000
14 09409M07352-000 .CLIP,REAR DOOR TRIM NO.2 1 Rp2.000
15 09409M10321-000 .CLIP,REAR DOOR TRIM NO.1 7 Rp5.000
16 03241M0512A-000 .SCREW,DOOR TRIM GRIP 3 Rp4.000
17 09103M08557-000 BOLT,REAR DOOR HINGE DOOR 8 Rp8.500
18 83915M80T00-000 COVER,REAR DOOR SEALING 2 Rp7.000
19 83730M80T00-5PK TRIM,REAR DOOR,R (BLACK) 1 Rp529.500
20 83718M80T00-5PK .GRIP,REAR DOOR,R (BLACK) 1 Rp63.500
21 09148M05L04-000 .NUT,DOOR TRIM GRIP 1 Rp5.000
22 09409M07352-000 .CLIP,REAR DOOR TRIM NO.2 1 Rp2.000
23 09409M10321-000 .CLIP,REAR DOOR TRIM NO.1 7 Rp5.000
24 03241M0512A-000 .SCREW,DOOR TRIM GRIP 3 Rp4.000
25 09132-05058-000 SCREW(5X12) 8 Rp14.000
26 83119M75J00-000 NUT,DOOR TRIM 4 Rp5.500
27 81830M80T00-000 STOP,REAR DOOR OPEN 2 Rp135.500
28 76295M80T00-5PK TRIM,REAR DOOR OPENING (BLACK) 2 Rp112.000
29 09112-08015-000 BOL(8X25) 2 Rp32.000
30 08316-1006A-000 NUT(6X12) 4 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
