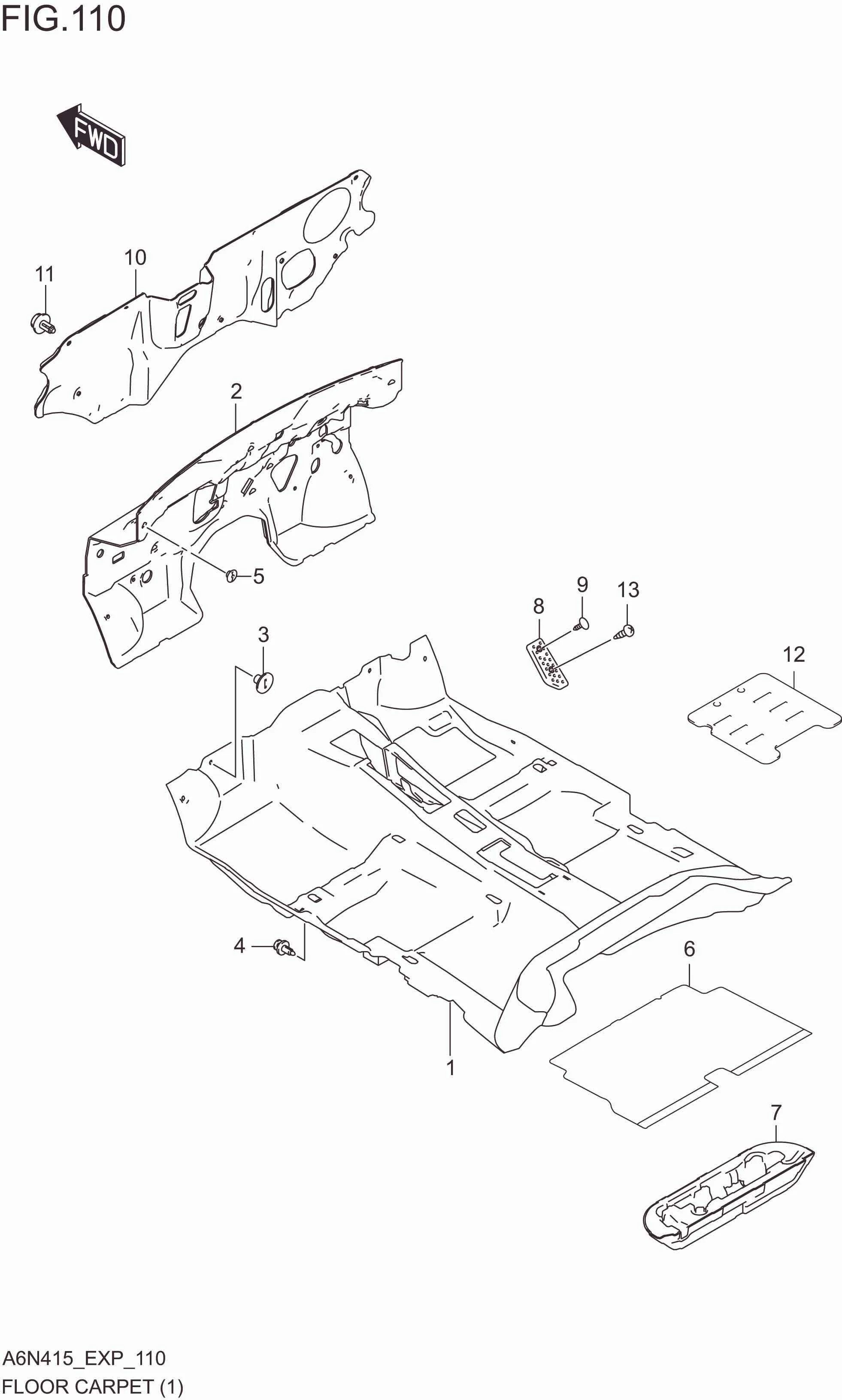

FIG. 110 FLOOR CARPET(RHD)

FIG. 110 FLOOR CARPET(RHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	75110M80T00-R3F	CARPET,FLOOR (BLACK)	1	Rp1.518.500
1-2	75110M80T10-R3F	CARPET,FLOOR (BLACK)	1	Rp1.543.000
2	75221M80T00-000	SILENCER, DASH PANEL INNER	1	Rp513.000
3	09148M05L11-000	CLIP (M5)	2	Rp4.500
4	09409M07356-000	CLIP (6.8X11.5)	2	Rp2.000
5	09148M05L02-000	CLIP (M5)	3	Rp5.500
6	75440M80T00-R3F	BOARD, LUGGAGE FLOOR (BLACK)	1	Rp395.500
7	75471M80T00-000	BOX, TOOL	1	Rp194.000
8	75451M80T00-000	PEDAL,FOOTREST	1	Rp15.000
9	76239M70F00-5PK	CLIP (BLACK)	2	Rp1.500
10	72450M80T00-000	SILENCER,DASH OUTER	1	Rp141.500
11	09148M05L02-000	CLIP (M5)	5	Rp5.500
12	99611-60A01-000	SHEET, SILENCER (800X1000X3)	2	Rp1.210.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
