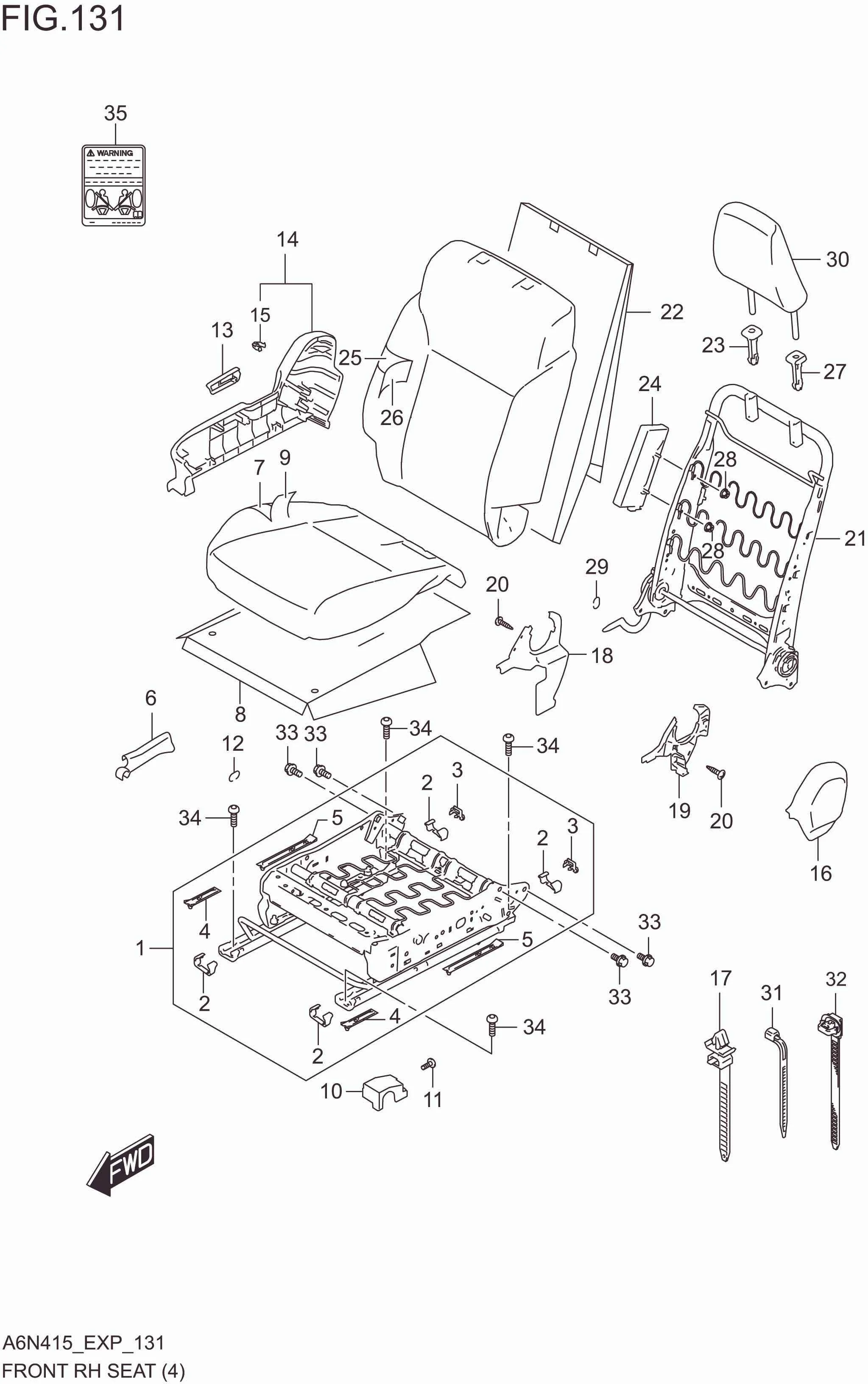

FIG. 131 FRONT RH SEAT (RHD:6AB)

No	No. Part	Description	Qty	Price Per Pcs
1	85103M80T00-000	FRAME ASSY,FR CUSH,R	1	Rp4.006.000
2	86652-77R00-000	.CAP,FR ADJUSTER LOWER	4	Rp60.000
3	86653M74P50-000	.CAP,FR ADJ UPR	2	Rp5.500
4	86656-77R00-000	.PROTECTOR,FR ADJUSTER FRONT	2	Rp63.000
5	86657-77R00-000	.PROTECTOR,FR ADJUSTER REAR	2	Rp63.000
6	85226M80T00-000	SUPPORT,FR CUSH PAD LOWER,R	1	Rp7.000
7	85160M80T00-000	PAD, FR CUSH	1	Rp580.500
8	85169M80T00-000	SILENCER,FR CUSH	1	Rp4.000
9	85180M80T00-E4H	TRIM, FR CUSH,R (GRAY/BLACK)	1	Rp399.000
10	85281M80T00-000	COVER,HARNESS BRKT,R	1	Rp7.500
11	09132-04037-000	SCREW (4X10)	1	Rp15.000
12	09387M19001-000	RING (OD:22.6)	8	Rp7.500
13	85211-58J00-5PK	KNOB,RCLNG,R (BLACK)	1	Rp28.500
14	85221M80T00-5PK	COVER,FR RCLNG OUTSIDE,RH (BLACK)	1	Rp47.500
15	85249M68P00-000	.CLIP	3	Rp9.500
16	85241M80T00-5PK	COVER,FR RCLNG INSIDE,R (BLACK	1	Rp23.000
17	85191M74L00-000	CLAMP	1	Rp9.000
18	85222M80T00-5PK	COVER,FR RCLNG OUTSIDE LOWER,RH (BLACK)	1	Rp13.500
19	85242M80T00-5PK	COVER,FR RCLNG INSIDE LOWER,RH (BLACK)	1	Rp13.500
20	03541-0410A-000	SCREW,RCLNG INSIDE COVER	2	Rp11.000
21	85303M80T00-000	FRAME ASSY,FR BACK,R	1	Rp3.591.500
22	85369M80T00-000	SILENCER,FR BACK	1	Rp11.000
23	85341-63R00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp28.500
24	85350-77R01-000	MODULE ASSY,SIDE AIR BAG,L	1	Rp9.939.000
25	85360M80T20-000	PAD, FR BACK,R	1	Rp685.500
26	85380-77RC0-E4H	TRIM, FR BACK,L (GRAY/BLACK)	1	Rp2.193.000
27	85840M63R00-5PK	GUIDE,HEADRESTRAINT (BLACK)	1	-
28	08319-3106A-000	NUT	2	Rp6.500
29	09387M19001-000	RING (OD:22.6)	9	Rp7.500
30	86401M80T00-QVL	HEADRESTRAINT ASSY (BLACK)	1	Rp641.500
31	09407-14L01-000	CLAMP	2	Rp5.500
32	09407M17404-000	CLAMP	1	Rp8.500
33	01550-1016A-000	BOLT (10X16)	4	Rp5.500
34	09119M08118-000	BOLT (8X25)	4	Rp6.500
35	DISCONTINUE SUB: 85354-59JC1-000	LABEL,SIDE AIRBAG	1	-
