New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 092 BODY MOUNTING(RHD)FIG. 093 CHASSIS FRAME(RHD)FIG. 094 FRONT HOOD PANEL(RHD)FIG. 095 TIRE CARRIER(N/COVER)FIG. 096 FRONT FENDER PANEL FIG. 097 FRONT BODY PANEL(RHD)FIG. 098 FLOOR PANEL FIG. 099 SIDE BODY PANEL FIG. 100 ROOF PANEL FIG. 101 FRONT BUMPER FIG. 102 REAR BUMPER FIG. 103 INSTRUMENT PANEL UPPER(RHD)FIG. 104 INSTRUMENT PANEL LOWER (RHD)FIG. 105 VENTILATOR (RHD)FIG. 106 HEATER UNIT (RHD:W_AU_AC)FIG. 107 HEATER CONTROL (W_AU_AC)FIG. 108 CONSOLE BOX (5MT)FIG. 109 CONSOLE BOX (4AT)FIG. 110 FLOOR CARPET(RHD)FIG. 111 INTERIOR TRIM FIG. 112 COVER/CAP FIG. 113 FUEL LID OPENER (RHD)FIG. 114 ROOF LINING FIG. 115 MOLDING FIG. 116 SPLASH GUARD FIG. 117 EMBLEM FIG. 118 ROOF SIDE PAD/AIR BAG(6AB)FIG. 119 WINDSHIELD FIG. 120 FRONT DOOR PANEL FIG. 121 REAR DOOR PANEL FIG. 122 BACK DOOR PANEL FIG. 123 FRONT DOOR REGULATOR(RHD)FIG. 124 REAR DOOR REGULATOR(RHD)FIG. 125 FRONT DOOR LOCK FIG. 126 REAR DOOR LOCK FIG. 127 BACK DOOR LOCK FIG. 128 MIRROR/SUNVISOR FIG. 129 SEAT BELT FIG. 130 FRONT LH SEAT (RHD:6AB)FIG. 131 FRONT RH SEAT (RHD:6AB)FIG. 132 REAR SEAT FIG. 133 FUEL TANK FIG. 134 TOOL FIG. 135 CONDENSER FIG. 136 A/C PIPING(RHD)FIG. 137 COMPRESSOR

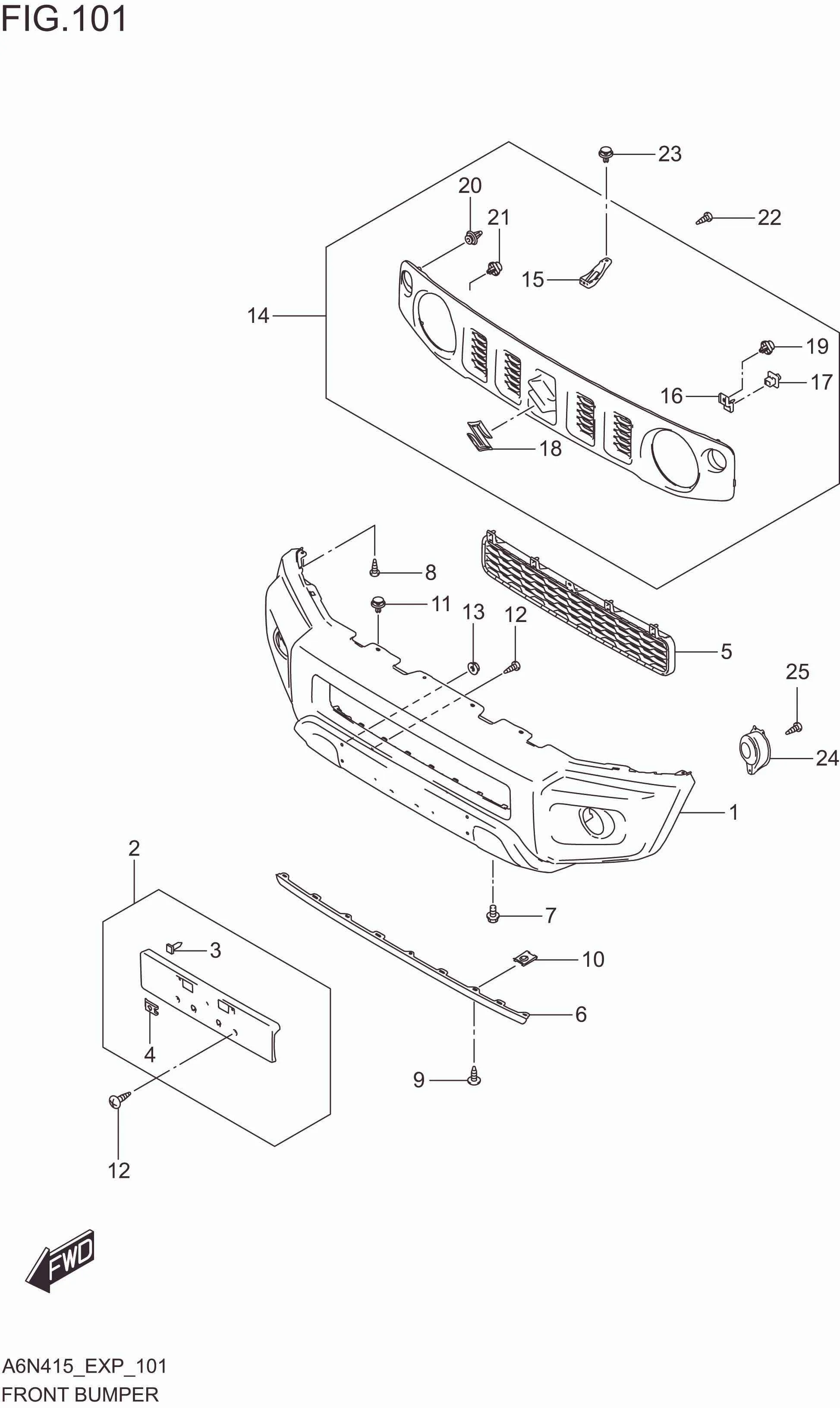

FIG. 101 FRONT BUMPER

FIG. 101 FRONT BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711M73T11-5PK	BUMPER,FRONT (BLACK)	1	Rp812.500
2	71713M80T00-5PK	GARNISH,FR BUMPER LICENSE (BLACK)	1	Rp67.000
3	77225-78F10-000	.BOLT	4	Rp27.500
4	08315-11069-000	.NUT (M6)	2	Rp2.500
5	71721-78R00-5PK	NET,FRONT BUMPER (BLACK)	1	Rp318.000
6	71751M80T00-000	GARNISH,FRONT BUMPER	1	Rp56.000
7	09111-06252-000	BOLT	3	Rp24.500
8	09132-06022-000	SCREW(6X20)	2	Rp23.000
9	09136M05078-000	SCREW	3	Rp7.500
10	09148-05075-000	NUT	5	Rp14.000
11	09409M07356-000	CLIP (6.8X11.5)	4	Rp2.000
12	03541-0516A-000	SCREW	4	Rp3.500
13	08316-1005A-000	NUT	4	Rp2.500
14	72110M80T00-JZG	GRILLE, RADIATOR (CHROME/BLACK)	1	Rp2.181.500
15	72119M80T00-000	.BRACKET,RADIATOR GRILLE UPR	2	Rp7.500
16	72118M80T00-000	.BRACKET,RADIATOR GRILLE LWR	2	Rp5.000
17	72115-78R00-000	.CLIP	2	Rp15.000
18	77811M54GC0-0PG	.EMBLEM,MARK S (CHROME)	1	Rp85.500
19	72115-78R00-000	.CLIP (6.8X11.5)	2	Rp15.000
20	09409M10321-000	.CLIP	13	Rp5.000
21	09409M07356-000	.CLIP	2	Rp2.000
22	03541-0516A-000	SCREW	4	Rp3.500
23	09409M07356-000	CLIP (6.8X11.5)	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
