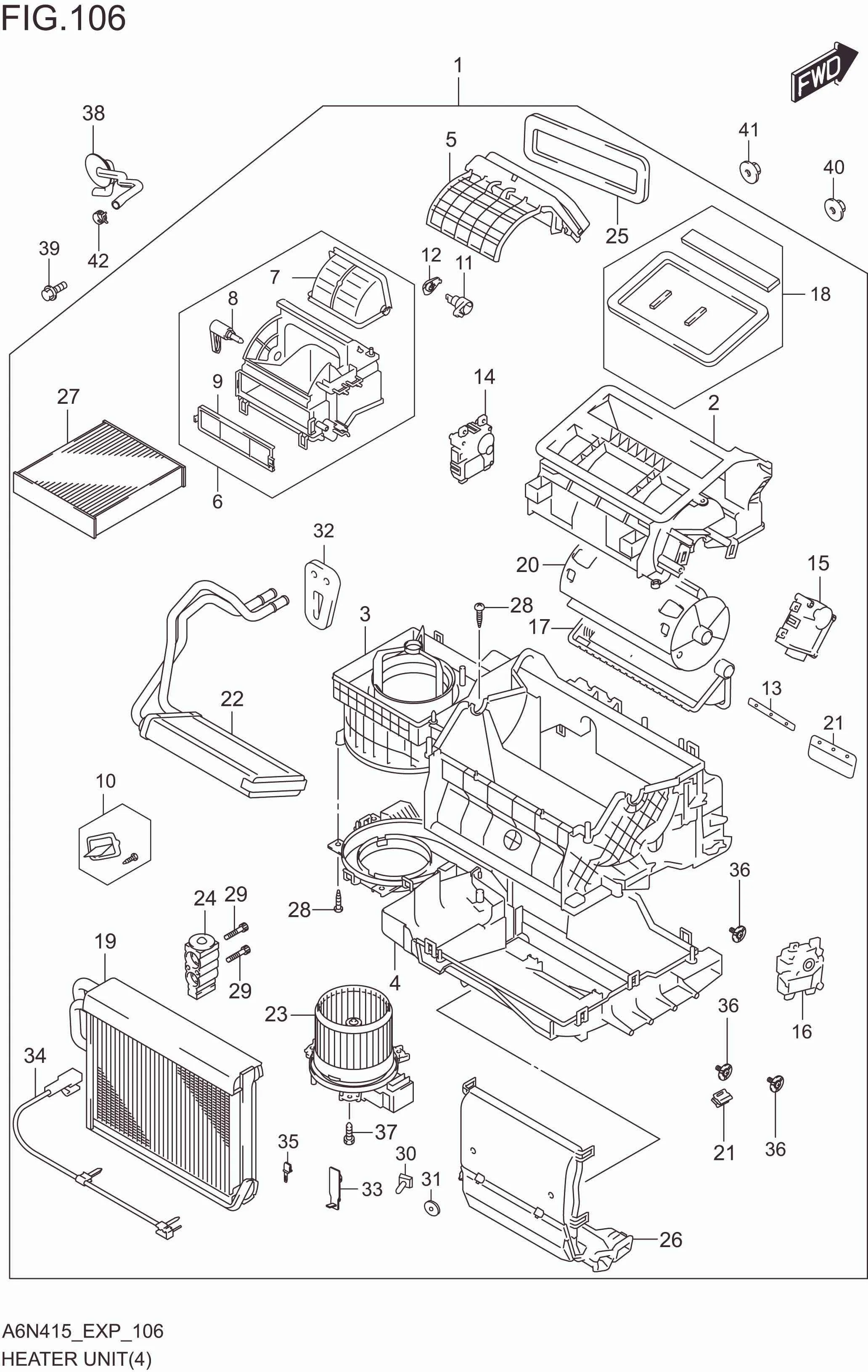

FIG. 106 HEATER UNIT (RHD:W_AU_AC)

No	No. Part	Description	Qty	Price Per Pcs
1	74100M80T60-000	HVAC UNIT	1	Rp8.918.500
2	74214M80T60-000	.CASE, HEATER	1	Rp156.500
3	74211M80T60-000	.CASE, BLOWER UPPER	1	Rp183.500
4	74212M80T60-000	.CASE BLOWER LOWER	1	Rp197.500
5	74213M80T20-000	.DUCT	1	Rp34.000
6	74210M80T60-000	.F/R CASE S/A	1	Rp467.000
7	74171M66RC0-000	..DOOR SUB ASSY	1	Rp40.000
8	74181M66RE0-000	..LEVER	1	Rp9.000
9	95423M66RC0-000	..HOLDER, FILTER	1	Rp8.500
10	95626M66RE0-000	.RESISTER BLOWER, KIT	1	Rp640.500
11	74183M66RE0-000	.LEVER	1	Rp8.500
12	74184M66RE0-000	.LEVER	1	Rp12.000
13	74214M80T20-000	.PLATE	1	Rp164.000
14	95651M66RE0-000	.SERVO & ACC ASSY, A/M	1	Rp354.500
15	95652M66RE0-000	.SERVO & ACC ASSY, F/R	1	Rp352.000
16	95653M66RE0-000	.SERVO MOTOR	1	Rp343.500
17	74173M66RC0-000	.DOOR SUB ASSY	1	Rp107.500
18	74116M66RC0-000	.PACKING, FACE OUTLET	1	Rp23.000
19	95411M80T20-000	.EVAPORATOR SUB ASSY	1	Rp1.034.000
20	74172M66RC0-000	.DOOR SUB ASSY	1	Rp303.500
21	74215M80T20-000	.PACKING	1	Rp18.000
22	74120M80T20-000	.CORE SUB ASSY HEATER	1	Rp997.500
23	74150M80T20-000	.MOTOR ASSY W/FAN	1	Rp2.028.000
24	95431M66RC0-000	.VALVE EXPANSION	1	Rp547.000
25	74119M66RC0-000	.PACKING	1	Rp13.000
26	74115M80T20-000	.FOOT DUCT SUB ASSY	1	Rp50.500
27	95850M66RC0-000	.FILTER SUB ASSY	1	Rp98.500
28	03112-0416A-000	.SCREW TAPPING	8	Rp23.500
29	74134-58J00-000	.BOLT	2	Rp14.000
30	74119M80T20-000	.BOLT	1	Rp7.000
31	74119-78F10-000	.BUSH	1	Rp8.000
32	74117M80T20-000	.PACKING	1	Rp47.500
33	74166M66L00-000	.PLUG	1	Rp5.000
34	95541M66RC0-000	.THERMISTOR ASSY	1	Rp208.000
35	95452-63J00-000	.CLAMP	1	Rp9.000
36	74183-82005-000	.SCREW TAPPING	4	Rp19.000
37	74135-82000-000	.SCREW TAPPING	3	Rp19.500
38	95480M80T00-000	HOSE ASSY,DRAIN	1	Rp26.500
39	09113-06006-000	BOLT(6X20)	1	Rp25.000
40	09159-06081-000	NUT(M6)	1	Rp14.500
41	09159-06086-000	NUT(M6)	1	Rp26.500
42	09401-15420-000	CLIP,DRAIN HOSE	1	Rp17.000
