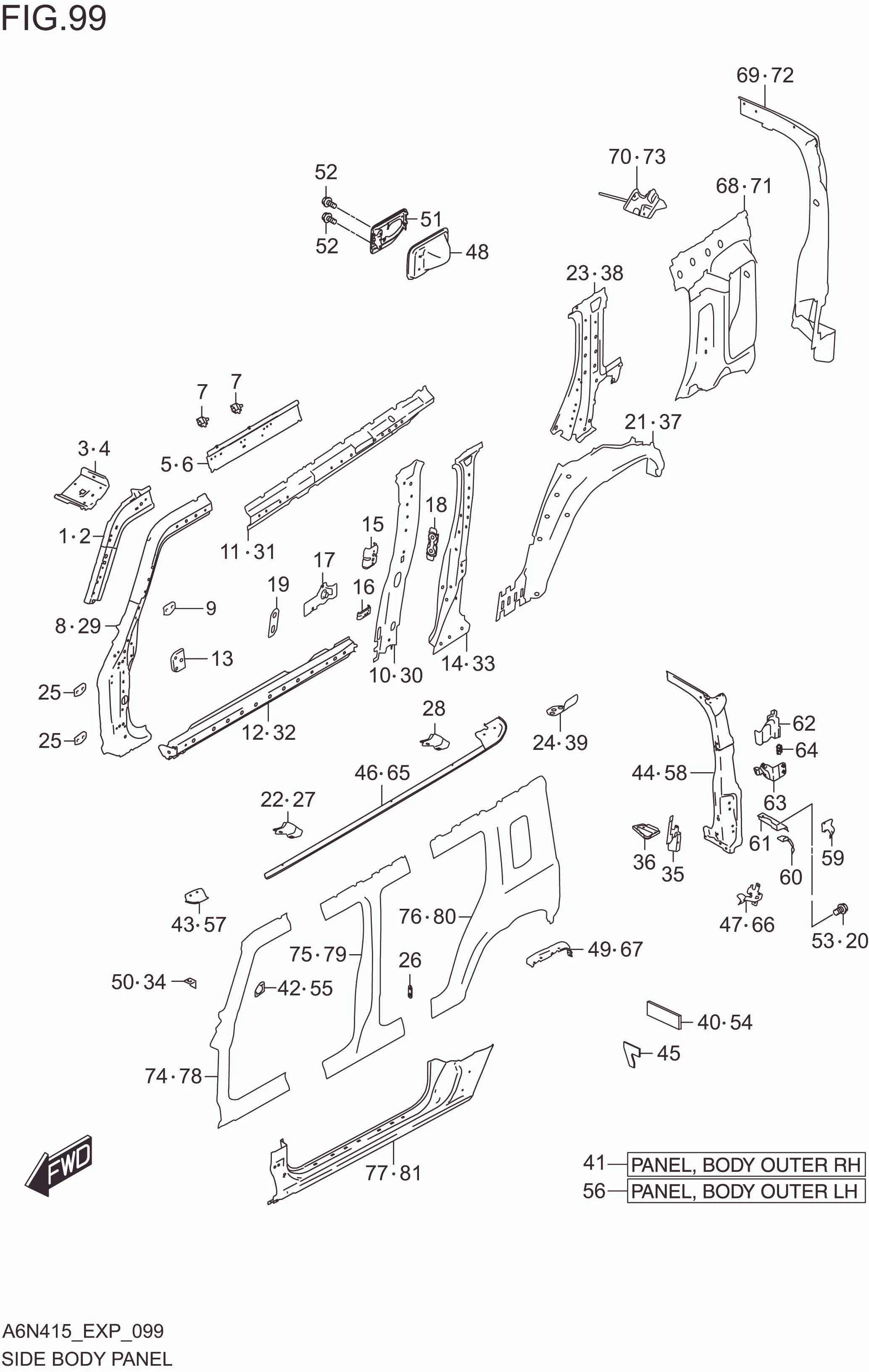

FIG. 099 SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	63111M80T00-000	PANEL,FRONT PILLAR INNER,RH	1	Rp293.000
2	63511M80T00-000	PANEL,FRONT PILLAR INNER,LH	1	Rp293.000
3	63112-78R00-000	EXTENSION,FRONT PILLAR INNER,RH	1	Rp603.000
4	63512-78R00-000	EXTENSION,FRONT PILLAR INNER,LH	1	Rp603.000
5	63113M80T00-000	RAIL,ROOF SIDE INNER,RH	1	Rp1.736.500
6	63513M80T00-000	RAIL,ROOF SIDE INNER,LH	1	Rp1.736.500
7	63326-78R00-000	BRACKET,ASSISTANT GRIP	2	Rp59.000
8	63140M80T00-000	REINF COMP,FRONT DOOR HINGE,RH	1	Rp1.041.500
9	63144M76M00-000	RETAINER,FRONT DOOR HINGE	2	Rp9.500
10	63211M80T00-000	PANEL,CTR PILLAR INNER,RH	1	Rp555.000
11	63220M80T00-000	REINF,ROOF SIDE,RH	1	Rp487.500
12	63230M80T00-000	STRENGTH,SIDE SILL,RH	1	Rp531.000
13	63142-59K00-000	REINF,DOOR CHECKER	1	Rp52.000
14	63241M80T00-000	REINF,CTR PILLAR,RH	1	Rp691.500
15	63242M80T00-000	BRACE,CTR PILLAR UPR	1	Rp34.000
16	63243M80T00-000	BRACE,CTR PILLAR LWR,RH	1	Rp23.000
17	63244M80T00-000	REINF,FR SEAT BELT,RH	1	Rp21.500
18	64817-54L00-000	RETAINER,DOOR STRIKER	1	Rp29.000
19	63243M74P00-000	RETAINER	1	Rp8.500
20	01550-0610B-000	BOLT	1	Rp3.000
21	63310M80T00-000	PANEL,RR WHEEL HSG OTR,RH	1	Rp543.500
22	63325-78R00-000	BRACKET,ROOF MEMBER	3	Rp85.000
23	63350M80T00-000	REINF,QTR PANEL,RH	1	Rp585.500
24	64114-78R00-000	BRACKET,SIDE SILL SPLASH	1	Rp313.000
25	63144M76M00-000	RETAINER,FRONT DOOR HINGE	2	Rp9.500
26	63243M74P00-000	RETAINER,REAR DOOR HINGE	2	Rp8.500
27	63325-78R00-000	BRACKET,ROOF MEMBER	2	Rp85.000
28	63325-78R00-000	BRACKET,ROOF MEMBER	1	Rp85.000
29	63540M80T00-000	REINF ,FRONT DOOR HINGE,LH	1	Rp1.041.500
30	63611M80T00-000	PANEL,CTR PILLAR INNER,LH	1	Rp555.000
31	63620M80T00-000	REINF,RHOOF SIDE,LH	1	Rp487.500
32	63630M80T00-000	STRENGTH COMP,SIDE SILL,LH	1	Rp531.000
33	63640M80T00-000	REINF COMP,CTR PILLAR,LH	1	Rp1.380.500
34	72387-68L00-000	BRACKET,FR PILLAR LOWER SEAL	1	Rp91.500
35	63736-78R00-000	REINF,BACK PILLAR INR LWR,LH	1	Rp206.000
36	63737-78R00-000	GUSSET,BACK PILLAR INR LWR,LH	1	Rp166.500
37	63710M80T00-000	PANEL COMP,RHR WHEEL HSG OTR,LH	1	Rp543.500
38	63750M80T00-000	REINF COMP,QTR PANEL,LH	1	Rp585.500
39	64114-78R00-000	BRACKET,SIDE SILL SPLASH	1	Rp313.000
40	61519M64M01-000	SHEET,BACK PILLAR OUTER	2	-
41	64111M80T00-000	PANEL,SIDE BODY OUTER,RH	1	Rp5.282.500
42	64112-78R00-000	BRACKET,FRONT FENDER	1	Rp190.500
43	64113-78R00-000	EXTENSION,ROOF SIDE DRIP FR,RH	2	Rp95.500
44	64150M80T00-000	PANEL COMP,BACK PILLAR OUTER,RH	1	Rp1.111.000
45	64162M80T00-000	SHEET,BACK PILLAR OUTER	1	Rp45.000
46	64170M80T00-000	DRIP COMP,RHOOF SIDE RAIL,RH	1	Rp1.022.500
47	64180M80T00-000	BRACKET COMP,SIDE SILL GUARD,RH	1	Rp19.000
48	64211M80T00-000	BOX,FUEL INLET	1	Rp121.000
49	64262M80T00-000	HOLDER,RHR FENDER SPLASH,RH	1	Rp54.500
50	72387-68L00-000	BRACKET,FR PILLAR LOWER SEAL	1	Rp91.500
51	64220M80T00-000	LID COMP,FUEL INLET	1	Rp155.500
52	09111M06115-000	BOLT	2	Rp5.500
53	01550-0610B-000	BOLT	1	Rp3.000
54	61519M64M01-000	SHEET,BACK PILLAR OUTER	2	-
55	64112-78R00-000	BRACKET,FRONT FENDER	1	Rp190.500
56	64511M80T00-000	PANEL,SIDE BODY OUTER,LH	1	Rp5.282.500
57	64513-78R00-000	EXTENSION,ROOF SIDE DRIP FR,LH	1	Rp107.000
58	64550M80T00-000	PANEL COMP,BACK PILLAR OUTER,LH	1	Rp1.111.000
59	64554-78R00-000	REINF,SIDE BODY OTR LWR NO.1,LH	1	Rp192.000
60	64555-78R00-000	REINF,SIDE BODY OTR LWR NO.2,LH	1	Rp216.000
61	64556-78R00-000	REINF,BACK PILLAR OTR LWR,LH	1	Rp196.000
62	64558-78R00-000	REINF,BACK DOOR STRIKER	1	Rp232.000
63	64559-78R00-000	REINF,BACK DOOR SHUT STOP	1	Rp216.000
64	64817-77K00-000	RETAINER,DOOR STRIKER	1	Rp29.000
65	64570M80T00-000	DRIP COMP,ROOF SIDE RAIL,LH	1	Rp1.022.500
66	64580M80T00-000	BRACKET COMP,SIDE SILL GUARD,LH	1	Rp19.000
67	64662M80T00-000	HOLDER,RHR FENDER SPLASH,LH	1	Rp54.500
68	63320M80T00-000	PANEL ,QUARTER INNER,RH	1	Rp534.000
69	63330M80T00-000	PANEL ,BACK PILLAR INNER,RH	1	Rp1.135.500
70	63340M80T00-000	STRIKER ,RHR SEAT BACK,RH	1	Rp145.500
71	63720M80T00-000	PANEL ,QUARTER INNER,LH	1	Rp534.000
72	63730M80T00-000	PANEL ,BACK PILLAR INNER,LH	1	Rp1.135.500
73	63740M80T00-000	STRIKER ,RR SEAT BACK,LH	1	Rp145.500
74	64111M80T00-P11	PANEL A-PILLAR,RH	1	Rp2.399.500
75	64111M80T00-P21	PANEL B-PILLAR,RH	1	Rp3.115.500
76	64111M80T00-P31	PANEL,QUARTER,RH	1	Rp3.999.500
77	64111M80T00-P41	PANEL,SIDE SILL,RH	1	Rp5.184.000
78	64511M80T00-P11	PANEL A-PILLAR,RH	1	Rp2.399.500
79	64511M80T00-P21	PANEL B-PILLAR,LH	1	Rp3.115.500
80	64511M80T00-P31	PANEL,QUARTER,LH	1	Rp3.999.500
81	64511M80T00-P41	PANEL,SIDE SILL,LH	1	Rp5.184.000
