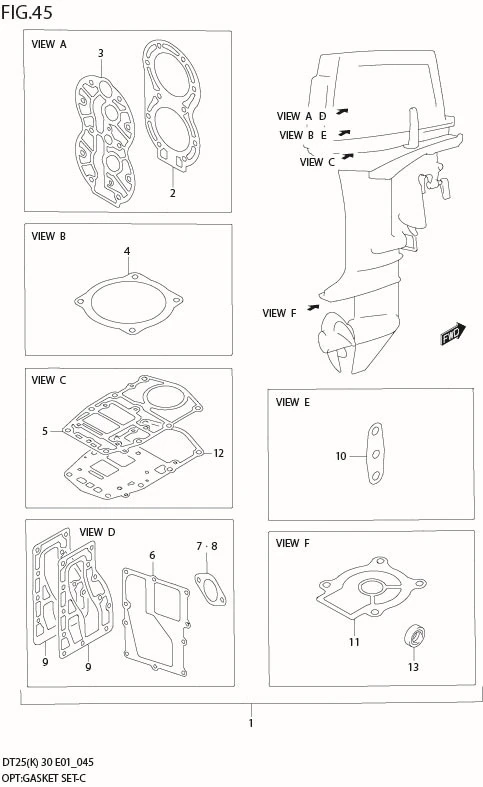

FIG 45 OPT:GASKET SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11400-96884-000	GASKET SET	1	Rp982.500	?11400-96881
2	11141-96344-000	•GASKET, CYLINDER HEAD	1	Rp221.000	?11141-96343
3	11162-96310-000	•GASKET, CYLINDER HEAD COVER	1	Rp114.500
4	DISCONTINUE SUB: 11413-96310-000	•GASKET, UPPER OIL SEAL HSG	1	-
5	11433-96330-000	•GASKET, UNDER OIL SEAL	1	Rp319.000
6	DISCONTINUE SUB: 13121-96400-000	•GASKET, INLET CASE (KRSN)	1	-
7	DISCONTINUE SUB: 13125-93010-000	•GASKET, CARBURETOR	1	-
8	13125-95210-000	•GASKET, CARBURETOR	1	Rp37.000
9	14151-96311-000	•GASKET, EXHAUST COVER	2	Rp104.000
10	15321-99710-000	•GASKET, FUEL PUMP	1	Rp28.000	EXCEPT DT25K E36
11	17472-96304-000 SUB: 17472-96303-000	•GASKET, PUMP CASE UNDER	1	Rp24.000
12-2	DISCONTINUE SUB: 52113-96321-000	•GASKET, DRIVE SHAFT HOUSING	1	-	DT25/25K/30
12-3	52113-96330-000	•GASKET, DRIVE SHAFT HOUSING	1	Rp232.000	DT25/25K/30
12-1	DISCONTINUE SUB: 52113-96361-000	•GASKET, DRIVE SHAFT HOUSING	1	-	DT25/25K/30
13	09168-10022-000	•GASKET (10X17X1.5)	3	Rp10.500
14-19	99011-963A2-057	MANUAL, OWNER'S	1	Rp150.500	MODEL:08 BOOKLET
14-35	99011-96352-040	MANUAL, OWNER'S	1	Rp150.500	DT25K:110001%
14-20	99011-963A3-057	MANUAL, OWNER'S	1	Rp150.500	MODEL:09 BOOKLET
14-21	99011-963A4-057	MANUAL, OWNER'S	1	Rp150.500	MODEL:10 BOOKLET
14-22	99011-963A6-057	MANUAL, OWNER'S	1	Rp150.500	DT30:110001%
14-23	99011-96393-01H	MANUAL, OWNER'S	1	-	DUTCH
14-24	99011-96394-01H	MANUAL, OWNER'S	1	-	MODEL:02 DUTCH
14-25	99011-96395-01H	MANUAL, OWNER'S	1	-	MODEL:03 DUTCH
14-26	99011-96396-01H	MANUAL, OWNER'S	1	-	MODEL:04 DUTCH
14-27	99011-96397-01H	MANUAL, OWNER'S	1	-	MODEL:05 DUTCH
14-28	99011-963A0-01H	MANUAL, OWNER'S	1	Rp122.000	MODEL:06 DUTCH
14-29	99011-96346-040	MANUAL, OWNER'S	1	Rp122.000	DT25K MODEL:01
14-30	99011-96347-040	MANUAL, OWNER'S	1	Rp122.000	DT25K MODEL:06
14-31	99011-96348-040	MANUAL, OWNER'S	1	Rp122.000	DT25K MODEL:07
14-32	99011-96349-040	MANUAL, OWNER'S	1	Rp150.500	DT25K MODEL:08
14-33	99011-96350-040	MANUAL, OWNER'S	1	Rp150.500	DT25K MODEL:09
14-34	99011-96351-040	MANUAL, OWNER'S	1	Rp150.500	DT25K MODEL:10
14-35	99011-96352-040	MANUAL, OWNER'S	1	Rp150.500	DT25K:110001%
14-9	99011-963A3-040	MANUAL, OWNER'S	1	Rp150.500	MODEL:09 LEAFLET
14-1	99011-96393-040	MANUAL, OWNER'S	1	Rp122.000	DRAWING NOT SHOWN
14-2	99011-96394-040	MANUAL, OWNER'S	1	Rp122.000	MODEL:02 LEAFLET
14-3	99011-96395-040	MANUAL, OWNER'S	1	Rp122.000	MODEL:03 LEAFLET
14-4	99011-96396-040	MANUAL, OWNER'S	1	Rp122.000	MODEL:04 LEAFLET
14-5	99011-96397-040	MANUAL, OWNER'S	1	Rp122.000	MODEL:05 LEAFLET
14-6	99011-963A0-040	MANUAL, OWNER'S	1	Rp122.000	MODEL:06 LEAFLET
14-7	99011-963A1-040	MANUAL, OWNER'S	1	Rp122.000	MODEL:07 LEAFLET
14-8	99011-963A2-040	MANUAL, OWNER'S	1	Rp150.500	MODEL:08 LEAFLET
14-18	99011-963A1-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:07 BOOKLET
14-10	99011-963A4-040	MANUAL, OWNER'S	1	Rp150.500	MODEL:10 LEAFLET
14-11	99011-963A5-040	MANUAL, OWNER'S	1	Rp150.500	DT30:110001%
14-12	99011-96393-051	MANUAL, OWNER'S	1	Rp150.500	BOOKLET
14-13	99011-96394-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:02 BOOKLET
14-14	99011-96395-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:03 BOOKLET
14-15	99011-96396-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:04 BOOKLET
14-16	99011-96397-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:05 BOOKLET
14-17	99011-963A0-051	MANUAL, OWNER'S	1	Rp150.500	MODEL:06 BOOKLET
