DT25(K) 30 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE (DT25/30)FIG 4 INLET CASE (DT25K)FIG 5 CARBURETOR (DT25/30)FIG 6 CARBURETOR (DT25K)FIG 7 OIL SEAL HOUSING FIG 8 EXHAUST TUBE FIG 9 FUEL PUMP (DT25/30)FIG 10 FUEL PUMP (DT25K)FIG 11 WATER PUMP FIG 12 RECOIL STARTER FIG 13 THROTTLE CONTROL (DT25/30)FIG 14 THROTTLE CONTROL (DT25/30:E40)FIG 15 THROTTLE CONTROL (DT25K)FIG 16 CLUTCH FIG 17 TRANSMISSION FIG 18 STARTING MOTOR FIG 19 MAGNETO FIG 20 IGNITION FIG 21 HARNESS FIG 22 SWITCH FIG 23 CLAMP BRACKET FIG 24 SWIVEL BRACKET FIG 25 DRIVE SHAFT HOUSING FIG 26 GEAR CASE FIG 27 UNDER COVER FIG 28 ENGINE COVER (MODEL:01)FIG 29 ENGINE COVER (MODEL:02%10)FIG 29A ENGINE COVER (DT25K:010001%,DT30:010902%)FIG 30 HANDLE FIG 31 FUEL TANK (STEEL)FIG 32 FUEL TANK (RESIN,12L)FIG 33 FUEL TANK (RESIN,25L)FIG 34 REMOCON PARTS (DT30R)FIG 35 OPT:ELECTRICAL (MANUAL STARTER)FIG 36 OPT:ELECTRICAL (ELECTRIC STARTER)FIG 37 OPT:REGULATOR FIG 38 OPT:METER FIG 39 OPT:SWITCH PANEL FIG 40 OPT:REMOCON PARTS FIG 41 OPT : REMOCON PARTS (DT25K E13)FIG 42 OPT : REMOTE CONTROL FIG 43 OPT:REMOTE CONTROL (MODEL:04%)FIG 44 OPT:DRAG LINK FIG 45 OPT:GASKET SET

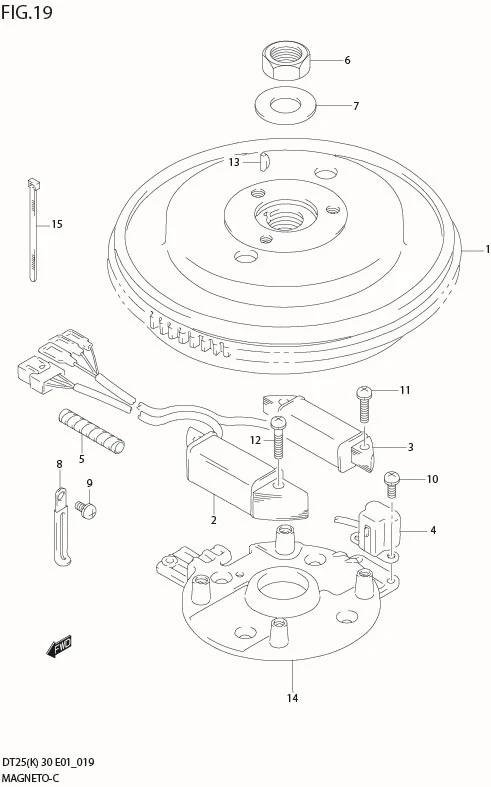

FIG 19 MAGNETO

FIG 19 MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	32102-96462-000	FLYWHEEL	1	Rp5.230.500	DT25/30
1-2	32102-96472-000	FLYWHEEL	1	Rp5.230.500	DT25K
2	DISCONTINUE SUB: 32120-96320-000	COIL, LIGHTING	1	-
3	32140-96310-000	COIL, PRIMARY	1	Rp919.500
4	32150-96330-000	COIL, IGNITION TIMING	1	Rp1.253.000
5	33833-91J00-000	TUBE	1	Rp47.500	L:250!50
6	DISCONTINUE SUB: 09140-18014-000	NUT	1	-
7	DISCONTINUE SUB: 09160-18011-000	WASHER	1	-
8	DISCONTINUE SUB: 29404-93J10-000	CLAMP	2	-	?09404-06432
9	DISCONTINUE SUB: 02112-35087-000	SCREW	1	-
10	02112-35127-000 SUB: 02112B35127N000	SCREW	2	Rp9.500
11	02112-35207-000	SCREW	2	Rp14.500
12	02112-35257-000	SCREW	2	Rp14.500
13	09420-04008-000	KEY	1	Rp23.000
14	DISCONTINUE SUB: 11411-96321-000	HOUSING, UPPER OIL SEAL	1	-
15	09407-14407-000	CLAMP	1	Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
