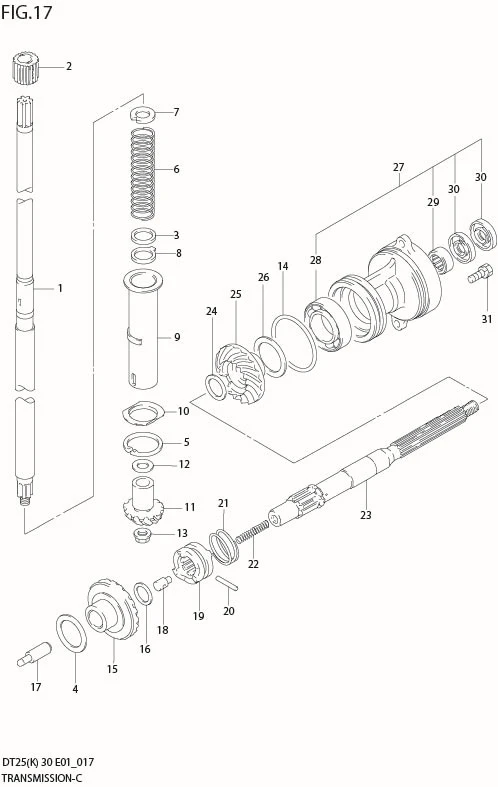

FIG 17 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	57110-91L00-000 SUB: 57110-96303-000	SHAFT, DRIVE (L)	1	Rp2.085.500
1-1	DISCONTINUE SUB: 57110-96313-000	SHAFT, DRIVE (S)	1	-
1-4	DISCONTINUE SUB: 57110-96323-000	SHAFT, DRIVE (X)	1	-
1-3	57110-96332-000	SHAFT, DRIVE (LL)	1	Rp1.523.500
2	DISCONTINUE SUB: 57130-96300-000	BUSH (LL/X)	1	-
3	08211-20253-000	THRUST WASHER	1	Rp14.000
4-1	DISCONTINUE SUB: 09181-25190-000	WASHER (T:0.8)	0	-
4-2	09181-25248-000	WASHER (T:0.9)	0	Rp19.500
4-3	DISCONTINUE SUB: 09181-25251-000	WASHER (T:1.0)	0	-
4-4	DISCONTINUE SUB: 09160-25032-000	WASHER (T:1.1)	0	-
4-5	DISCONTINUE SUB: 09160-25033-000	WASHER (T:1.2)	0	-
4-6	DISCONTINUE SUB: 09160-25034-000	WASHER (T:1.3)	0	-
4-7	DISCONTINUE SUB: 09160-25035-000	WASHER (T:1.4)	0	-
4-8	DISCONTINUE SUB: 09181-25268-000	WASHER (T:1.5)	0	-
5	08331-41406-000	CIRCLIP	1	Rp20.500
6	DISCONTINUE SUB: 09440-25002-000	SPRING	1	-
7	09166-17005-000	WASHER	1	Rp35.500
8	09167-20021-000	WASHER	1	Rp18.000
9	57133-96302-000	SPACER, PRELOAD SPRING	1	Rp97.500
10	57134-96301-000	BARRIER	1	Rp37.500
11	57311-91L00-000 SUB: 57311-96320-000	PINION	1	Rp868.000
12-1	09160-15030-000	WASHER (T:1.7)	0	Rp19.000
12-2	DISCONTINUE SUB: 09160-15031-000	WASHER (T:1.8)	0	-
12-3	DISCONTINUE SUB: 09160-15032-000	WASHER (T:1.9)	0	-
12-4	08211-15201-000 SUB: 08211-15203-000	WASHER (T:2.0)	0	Rp13.500
12-5	DISCONTINUE SUB: 09160-15033-000	WASHER (T:2.1)	0	-
12-6	DISCONTINUE SUB: 08211-15204-000	WASHER (T:2.2)	0	-
13	09159-08046-000	NUT	1	Rp49.000
14	09280-75002-000	O RING (D:3.5,ID:68.6)	1	Rp25.500
15	57510-94L00-000 SUB: 57510-89J00-000	GEAR, FORWARD	1	Rp885.000
16	09181-16008-000	WASHER (T:1.5)	1	Rp19.000
17	57631-96301-000	ROD, PUSH	1	Rp90.500
18	09209-08016-000	PIN	1	Rp39.000
19	57621-91L10-000 SUB: 57621-96310-000	SHIFTER, CLUTCH DOG	1	Rp360.000
20	09202-05021-000	PIN	1	Rp19.000
21	09440-35004-000	SPRING	1	Rp13.500
22-1	09440-07041-000	SPRING	1	Rp13.000
22-2	09440-07074-000	SPRING, RETURN	1	Rp18.000	DT25K:780448%
22-3	09440-07041-000	SPRING, RETURN	1	Rp13.000	DT25K:880050%
23	57610-96311-000	SHAFT, PROPELLER	1	Rp1.722.500
24-4	09160-20071-000	WASHER (T:2.2)	0	Rp25.500
24-6	09160-20073-000	WASHER (T:2.6)	0	Rp25.500
24-5	09160-20072-000	WASHER (T:2.4)	0	Rp25.500
24-3	09160-20070-000	WASHER (T:2.0)	0	Rp25.500
24-2	09160-20069-000	WASHER (T:1.8)	0	Rp21.000
24-1	09160-20068-000	WASHER (T:1.6)	0	Rp21.000
25-1	57521-94L00-000 SUB: 57521-96312-000	GEAR, REVERSE	1	Rp842.000	57521-89J00
25-2	57521-94L00-000 SUB: 57521-89J00-000	GEAR, REVERSE	1	Rp842.000	DT25K:780448%
26-1	08221-30404-000	THRUST WASHER (T:0.2)	0	Rp17.500
26-2	DISCONTINUE SUB: 09181-30158-000	THRUST WASHER (T:0.5)	0	-
26-3	DISCONTINUE SUB: 09181-30162-000	THRUST WASHER (T:0.8)	0	-
27-1	DISCONTINUE SUB: 56120-96332-0ED	HOUSING, PROPELLER SHAFT BRG	1	-	?56120-96331-0ED
27-2	DISCONTINUE SUB: 56120-96332-0EP	HOUSING, PROPELLER SHAFT BRG	1	-	MODEL:02%
28	08113-60060-000	•BEARING	1	Rp180.000
29	09263-20047-000	•BEARING (20X26X20)	1	Rp134.000
30	09289-20009-000	•OIL SEAL (20X34X6.5)	2	Rp52.500
31	09116-06121-000	BOLT (6X25)	2	Rp18.000
