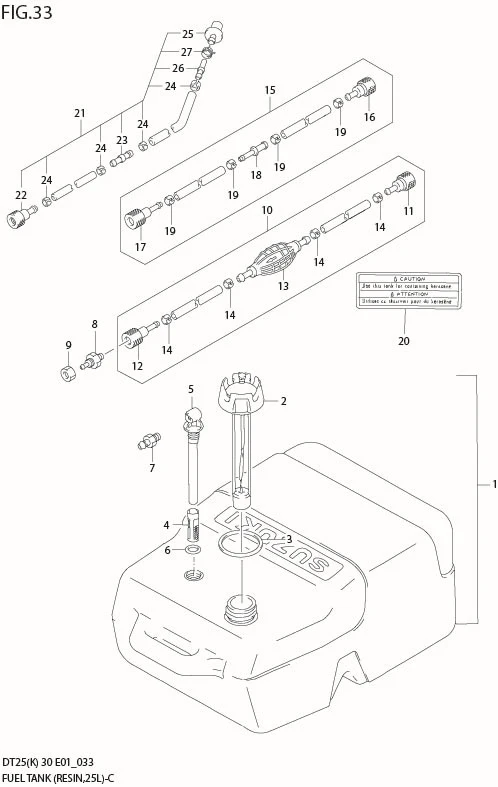

FIG 33 FUEL TANK (RESIN,25L)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65000-94L10-000 SUB: 65000-95D01-000	TANK ASSY, FUEL (25L)	1	Rp1.476.000
2	DISCONTINUE SUB: 65520-95D00-000	•CAP ASSY, FUEL TANK	1	-
3	65561-95D00-000	•GASKET, TANK CAP	1	Rp18.000
4	65831-95D00-000	•FILTER, OUTLET	1	Rp90.000
5	DISCONTINUE SUB: 65890-95D00-000	•OUTLET ASSY	1	-
6	DISCONTINUE SUB: 65892-95D00-000	•O RING, OUTLET	1	-
7	65740-95D01-000	•PLUG, FUEL CONNECTOR	1	Rp375.500
8	65720-985L1-000 SUB: 65720-98520-000	PLUG, FUEL CONNECTOR	1	Rp367.500
9	09140-10032-000	NUT	1	Rp15.000
10	65700-87D85-000 SUB: 65700-87D80-000	HOSE, FUEL	1	Rp2.020.000	?65700-87D19
11	65750-95501-000 SUB: 65750-95500-000	•SOCKET, FUEL HOSE (IN)	1	Rp374.000
12	65750-98506-000 SUB: 65750-98505-000	•SOCKET, FUEL HOSE (OUT)	1	Rp238.500
13	65770-87DL1-000 SUB: 65770-95541-000	•PUMP, SQUEEZE	1	Rp296.500
14	DISCONTINUE SUB: 65781-98500-000	•CLIP	4	-
15	65700-96362-000	HOSE, FUEL	1	Rp734.500	DT25K FOR KEROSENE
16	65750-95501-000 SUB: 65750-95500-000	•SOCKET (IN)	1	Rp374.000
17	65750-98506-000 SUB: 65750-98505-000	•SOCKET (OUT)	1	Rp238.500
18	DISCONTINUE SUB: 65779-93900-000	•UNION	1	-
19	DISCONTINUE SUB: 65781-98500-000	•CLIP	4	-
20	65318-93910-000	MARK, KEROSENE CAUTION	1	Rp28.000	DT25K MODEL:01
21	65700-94424-000	HOSE, FUEL	1	Rp734.500	DT25K MODEL:06%
22	65750-98506-000 SUB: 65750-98505-000	•SOCKET, FUEL HOSE	1	Rp238.500
23	DISCONTINUE SUB: 65779-93900-000	•UNION, FUEL HOSE	1	-
24	DISCONTINUE SUB: 65781-98500-000	•CLIP	4	-
25	DISCONTINUE SUB: 65830-95500-000	•FILTER	1	-
26	65842-94401-000	•TUBE	1	Rp106.000
27	09401-11423-000 SUB: 17818-90J00-000	•CLIP	1	Rp19.500
