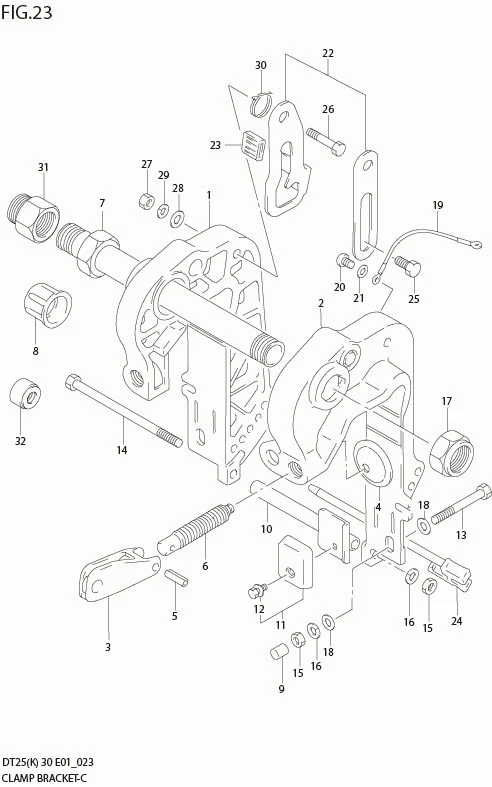

FIG 23 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	41111-95D90-0EP SUB: 41110-95D20-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp2.389.000	MODEL:02%05
1-1	DISCONTINUE SUB: 41110-95D20-0ED	BRACKET, CLAMP STBD (GRAY)	1	-
1-3	41111-95D90-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp2.389.000	MODEL:06%
2-1	DISCONTINUE SUB: 41120-95D30-0ED	BRACKET, CLAMP PORT (GRAY)	1	-
2-2	41121-95D12-0EP SUB: 41120-95D30-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp2.575.500	MODEL:02%05
2-3	41121-95D12-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp2.575.500	MODEL:06%
3-1	DISCONTINUE SUB: 41212-93001-0ED	HANDLE, CLAMP (GRAY)	2	-
3-2	41212-93001-0EP	HANDLE, CLAMP (BLACK)	2	Rp1.068.000	MODEL:02%
4	41213-94J01-000 SUB: 41213-98100-000	PLATE, CLAMP	2	Rp38.000
5	09205M06016-000 SUB: 09205-06007-000	PIN, CLAMP HANDLE	2	Rp4.500
6-2	41211-93900-000	SCREW, CLAMP	2	Rp169.000	OPT
6-1	41211-93920-000	SCREW, CLAMP	2	Rp142.500
7	41130-91L01-000 SUB: 41130-96361-000	SHAFT, CLAMP BRACKET	1	Rp1.440.500
8	41151-94500-000	CAP, CLAMP BRACKET SHAFT	2	Rp23.000
9	41153-96300-000	CAP, TRANSOM BOLT	2	Rp17.500
10	DISCONTINUE SUB: 41310-96310-000	ROD, CLAMP BRACKET LOWER	1	-
11	55320-95311-000	ZINC SET, PROTECTION	1	Rp119.500
12	09116-06094-000	•BOLT (6X15)	1	Rp19.000
13	DISCONTINUE SUB: 09100-08239-000	BOLT (8X90)	2	-
14	DISCONTINUE SUB: 09100-08295-000	BOLT (8X165)	1	-
15	09140-08023-XC0	NUT	3	Rp22.500	?09140-08016
16	29162-93J10-000	WASHER, LOCK (8.2X15.4X2.0)	3	Rp16.000	?09162-08007
17	09159-22006-000	NUT	1	Rp186.500	?09159-22003
18	09160-08081-000	WASHER (8.5X23X1.5)	4	Rp17.500
19	36894-95201-000	LEAD	1	Rp110.500
20	09125-05050-000 SUB: 29125-93J10-000	SCREW (5X8)	2	Rp14.000	?09125-05050
21	DISCONTINUE SUB: 09161-05114-000	WASHER	2	-	%MODEL:01
22	41200-91L00-000 SUB: 41200-95D00-000	ARM, TILT LOCK	1	Rp382.500
23	41225-94400-000	RUBBER, TILT LOCK ARM	1	Rp30.000
24	45420-95D04-000	PIN, TILT LOCK	1	Rp319.500
25	09111-10067-000 SUB: 09111-10032-000	BOLT	2	Rp52.500
26	09111-10068-000 SUB: 09111-10055-000	BOLT	2	Rp156.500
27	09140-10031-000 SUB: 29141-93J20-000	NUT	2	Rp14.500	?09140-10031
28	09160-10082-000 SUB: 29160-93J00-000	WASHER	2	Rp12.000
29	09162-10005-000	WASHER	2	Rp13.000
30	09448-29015-000	SPRING	1	Rp37.500
31	41141-94301-000	ATTACHMENT, STEERING CABLE	1	Rp538.500	OPT E40
32	DISCONTINUE SUB: 41161-94400-000	SEAL, STEERING CABLE	1	-	OPT
