DT25(K) 30 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE (DT25/30)FIG 4 INLET CASE (DT25K)FIG 5 CARBURETOR (DT25/30)FIG 6 CARBURETOR (DT25K)FIG 7 OIL SEAL HOUSING FIG 8 EXHAUST TUBE FIG 9 FUEL PUMP (DT25/30)FIG 10 FUEL PUMP (DT25K)FIG 11 WATER PUMP FIG 12 RECOIL STARTER FIG 13 THROTTLE CONTROL (DT25/30)FIG 14 THROTTLE CONTROL (DT25/30:E40)FIG 15 THROTTLE CONTROL (DT25K)FIG 16 CLUTCH FIG 17 TRANSMISSION FIG 18 STARTING MOTOR FIG 19 MAGNETO FIG 20 IGNITION FIG 21 HARNESS FIG 22 SWITCH FIG 23 CLAMP BRACKET FIG 24 SWIVEL BRACKET FIG 25 DRIVE SHAFT HOUSING FIG 26 GEAR CASE FIG 27 UNDER COVER FIG 28 ENGINE COVER (MODEL:01)FIG 29 ENGINE COVER (MODEL:02%10)FIG 29A ENGINE COVER (DT25K:010001%,DT30:010902%)FIG 30 HANDLE FIG 31 FUEL TANK (STEEL)FIG 32 FUEL TANK (RESIN,12L)FIG 33 FUEL TANK (RESIN,25L)FIG 34 REMOCON PARTS (DT30R)FIG 35 OPT:ELECTRICAL (MANUAL STARTER)FIG 36 OPT:ELECTRICAL (ELECTRIC STARTER)FIG 37 OPT:REGULATOR FIG 38 OPT:METER FIG 39 OPT:SWITCH PANEL FIG 40 OPT:REMOCON PARTS FIG 41 OPT : REMOCON PARTS (DT25K E13)FIG 42 OPT : REMOTE CONTROL FIG 43 OPT:REMOTE CONTROL (MODEL:04%)FIG 44 OPT:DRAG LINK FIG 45 OPT:GASKET SET

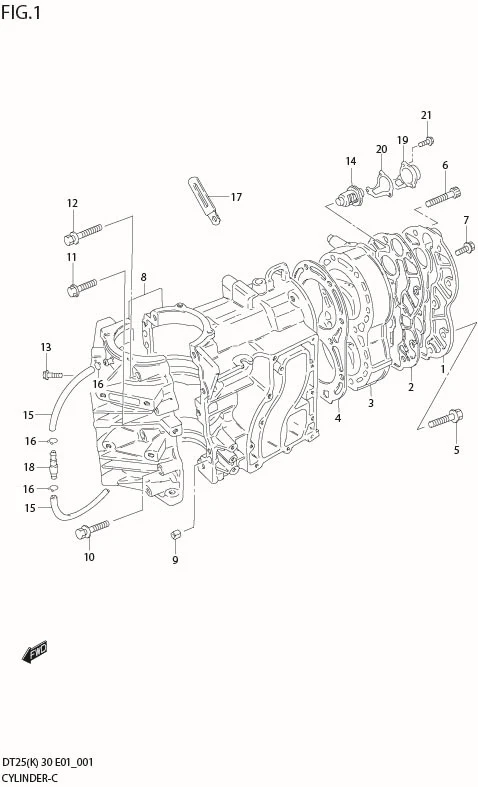

FIG 1 CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11161-96310-0EP	COVER, CYLINDER HEAD	1	Rp2.381.000	MODEL:02%
1-1	11161-96310-0ED	COVER, CYLINDER HEAD	1	Rp327.500
2	11162-96310-000	GASKET, CYLINDER HEAD COVER	1	Rp114.500
3-1	11111-96312-0ED	CYLINDER HEAD	1	Rp1.163.500	DT25
3-2	DISCONTINUE SUB: 11111-96351-0ED	CYLINDER HEAD	1	-	DT25K
3-3	11111-96351-0EP	CYLINDER HEAD	1	Rp1.041.500	DT25K MODEL:06%
3-4	DISCONTINUE SUB: 11111-96303-0ED	CYLINDER HEAD	1	-	DT30
3-5	11111-96303-0EP	CYLINDER HEAD	1	Rp1.020.000	DT30 MODEL:02%
4	11141-96344-000	GASKET, CYLINDER HEAD	1	Rp221.000	?11141-96343
5	01560-08657-000	BOLT	8	Rp24.000
6	DISCONTINUE SUB: 07130-08657-000	BOLT	2	-
7	01580-06257-000	BOLT	2	Rp17.500
8-1	DISCONTINUE SUB: 11301-96321-0ED	CYLINDER ASSY	1	-
8-2	11301-96321-0EP	CYLINDER ASSY	1	Rp9.026.000	MODEL:02%
9	04211M09109-000 SUB: 04211-09109-000	•PIN	2	Rp5.500
10	DISCONTINUE SUB: 01560-08557-000	•BOLT	4	-
11	01560-08457-000	•BOLT	2	Rp21.500
12	01560-08607-000	•BOLT	2	Rp24.000
13	02162-06257-000	•BOLT	4	Rp9.500
14-1	17670-93964-000 SUB: 17670-93962-000	THERMOSTAT (50ßC)	1	Rp508.000	DT25/30
14-2	17670-94404-000 SUB: 17670-94402-000	THERMOSTAT (60ßC)	1	Rp520.000	DT25K
15	DISCONTINUE SUB: 09355-30705-600	HOSE (3X7X600)	2	-	L:600!180
16	09401-06406-000	CLIP	4	Rp16.000
17-1	DISCONTINUE SUB: 29404-93J10-000	CLAMP (L:65)	1	-	?09404-06432
17-2	DISCONTINUE SUB: 09404B06433N000	CLAMP (L:80)	1	-	DT30R MODEL:03,04
17-3	DISCONTINUE SUB: 09404B06435N000	CLAMP (L:120)	1	-	DT30R MODEL:05%
18	DISCONTINUE SUB: 16710-95211-000	CHECK VALVE	1	-
19-1	17681-96300-0ED	COVER, THERMOSTAT	1	Rp860.000
19-2	17681-96300-0EP	COVER, THERMOSTAT	1	Rp1.035.000	MODEL:02%
20	17685-96300-000	GASKET, THERMOSTAT	1	Rp33.000
21	09103-06125-000	BOLT (6X16)	3	Rp16.500
