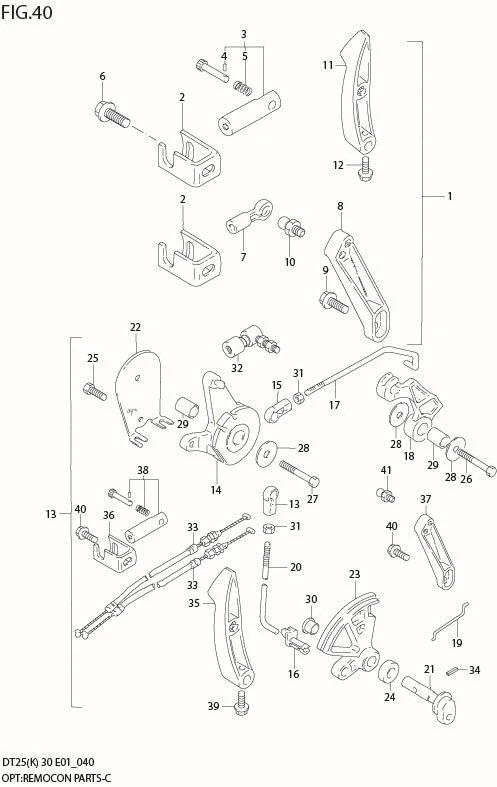

FIG 40 OPT:REMOCON PARTS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 67130-96310-0EP	REMOTE CONTROL PARTS SET	1	-	MODEL:02%
1-1	DISCONTINUE SUB: 67130-96310-0ED	REMOTE CONTROL PARTS SET	1	-
2	DISCONTINUE SUB: 67341-94302-000	•HOLDER, REMO-CON CABLE	2	-	STD:DT30R
3	DISCONTINUE SUB: 67440-93701-000	•GUIDE, CLUTCH CABLE	1	-	STD:DT30R
4	09205-02006-000	••PIN	1	Rp12.000	STD:DT30R
5	09440-09042-000	••SPRING	1	Rp16.000	STD:DT30R
6	09116-06094-000	•BOLT (6X15)	2	Rp23.500	STD:DT30R
7	67466-95200-000	•CONNECTOR, REMO-CON CABLE	1	Rp50.500	STD:DT30R
8-1	DISCONTINUE SUB: 67414-94301-0ED	•LEVER, REMO-CON THROTTLE	1	-	STD:DT30R
8-2	67414-91L00-0EP SUB: 67414-94301-0EP	•LEVER, REMO-CON THROTTLE	1	Rp650.000	MODEL:02%
9	09116-06094-000	•BOLT (6X15)	1	Rp23.500	STD:DT30R
10	09119-06047-000	•BALL PIVOT	1	Rp51.000	STD:DT30R
11-2	21111-96303-0EP	•LEVER, CLUTCH	1	Rp279.000	MODEL:02%
11-1	DISCONTINUE SUB: 21111-96302-0ED	•LEVER, CLUTCH	1	-
12	09103-06093-000 SUB: 29103-93J10-000	•BOLT (6X20)	1	Rp13.500
13-1	67130-96320-0ED	REMOTE CONTROL PARTS SET	1	Rp1.087.500	E40
13-2	DISCONTINUE SUB: 67130-96320-0EP	REMOTE CONTROL PARTS SET	1	-	MODEL:02%
14	DISCONTINUE SUB: 19121-96301-000	•LEVER, THROTTLE CONTROL	1	-
15	19131-95502-000	•CONNECTOR, THROTTLE LEVER	2	Rp41.000
16	DISCONTINUE SUB: 19131-96300-000	•RETAINER, ROD CONNECTOR	1	-
17	DISCONTINUE SUB: 19135-96301-000	•ROD	1	-
18	19141-96301-000	•CAM, THROTTLE	1	Rp56.000
19	DISCONTINUE SUB: 19654-96300-000	•ROD	1	-
20	DISCONTINUE SUB: 19656-96300-000	•ROD	1	-
21	19720-96302-000	•SHAFT, REMO-CON THROTTLE	1	Rp80.500
22	19761-96301-000	•STAY, THROTTLE CABLE	1	Rp36.500
23	19811-96302-000	•LIMITER, THROTTLE	1	Rp202.000
24	DISCONTINUE SUB: 19859-94300-000	•SPACER, NSI	1	-
25	09100-06131-000	•BOLT (6X12)	1	Rp16.000
26	09116-06232-000 SUB: 09100-06121-000	•BOLT (6X30)	1	Rp21.000
27	09116-06232-000 SUB: 09100-06121-000	•BOLT (6X30)	1	Rp21.000
28	09160-06006-000 SUB: 09160-06084-000	•WASHER (6.5X18X1.6)	3	Rp11.000
29	DISCONTINUE SUB: 09180-06105-000	•SPACER (6.1X10X14)	2	-
30	09306-10001-000	•BUSH	1	Rp26.000
31	09140-05005-000	•NUT	2	Rp22.000
32	DISCONTINUE SUB: 67431-93701-000	•GUIDE, THROTTLE CABLE	1	-
33	DISCONTINUE SUB: 63610-96302-000	•CABLE, THROTTLE	2	-
34	09205-04002-000	•PIN	1	Rp13.000
35-1	DISCONTINUE SUB: 21111-96302-0ED	•LEVER, CLUTCH	1	-
35-2	21111-96303-0EP	•LEVER, CLUTCH	1	Rp279.000	MODEL:02%
36	DISCONTINUE SUB: 67341-94302-000	•HOLDER, REMO-CON CABLE	2	-
37-1	DISCONTINUE SUB: 67414-94301-0ED	•LEVER, REMO-CON THROTTLE	1	-
37-2	67414-91L00-0EP SUB: 67414-94301-0EP	•LEVER, REMO-CON THROTTLE	1	Rp650.000	MODEL:02%
38	DISCONTINUE SUB: 67440-93701-000	•GUIDE, CLUTCH CABLE	1	-
39	09103-06093-000 SUB: 29103-93J10-000	•BOLT (6X20)	1	Rp13.500
40	09116-06094-000	•BOLT (6X15)	3	Rp23.500
41	09119-06047-000	•PIVOT, BALL	1	Rp51.000
