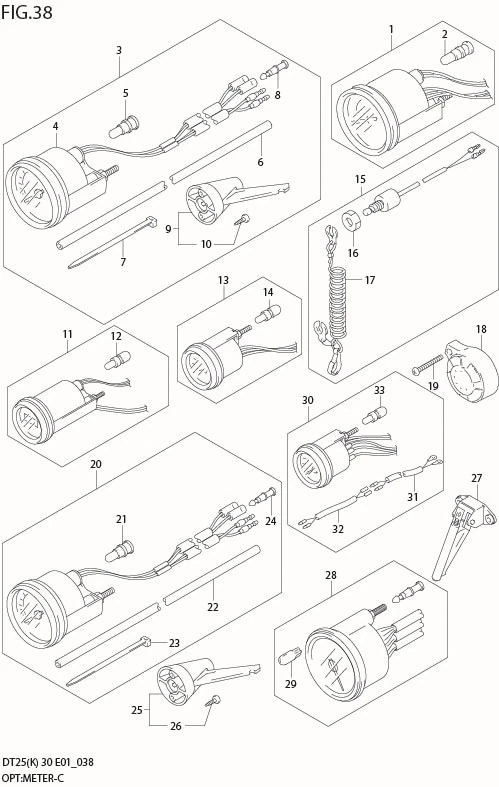

FIG 38 OPT:METER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 34200-92E02-000	TACHOMETER	1	-
2	09471-12179-000	•BULB	1	Rp25.500
3-2	34102-92E20-000	SPEEDOMETER SET	1	Rp2.078.500	MAX 45KNOTS
3-1	DISCONTINUE SUB: 34102-92E10-000	SPEEDOMETER SET	1	-	MAX 80KM/H
4-1	34100-92E10-000	•SPEEDOMETER	1	Rp1.466.500	MAX 80KM/H
4-2	34100-92E20-000	•SPEEDOMETER	1	Rp1.480.500	MAX 45KNOTS
5	09471-12179-000	•BULB	1	Rp25.500
6	34191-92E00-000	•TUBE	1	Rp244.500
7	09407-14407-000	•BAND	1	Rp18.500
8	36615-96300-000	•TERMINAL, RESIN	1	Rp11.000
9	DISCONTINUE SUB: 34190-95500-000	•SENDER ASSY, SPEEDOMETER	1	-
10	03112-06303-000	••SCREW	2	Rp11.500
11-2	34500-93J02-000 SUB: 34500-93J00-000	METER ASSY, HOUR	1	Rp1.918.500	BLACK,MODEL:05%
11-3	34500-93J13-000 SUB: 34500-93J11-000	METER ASSY, HOUR	1	Rp2.048.500	WHITE,MODEL:05%
11-1	DISCONTINUE SUB: 34500-92E00-000	METER ASSY, HOUR	1	-
12-1	09471-12180-000	•BULB	1	Rp25.000
12-2	DISCONTINUE SUB: 09471B12103N000	•BULB	1	-	FOR 34500-93J00
13-1	DISCONTINUE SUB: 34600-92E00-000	METER ASSY, VOLTAGE	1	-
13-2	DISCONTINUE SUB: 34600-93J00-000	METER ASSY, VOLTAGE	1	-	BLACK,MODEL:05%
13-3	34600-93J13-000 SUB: 34600-93J11-000	METER ASSY, VOLTAGE	1	Rp1.162.000	WHITE,MODEL:05%
14-1	09471-12180-000	•BULB	1	Rp25.000
14-2	DISCONTINUE SUB: 09471B12103N000	•BULB	1	-	FOR 34600-93J00
15	37820-92E05-000 SUB: 37820-92E03-000	SWITCH ASSY, EMERGENCY	1	Rp369.500
16	37826-92E00-000	•NUT	1	Rp65.500
17	37823-92E02-000 SUB: 37823-92E01-000	•CAP & ROPE	1	Rp221.500
18	DISCONTINUE SUB: 38500-92X50-000	BUZZER ASSY, WARNING	1	-
19	DISCONTINUE SUB: 02112-05207-000	SCREW	1	-
20-1	34100-93J20-000	SPEEDOMETER ASSY	1	Rp1.301.500	MAX 80KM/H BLACK
20-2	34100-93J31-000	SPEEDOMETER ASSY	1	Rp1.301.500	MAX 80KM/H WHITE
20-3	DISCONTINUE SUB: 34100-93J40-000	SPEEDOMETER ASSY	1	-	MAX 45KNOTS BLACK
20-4	34100-93J53-000 SUB: 34100-93J51-000	SPEEDOMETER ASSY	1	Rp2.246.000	MAX 45KNOTS WHITE
21	09471-12028-000 SUB: 09471B12028N000	•BULB	1	Rp8.000
22	34191-92E00-000	•TUBE	1	Rp244.500
23	09407-14407-000	•BAND	2	Rp18.500
24	36615-96300-000	•TERMINAL, RESIN	2	Rp11.000
25	DISCONTINUE SUB: 34190-95500-000	SENDER ASSY, SPEEDOMETER	1	-	MODEL:05%
26	03112-06303-000	•SCREW	2	Rp11.500
27	DISCONTINUE SUB: 34190-87D00-000	SENDER ASSY, SPEEDOMETER	1	-	MODEL:05%
28-1	34200-93J20-000	TACHOMETER ASSY	1	Rp1.480.500	BLACK,MODEL:05%
28-2	34200-93J34-000 SUB: 34200-93J31-000	TACHOMETER ASSY	1	Rp2.161.000	WKITE,MODEL:05%
29	09471-12028-000 SUB: 09471B12028N000	•BULB	1	Rp8.000
30-1	DISCONTINUE SUB: 34300-93J00-000	GAUGE ASSY, FUEL	1	-	BLACK,MODEL:05%
30-2	34300-93J11-000	GAUGE ASSY, FUEL	1	Rp1.267.000	WHITE,MODEL:05%
31	34310-92E00-000	•LEAD, FUEL GAUGE	1	Rp702.000
32	34360-92E00-000	•ADAPTER, FUEL GAUGE	1	Rp288.000
33	DISCONTINUE SUB: 09471B12103N000	•BULB	1	-
