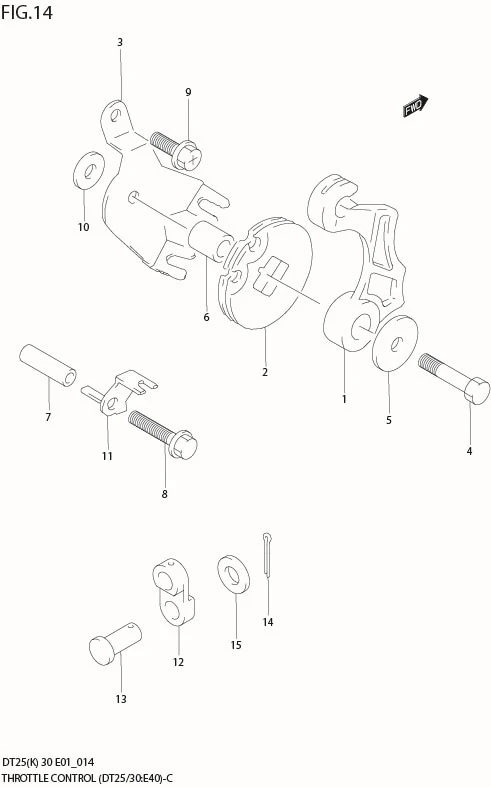

FIG 14 THROTTLE CONTROL (DT25/30:E40)

FIG 14 THROTTLE CONTROL (DT25/30:E40)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	19141-96301-000	CAM, THROTTLE	1	Rp56.000
2	DISCONTINUE SUB: 19148-96300-000	DRUM, THROTTLE	1	-
3	DISCONTINUE SUB: 19149-96300-000	BRACKET, THROTTLE CAM	1	-
4	09116-06232-000 SUB: 09100-06121-000	BOLT	1	Rp17.500
5	09160-06006-000 SUB: 09160-06084-000	WASHER	1	Rp11.000
6	DISCONTINUE SUB: 09180-06105-000	SPACER	1	-
7	09180-06186-000	SPACER (TH CABLE STAY)	1	Rp41.500
8	01550-06357-000	BOLT	1	Rp18.500
9	02162-06127-000	BOLT	1	Rp12.500
10	DISCONTINUE SUB: 08322-01067-000	WASHER (TH CABLE STAY)	2	-
11-1	18642-96300-000	HOLDER, INTERLOCK CABLE	1	Rp32.000
11-2	18642-96301-000	HOLDER, INTERLOCK CABLE	1	Rp42.000	MODEL:06%
12	18652-96300-000	CONNECTOR, INTERLOCK CABLE	1	Rp37.500
13	DISCONTINUE SUB: 09200-05006-000	PIN	1	-
14	09204-01002-000	COTTER PIN	1	Rp13.000
15	09160-05029-000	WASHER (5.5X12X0.8)	1	Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
