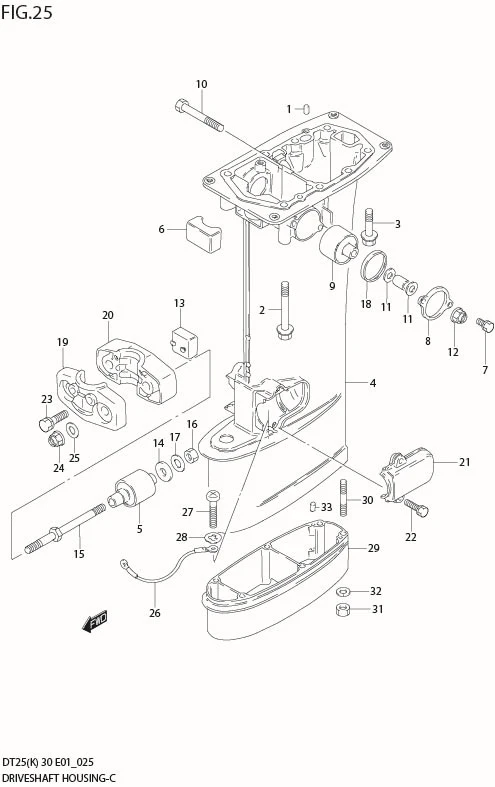

FIG 25 DRIVE SHAFT HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 09202-06023-000	PIN (L:10)	2	-
2	09118-08172-000 SUB: 09118-08098-000	BOLT (8X85)	4	Rp53.000
3	09118-08090-000	BOLT (8X50)	4	Rp83.000
4-1	52110-96361-0ED SUB: 52110-96360-0ED	HOUSING, DRIVE SHAFT (S)	1	Rp2.536.000
4-2	52110-96361-0EP	HOUSING, DRIVE SHAFT (S)	1	Rp5.310.500	MODEL:02%
4-3	52110-96371-0ED SUB: 52110-96370-0ED	HOUSING, DRIVE SHAFT (L/LL/X)	1	Rp3.173.500
4-4	52110-96371-0EP	HOUSING, DRIVE SHAFT (L/LL/X)	1	Rp3.119.000	MODEL:02%
5-1	DISCONTINUE SUB: 54160-96310-000	MOUNTING, LOWER (S/L)	2	-
5-2	DISCONTINUE SUB: 54160-96320-000	MOUNTING, LOWER (LL/X)	2	-
6	54121-96301-000	MOUNTING, UPPER THRUST REVERSE	1	Rp54.500
7	09117-06030-000	BOLT (6X16)	4	Rp18.000
8-1	54137-96301-0ED	COVER, UPPER MOUNTING	2	Rp64.000
8-2	54137-96301-0EP	COVER, UPPER MOUNT	1	Rp62.500	MODEL:02%
9	DISCONTINUE SUB: 54130-96320-000	MOUNTING, UPPER	2	-
10	DISCONTINUE SUB: 09100-10260-000	BOLT (10X75)	2	-
11	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2)	4	Rp12.000
12	09159-10050-000	NUT	2	Rp23.500
13	DISCONTINUE SUB: 54151-96300-000	MOUNTING, LOWER THRUST	1	-
14	54165-96310-000	DAMPER, REVERSE STOPPER	2	Rp21.500
15	54166-96311-000	BOLT, LOWER MOUNTING	2	Rp350.500
16	09140-10032-000	NUT	2	Rp15.000
17	DISCONTINUE SUB: 09160-10083-000	WASHER (10.5X30X3.2)	2	-
18	DISCONTINUE SUB: 54138-96300-000	SLEEVE, UPPER MOUNT	2	-
19-1	DISCONTINUE SUB: 54211-96320-0ED	BRACKET, LOWER MOUNT FRONT	1	-
19-2	54211-96321-0EP	BRACKET, LOWER MOUNT FRONT	1	Rp427.000	MODEL:02%
20-1	DISCONTINUE SUB: 54212-96310-0ED	BRACKET, LOWER MOUNT AFT	1	-
20-2	54212-96311-0EP	BRACKET, LOWER MOUNT AFT	1	Rp439.000	MODEL:02%
21-1	54221-96320-0ED	COVER, LOWER MOUNT	2	Rp276.000
21-2	54221-96321-0EP	COVER, LOWER MOUNT	2	Rp299.000	MODEL:02%
22	DISCONTINUE SUB: 09117-06032-000	BOLT (6X30)	4	-
23-1	09117-08056-XC0 SUB: 09117-08056-000	BOLT (8X40)	2	Rp184.500
23-2	09116-08128-000	BOLT (8X40)	2	Rp124.500	MODEL:06%
24	09159-10050-000	NUT	2	Rp23.500
25	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2)	2	Rp12.000
26	36894-95201-000	LEAD (L:165)	1	Rp110.500
27	09125-05050-000	SCREW (5X8)	2	Rp14.000
28	DISCONTINUE SUB: 09161-05114-000	WASHER (5.2X11X1)	2	-	%MODEL:01
29-1	52131-96333-0ED SUB: 52131-96332-0ED	CASE, EXTENSION (LL)	1	Rp1.053.500
29-2	52131-96333-0EP	CASE, EXTENSION (LL)	1	Rp1.036.500	MODEL:02%
29-3	52131-96304-0ED SUB: 52131-96303-0ED	CASE, EXTENSION (X)	1	Rp1.290.000
29-4	52131-96304-0EP	CASE, EXTENSION (X)	1	Rp1.267.000	MODEL:02%
30-1	09108-08109-000	STUD BOLT (LL)	6	Rp55.000
30-2	DISCONTINUE SUB: 09108-08104-000	STUD BOLT (X)	6	-
31	09140-08023-XC0	NUT (LL/X)	6	Rp22.500	?09140-08016
32	29162-93J10-000	LOCK WASHER (LL/X)	6	Rp16.000	?09162-08007
33	DISCONTINUE SUB: 09202-06015-000	PIN (L:20)	2	-	TYPE:LL/X
