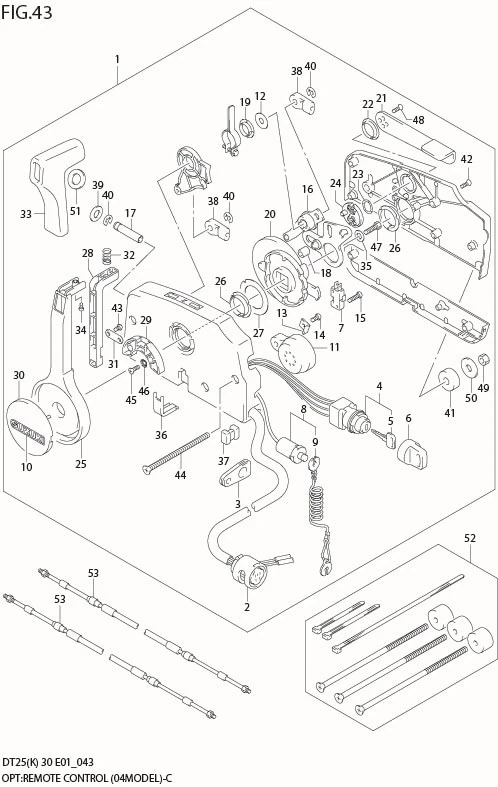

FIG 43 OPT:REMOTE CONTROL (MODEL:04%)

FIG 43 OPT:REMOTE CONTROL (MODEL:04%)
No No. Part Description Qty Price Per Pcs Remarks
1-2 67200-939B4-000
SUB: 67200-939B2-000		 REMOTE CONTROL BOX 1 Rp3.089.500
1-1 DISCONTINUE
SUB: 67200-97E42-000		 REMOTE CONTROL BOX 1 -
2 36620-95D10-000 •WIRE ASSY, REMOCON 1 Rp2.067.000 FOR 67200-97E42
3 36628-92E00-000 •GROMMET 1 Rp42.000
4 DISCONTINUE
SUB: 37110-99E00-000		 •SWITCH ASSY, IGNITION 1 - FOR 67200-97E42
5-1 DISCONTINUE
SUB: 37141-99E00-000		 ••KEY (931) 1 - FOR 67200-97E42
5-2 DISCONTINUE
SUB: 37141-99E10-000		 ••KEY (932) 1 - FOR 67200-97E42
5-3 DISCONTINUE
SUB: 37141-99E20-000		 ••KEY (933) 1 - FOR 67200-97E42
5-4 DISCONTINUE
SUB: 37141-99E30-000		 ••KEY (934) 1 - FOR 67200-97E42
5-5 DISCONTINUE
SUB: 37141-99E40-000		 ••KEY (935) 1 - FOR 67200-97E42
5-6 DISCONTINUE
SUB: 37141-99E50-000		 ••KEY (936) 1 - FOR 67200-97E42
5-7 DISCONTINUE
SUB: 37141-99E60-000		 ••KEY (937) 1 - FOR 67200-97E42
5-8 DISCONTINUE
SUB: 37141-99E70-000		 ••KEY (938) 1 - FOR 67200-97E42
5-9 DISCONTINUE
SUB: 37141-99E80-000		 ••KEY (939) 1 - FOR 67200-97E42
5-10 DISCONTINUE
SUB: 37141-99E90-000		 ••KEY (940) 1 - FOR 67200-97E42
5-11 DISCONTINUE
SUB: 37141-99EA0-000		 ••KEY (941) 1 - FOR 67200-97E42
5-12 DISCONTINUE
SUB: 37141-99EB0-000		 ••KEY (942) 1 - FOR 67200-97E42
6 37143-99E00-000 ••CAP, KEY 1 Rp26.000 FOR 67200-97E42
7 DISCONTINUE
SUB: 37721-94600-000		 •SWITCH, NEUTRAL 1 -
8-2 37830-95D04-000
SUB: 37830-95D02-000		 •SWITCH ASSY, EMERGENCY & STOP 1 Rp542.000 FOR 67200-939B2
8-1 37820-92E05-000
SUB: 37820-92E03-000		 •SWITCH ASSY, EMERGENCY 1 Rp369.500 FOR 67200-97E42
9 37823-92E02-000
SUB: 37823-92E01-000		 ••PLATE 1 Rp221.500
10 68165-16B01-13L
SUB: 68165-16B00-13L		 •EMBLEM, SUZUKI 1 Rp47.500
11 DISCONTINUE
SUB: 38500-92X50-000		 •BUZZER, WARNING 1 - FOR 67200-97E42
12 67212-95600-000 •WASHER 1 Rp25.500
13 67213-92E00-000 •BRACKET, BUZZER 1 Rp35.000 FOR 67200-97E42
14 DISCONTINUE
SUB: 09125-05042-000		 •SCREW, BUZZER BRKT 1 - FOR 67200-97E42
15 67296-92E10-000 •SCREW, BUZZER BRKT 2 Rp17.000 FOR 67200-97E42
16 DISCONTINUE
SUB: 67220-95620-000		 •PLATE ASSY 1 -
17 67223-99E10-000 •KNOB, BRAKE ADJUST 1 Rp59.000
18 67229-95600-000 •ROLLER 1 Rp54.500
19 67232-95600-000 •BUSH 1 Rp44.000
20 DISCONTINUE
SUB: 67238-87D00-000		 •GEAR, DRIVE 1 -
21 67241-99E10-000 •LEVER, FREE THROTTLE 1 Rp177.000
22 67243-95600-000 •BUSH 1 Rp37.000
23 67244-95600-000 •WAVE WASHER 1 Rp27.500
24 67245-95600-000 •DRUM, FREE THROTTLE 1 Rp194.000
25 67251-99E10-000 •LEVER, HANDLE 1 Rp617.000
26 67252-95600-000 •BUSH 1 Rp45.500
27 67253-95600-000 •WASHER 1 Rp45.500
28 67255-99E00-000 •ARM, LOCK 1 Rp174.000
29 67256-95600-000 •HOLDER, NEUT LOCK 1 Rp94.000
30 67257-99E00-000 •CAP, LEVER 1 Rp92.500
31 67258-99E00-000 •BRACKET 1 Rp31.000
32 67259-87D00-000 •SPRING, NEUTRAL ARM 1 Rp55.000
33 67261-99E00-000 •GRIP 1 Rp354.000
34 67296-94310-000 •SCREW, BUZZER BRKT 1 Rp14.500 ?67262-95600
35 67264-95600-000 •WASHER 1 Rp22.000
36 67267-95610-000 •COVER, WIRE 1 Rp44.500
37 67273-95601-000
SUB: 67273-95600-000		 •SPACER 1 Rp35.000
38 67275-95600-000 •END, CABLE 2 Rp70.500
39 67288-92E00-000 •WASHER 1 Rp24.500 ?67288-99E00
40 67292-94300-000 •E RING 1 Rp12.500
41 67294-95600-000 •SPACER 3 Rp42.500
42 67296-90J00-000 •SCREW, COVER 5 Rp17.000
43 67296-94300-000 •SCREW 2 Rp10.500
44 67296-95600-000 •SCREW 3 Rp56.500
45 67296-95610-000 •SCREW 2 Rp28.500
46 67297-95600-000 •WASHER 2 Rp23.500
47 09100-08232-000 •BOLT 1 Rp35.000
48 DISCONTINUE
SUB: 09126-05003-000		 •SCREW 2 -
49 09140-06020-000 •NUT 3 Rp14.000
50 09160-06104-000 •WASHER 3 Rp22.000
51 37859-90J00-000 •SPACER 1 Rp32.500
52 67140-95601-000
SUB: 67140-95600-000		 ATTACHMENT, TWIN REMOCON KIT 1 Rp351.000
53-9 67320-93J80-000 CABLE, REMOCON 24F (7.3M) 2 Rp922.000
53-8 DISCONTINUE
SUB: 67320-93J70-000		 CABLE, REMOCON 22F (6.7M) 2 -
53-7 67320-93J60-000 CABLE, REMOCON 20F (6.1M) 2 Rp820.000
53-6 67320-93J50-000 CABLE, REMOCON 18F (5.5M) 2 Rp767.500
53-5 67320-93J40-000 CABLE, REMOCON 16F (4.9M) 2 Rp715.000
53-4 67320-93J30-000 CABLE, REMOCON 14F (4.3M) 2 Rp662.500
53-3 67320-93J20-000 CABLE, REMOCON 12F (3.7M) 2 Rp613.500
53-2 67320-93J10-000 CABLE, REMOCON 10F (3.1M) 2 Rp564.500
53-1 DISCONTINUE
SUB: 67320-93J00-000		 CABLE, REMOCON 8F (2.4M) 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
