DT25(K) 30 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE (DT25/30)FIG 4 INLET CASE (DT25K)FIG 5 CARBURETOR (DT25/30)FIG 6 CARBURETOR (DT25K)FIG 7 OIL SEAL HOUSING FIG 8 EXHAUST TUBE FIG 9 FUEL PUMP (DT25/30)FIG 10 FUEL PUMP (DT25K)FIG 11 WATER PUMP FIG 12 RECOIL STARTER FIG 13 THROTTLE CONTROL (DT25/30)FIG 14 THROTTLE CONTROL (DT25/30:E40)FIG 15 THROTTLE CONTROL (DT25K)FIG 16 CLUTCH FIG 17 TRANSMISSION FIG 18 STARTING MOTOR FIG 19 MAGNETO FIG 20 IGNITION FIG 21 HARNESS FIG 22 SWITCH FIG 23 CLAMP BRACKET FIG 24 SWIVEL BRACKET FIG 25 DRIVE SHAFT HOUSING FIG 26 GEAR CASE FIG 27 UNDER COVER FIG 28 ENGINE COVER (MODEL:01)FIG 29 ENGINE COVER (MODEL:02%10)FIG 29A ENGINE COVER (DT25K:010001%,DT30:010902%)FIG 30 HANDLE FIG 31 FUEL TANK (STEEL)FIG 32 FUEL TANK (RESIN,12L)FIG 33 FUEL TANK (RESIN,25L)FIG 34 REMOCON PARTS (DT30R)FIG 35 OPT:ELECTRICAL (MANUAL STARTER)FIG 36 OPT:ELECTRICAL (ELECTRIC STARTER)FIG 37 OPT:REGULATOR FIG 38 OPT:METER FIG 39 OPT:SWITCH PANEL FIG 40 OPT:REMOCON PARTS FIG 41 OPT : REMOCON PARTS (DT25K E13)FIG 42 OPT : REMOTE CONTROL FIG 43 OPT:REMOTE CONTROL (MODEL:04%)FIG 44 OPT:DRAG LINK FIG 45 OPT:GASKET SET

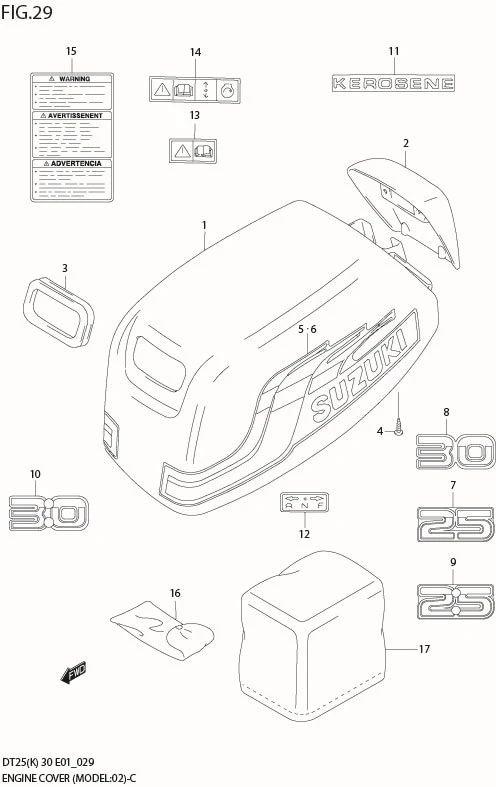

FIG 29 ENGINE COVER (MODEL:02%10)

FIG 29 ENGINE COVER (MODEL:02%10)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61400-96803-0EP	COVER SET, ENGINE (BLACK)	1	Rp6.295.500
2	61431-96310-019	•HANDLE, TILT UP (BLACK)	1	Rp1.202.500
3	DISCONTINUE SUB: 61622-96302-000	•RUBBER, RECOIL STARTER SEAL	1	-
4	03542-06169-000	•SCREW	4	Rp16.000
5	61443-963B1-000	•STRIPE, STARBOARD	1	Rp347.500
6	61453-963B1-000	•STRIPE, PORT	1	Rp347.500
7	61435-964J1-000	MARK, EMBLEM REAR	1	Rp94.500	DT25
8	61435-964G1-000	MARK, EMBLEM REAR	1	Rp180.500	DT30
9	61435-964K1-000	MARK, EMBLEM FRONT	1	Rp90.000	DT25
10	61435-964H1-000	MARK, EMBLEM FRONT	1	Rp180.500	DT30
11	61449-93921-000	MARK, KEROSENE	1	Rp81.500	DT25K
12	21131-96010-000	MARK, CLUTCH SHIFT	1	Rp12.000
13	DISCONTINUE SUB: 69712-93E10-000	LABEL, CAUTION	1	-
14	69711-93E11-000 SUB: 69711-93E10-000	LABEL, CAUTION	1	Rp39.000
15	DISCONTINUE SUB: 61581-98620-000	MARK, SAFETY WARNING	1	-
16	DISCONTINUE SUB: 09800-01008-000	TOOL SET	1	-
17	DISCONTINUE SUB: 68110-94400-000	COVER, WEATHER	1	-	OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
