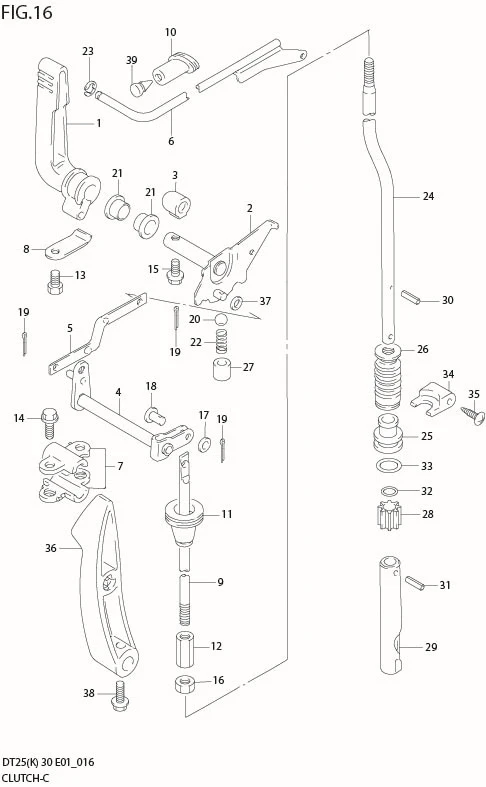

FIG 16 CLUTCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21111-96311-000	LEVER, CLUTCH	1	Rp174.500
2	21120-91L00-000 SUB: 21120-96320-000	PLATE, CLUTCH NOTCH	1	Rp360.000
3	21142-96300-000	CAP, CLUTCH SHAFT	1	Rp37.500
4	DISCONTINUE SUB: 21210-96300-000	SHAFT, CLUTCH	1	-
5	DISCONTINUE SUB: 21241-96300-000	ROD, CLUTCH ARM	1	-
6	21242-96302-000	ROD, CLUTCH LEVER	1	Rp313.000
7	DISCONTINUE SUB: 21311-96300-000	HOLDER, CLUTCH SHIFT SHAFT	4	-
8	21312-96300-000	HOLDER, CLUTCH LEVER	1	Rp40.500
9	DISCONTINUE SUB: 23111-96300-000	ROD, CLUTCH	1	-
10	DISCONTINUE SUB: 23131-93900-000	BOOT, CLUTCH LEVER ROD	1	-
11	DISCONTINUE SUB: 23131-94300-000	BOOT, CLUTCH ROD	1	-
12	23311-95DL0-000 SUB: 23311-95D01-000	TURNBUCKLE, CLUTCH ROD	1	Rp72.500
13	09100-06131-000	BOLT (6X12)	1	Rp13.000
14	09103-06093-000 SUB: 29103-93J10-000	BOLT (6X20)	4	Rp13.000	?09103-06093
15	09103-06092-000	BOLT (6X15)	1	Rp16.500
16	29141-93J00-000	NUT	1	Rp18.500	?09140-06020
17	09160-05029-000	WASHER (5.5X12X0.8)	1	Rp14.000
18	DISCONTINUE SUB: 09200-05006-000	PIN	1	-
19	09204-01002-000	PIN, COTTER	3	Rp13.000
20	09260-10005-000	BALL	1	Rp15.500
21	09306-10001-000	BUSH	2	Rp24.000
22	09440-07021-000	SPRING	1	Rp13.000
23	09383-08004-000	E RING	1	Rp9.500
24-1	DISCONTINUE SUB: 25111-96310-000	ROD, SHIFT (S)	1	-	L:235
24-2	DISCONTINUE SUB: 25111-96300-000	ROD, SHIFT (L)	1	-	L:362
24-3	25111-96330-000	ROD, SHIFT (LL)	1	Rp230.500	L:422
24-4	DISCONTINUE SUB: 25111-96320-000	ROD, SHIFT (X)	1	-	L:489
25	25211-91L00-000 SUB: 25211-96301-000	GUIDE, SHIFT ROD	1	Rp118.000
26	25222-96301-000 SUB: 25222-96300-000	BOOT, SHIFT ROD GUIDE	1	Rp61.500
27	DISCONTINUE SUB: 25231-96301-000	HOLDER, MAGNET	1	-
28	25232-96302-000	MAGNET	1	Rp48.500
29	DISCONTINUE SUB: 25311-96303-000	CAM, CLUTCH SHIFT	1	-
30	09205-02004-000	PIN	1	Rp10.500
31	09205-03021-000	PIN	1	Rp11.500
32	09280-08005-000	O RING (D:1.8,ID:7.6)	1	Rp2.000
33	09280-13005-000	O RING (D:3.5,ID:12.8)	1	Rp18.000
34	DISCONTINUE SUB: 25215-96301-000	STOPPER, SHIFT ROD GUIDE	1	-
35	09139-04004-000	SCREW (4X12)	2	Rp9.000
36-1	DISCONTINUE SUB: 21111-96302-0ED	LEVER, CLUTCH (GRAY)	1	-	DT30R
36-2	21111-96303-0EP	LEVER, CLUTCH (BLACK)	1	Rp279.000	DT30R
37	09160-05024-000	WASHER (5.5X16X1.5)	1	Rp9.500	DT30R
38	09103-06093-000 SUB: 29103-93J10-000	BOLT (6X20)	1	Rp13.000	DT30R
39	09250-06012-000	PLUG	1	Rp9.000	DT30R
