DT25(K) 30 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE (DT25/30)FIG 4 INLET CASE (DT25K)FIG 5 CARBURETOR (DT25/30)FIG 6 CARBURETOR (DT25K)FIG 7 OIL SEAL HOUSING FIG 8 EXHAUST TUBE FIG 9 FUEL PUMP (DT25/30)FIG 10 FUEL PUMP (DT25K)FIG 11 WATER PUMP FIG 12 RECOIL STARTER FIG 13 THROTTLE CONTROL (DT25/30)FIG 14 THROTTLE CONTROL (DT25/30:E40)FIG 15 THROTTLE CONTROL (DT25K)FIG 16 CLUTCH FIG 17 TRANSMISSION FIG 18 STARTING MOTOR FIG 19 MAGNETO FIG 20 IGNITION FIG 21 HARNESS FIG 22 SWITCH FIG 23 CLAMP BRACKET FIG 24 SWIVEL BRACKET FIG 25 DRIVE SHAFT HOUSING FIG 26 GEAR CASE FIG 27 UNDER COVER FIG 28 ENGINE COVER (MODEL:01)FIG 29 ENGINE COVER (MODEL:02%10)FIG 29A ENGINE COVER (DT25K:010001%,DT30:010902%)FIG 30 HANDLE FIG 31 FUEL TANK (STEEL)FIG 32 FUEL TANK (RESIN,12L)FIG 33 FUEL TANK (RESIN,25L)FIG 34 REMOCON PARTS (DT30R)FIG 35 OPT:ELECTRICAL (MANUAL STARTER)FIG 36 OPT:ELECTRICAL (ELECTRIC STARTER)FIG 37 OPT:REGULATOR FIG 38 OPT:METER FIG 39 OPT:SWITCH PANEL FIG 40 OPT:REMOCON PARTS FIG 41 OPT : REMOCON PARTS (DT25K E13)FIG 42 OPT : REMOTE CONTROL FIG 43 OPT:REMOTE CONTROL (MODEL:04%)FIG 44 OPT:DRAG LINK FIG 45 OPT:GASKET SET

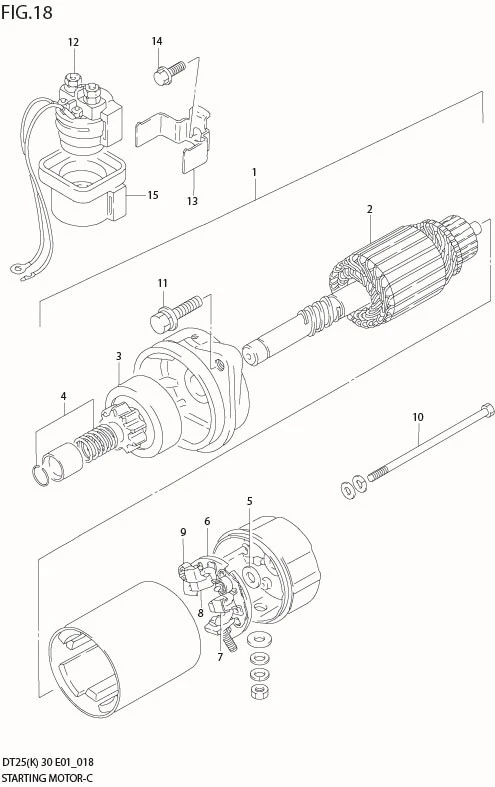

FIG 18 STARTING MOTOR

FIG 18 STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-94402-000 SUB: 31100-94401-000	MOTOR ASSY, STARTING	1	Rp6.984.500
2	31310-96300-000	•ARMATURE	1	Rp3.371.000
3	31320-94400-000	•PISTON ASSY	1	Rp1.863.500
4	31312-96300-000	•STOPPER SET, PINION	1	Rp109.500
5	31360-96300-000	•WASHER	1	Rp104.500
6	31173-89J00-000	•HOLDER ASSY, BRUSH	1	Rp579.000
7	DISCONTINUE SUB: 31131-96300-000	••BRUSH (+)	1	-
8	DISCONTINUE SUB: 31132-96300-000	••BRUSH (-)	1	-
9	31135-89J00-000	••SPRING, BRUSH	2	Rp45.500	?31135-96300
10	31281-93340-000	•BOLT	2	Rp34.000
11	01580-08257-000	BOLT	2	Rp20.000
12	31800-94401-000	RELAY ASSY, STARTING MOTOR	1	Rp1.008.500
13	DISCONTINUE SUB: 31805-96350-000	BRACKET, STARTING MOTOR	1	-
14	01550-06167-000	BOLT	1	Rp16.500
15	DISCONTINUE SUB: 38422-94520-000	DAMPER, TRIM RELAY	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
