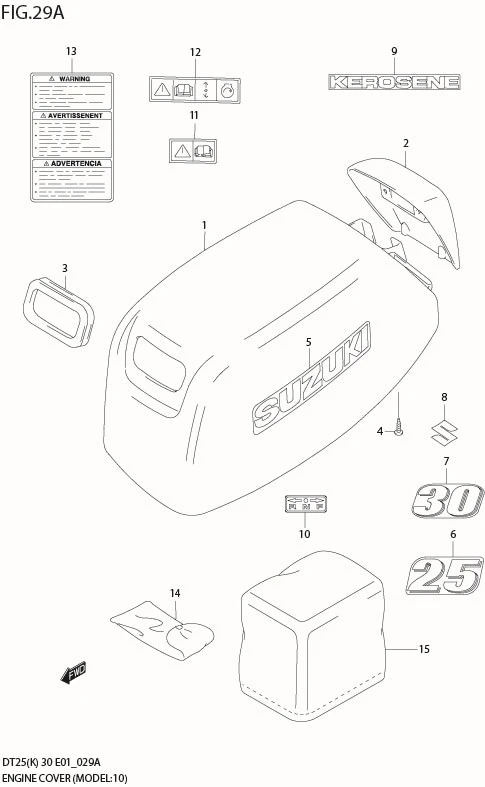

FIG 29A ENGINE COVER (DT25K:010001%,DT30:010902%)

FIG 29A ENGINE COVER (DT25K:010001%,DT30:010902%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61410-96871-0EP SUB: 61410-96870-0EP	COVER SET, ENGINE (BLACK)	1	Rp7.673.500
2	61431-96310-019	•HANDLE, TILT UP (BLACK)	1	Rp1.202.500
3	DISCONTINUE SUB: 61622-96302-000	•RUBBER, RECOIL STARTER SEAL	1	-
4	03542-06169-000	•SCREW	4	Rp16.000
5	61441-96321-000 SUB: 61441-96320-000	•STRIPE, STARBOARD	2	Rp131.000
6	61435-963A1-000 SUB: 61435-963A0-000	MARK, EMBLEM REAR	1	Rp60.000	DT25
7	61435-963B1-000 SUB: 61435-963B0-000	MARK, EMBLEM REAR	1	Rp80.000	DT30
8	68641-32G00-YD8	EMBLEM "S"	1	Rp98.000
9	61449-93921-000	MARK, KEROSENE	1	Rp81.500	DT25K
10	21131-96010-000	MARK, CLUTCH SHIFT	1	Rp12.000
11	DISCONTINUE SUB: 69712-93E10-000	LABEL, CAUTION	1	-
12	69711-93E11-000 SUB: 69711-93E10-000	LABEL, CAUTION	1	Rp39.000
13	DISCONTINUE SUB: 61581-98620-000	MARK, SAFETY WARNING	1	-
14	DISCONTINUE SUB: 09800-01008-000	TOOL SET	1	-
15	DISCONTINUE SUB: 68110-94400-000	COVER, WEATHER	1	-	OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
