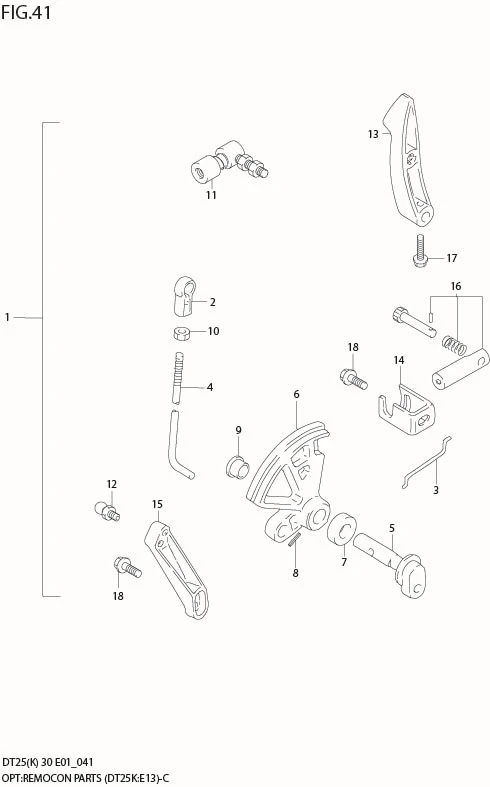

FIG 41 OPT : REMOCON PARTS (DT25K E13)

FIG 41 OPT : REMOCON PARTS (DT25K E13)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67130-96360-000	REMOTE CONTROL PARTS ASSY	1	Rp1.033.500
2	19131-95502-000	•CONNECTOR, THROTTLE LEVER	2	Rp39.000
3	DISCONTINUE SUB: 19654-96300-000	•ROD	1	-
4	DISCONTINUE SUB: 19656-96300-000	•ROD	1	-
5	19720-96302-000	•SHAFT, REMO-CON THROTTLE	1	Rp80.500
6	19811-96302-000	•LIMITER, THROTTLE	1	Rp202.000
7	DISCONTINUE SUB: 19859-94300-000	•SPACER, NSI	1	-
8	09205-04002-000	•SPRING PIN	1	Rp10.500
9	09306-10001-000	•BUSH	1	Rp24.000
10	09140-05005-000	•NUT	1	Rp20.000
11	DISCONTINUE SUB: 67431-93701-000	•GUIDE, THROTTLE CABLE	1	-
12	09119-06047-000	•PIVOT, BALL	1	Rp42.500
13	DISCONTINUE SUB: 21111-96302-0ED	•LEVER, CLUTCH	1	-
14	DISCONTINUE SUB: 67341-94302-000	•HOLDER, REMO-CON CABLE	2	-
15	DISCONTINUE SUB: 67414-94301-0ED	•LEVER, REMO-CON THROTTLE	1	-
16	DISCONTINUE SUB: 67440-93701-000	•GUIDE, CLUTCH CABLE	1	-
17	09103-06093-000	•BOLT (6X20)	1	Rp13.000
18	09116-06094-000	•BOLT (6X15)	3	Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
