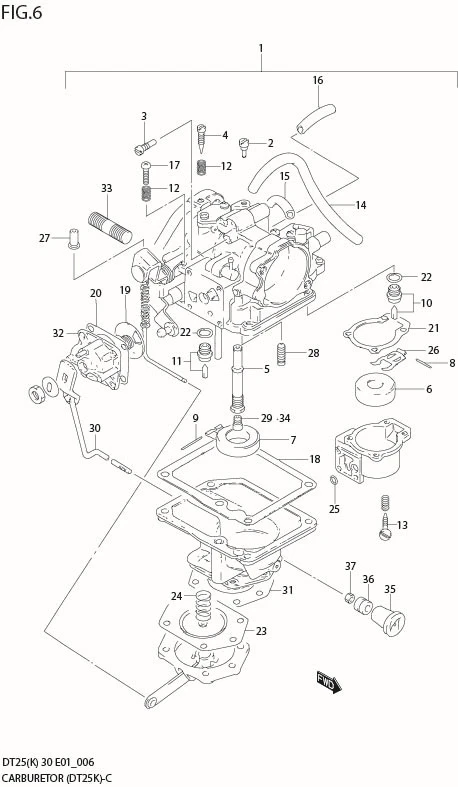

FIG 6 CARBURETOR (DT25K)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 13200-96461-000	CARBURETOR ASSY	1	-	E36
1-1	DISCONTINUE SUB: 13200-963H0-000	CARBURETOR ASSY	1	-	E13
2-2	09492-50008-000	•JET, PILOT (#50)	1	Rp59.500	GASOLINE,E36
2-1	09492-70001-000	•JET, PILOT (#70)	1	Rp53.500	GASOLINE,E13
3-1	DISCONTINUE SUB: 09492-20025-000	•JET, PILOT (#100)	1	-	KEROSENE,E13
3-2	09492-30017-000	•JET, PILOT (#150)	1	Rp86.000	KEROSENE,E36
4	DISCONTINUE SUB: 13269-98100-000	•SCREW, PILOT	1	-
5	DISCONTINUE SUB: 13235-94350-000	•NOZZLE	1	-
6	DISCONTINUE SUB: 13270-94350-000	•FLOAT	1	-	GASOLINE
7	13250-93012-000	•FLOAT	1	Rp144.000	KEROSENE
8	DISCONTINUE SUB: 13254-98410-000	•PIN	1	-	GASOLINE
9	DISCONTINUE SUB: 13254-98300-000	•PIN	1	-	KEROSENE
10	DISCONTINUE SUB: 13370-94350-000	•VALVE ASSY, NEEDLE	1	-	GASOLINE
11	13370-28110-000	•VALVE ASSY, NEEDLE	1	Rp270.500	KEROSENE
12	DISCONTINUE SUB: 13268-96111-000	•SPRING, STOP SCREW	2	-
13	DISCONTINUE SUB: 13616-93900-000	•ADJUSTER	1	-
14	DISCONTINUE SUB: 13651-95300-000	•HOSE	1	-	L:175!125
15	DISCONTINUE SUB: 13651-94350-000	•HOSE	1	-	L:175!28,50
16	DISCONTINUE SUB: 13651-94350-000	•HOSE	1	-	L:175!28
17	DISCONTINUE SUB: 13534-96300-000	•SCREW, THROTTLE STOP	1	-
18	DISCONTINUE SUB: 13245-94350-000	•GASKET, FLOAT CHAMBER	1	-	KEROSENE
19	DISCONTINUE SUB: 13415-94350-000	•DISC ASSY	1	-
20	DISCONTINUE SUB: 13418-94360-000	•GASKET	1	-
21	DISCONTINUE SUB: 13265-94360-000	•GASKET, FLOAT CHAMBER	1	-	GASOLINE
22	13392-58600-000	•PACKING, NEEDLE VALVE SEAT	2	Rp13.000
23	DISCONTINUE SUB: 13450-94350-000	•MEMBRANE ASSY	1	-
24	DISCONTINUE SUB: 13441-94350-000	•SPRING	1	-
25	DISCONTINUE SUB: 13521-78100-000	•O RING	1	-
26	DISCONTINUE SUB: 13282-94350-000	•ARM	1	-
27	DISCONTINUE SUB: 13461-94350-000	•NUT	1	-
28	DISCONTINUE SUB: 13443-94350-000	•VALVE ASSY	1	-
29-1	09491-30010-000	•JET, MAIN (#150)	1	Rp89.000	E13
29-2	09491-29010-000	•JET, MAIN (#147.5)	1	Rp86.000	E36
30	13580-96351-000	•LEVER ASSY, STARTER	1	Rp372.500
31	DISCONTINUE SUB: 13446-94360-000	•GASKET	1	-
32	DISCONTINUE SUB: 13419-94400-000	•COVER, DISK	1	-
33	01411-0820A-000 SUB: 01411-08207-000	STUD BOLT	1	Rp11.500
34-1	09491-34007-000	JET, MAIN (#170)	1	Rp96.500	OPT
34-2	09491-32012-000	JET, MAIN (#160)	1	Rp87.000	OPT
34-3	DISCONTINUE SUB: 09491-31014-000	JET, MAIN (#155)	1	-	OPT
34-4	DISCONTINUE SUB: 09491-31007-000	JET, MAIN (#157.5)	1	-	OPT
34-5	09491-29010-000	JET, MAIN (#147.5)	1	Rp86.000	OPT
34-6	09491-28012-000	JET, MAIN (#142.5)	1	Rp77.000	OPT
35	13631-93501-000	KNOB, STARTER	1	Rp40.500
36	09320-04013-000 SUB: 09320-04009-000	BUSHING, STARTER ROD	1	Rp17.500
37	09140-04007-000	NUT, KNOB STARTER	1	Rp14.000
