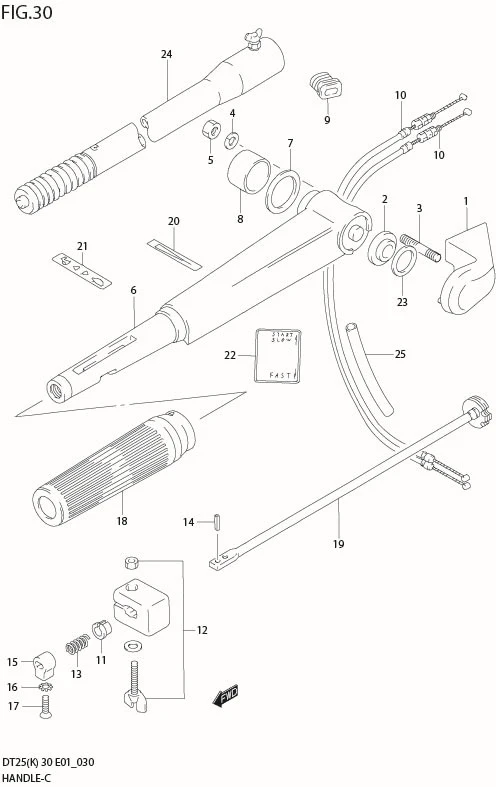

FIG 30 HANDLE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	63121-96401-0EP	COVER, TILLER HANDLE (BLACK)	1	Rp2.170.500	MODEL:02%
1-1	DISCONTINUE SUB: 63121-96400-0ED	COVER, TILLER HANDLE (GRAY)	1	-
2	63114-95L00-000 SUB: 63114-94300-000	SPACER, HANDLE COVER	1	Rp80.000
3	09108-08219-000	STUD BOLT (8X59)	2	Rp59.500
4	29162-93J10-000	LOCK WASHER (8.2X15.4X2.0)	2	Rp16.000	?09162-08007
5	09140-08023-XC0	NUT	2	Rp22.500	?09140-08016
6-1	DISCONTINUE SUB: 63111-96322-0ED	HANDLE, TILLER (GRAY)	1	-
6-2	63111-96322-0EP	HANDLE, TILLER (BLACK)	1	Rp1.184.000	MODEL:02%
7	63115-96310-000	SPACER	1	Rp57.000
8	63116-96301-000	BUSH, TILLER HANDLE	1	Rp43.500
9	63625-96301-000 SUB: 63625-96300-000	GROMMET	1	Rp25.500
10-1	63610-91L00-000 SUB: 63610-96321-000	CABLE, THROTTLE (L:560)	2	Rp135.000	DT25/30
10-2	DISCONTINUE SUB: 63610-96315-000	CABLE, THROTTLE (L:372)	2	-	DT25/30 FOR E40
10-3	63610-91L00-000 SUB: 63610-96321-000	CABLE, THROTTLE (L:560)	2	Rp135.000	DT25K
11	63225-93200-000	BUSH, HANDLE ROD	1	Rp37.000
12-2	63240-97E20-000	ADJUSTER SET, HANDLE GRIP	1	Rp202.000	MODEL:06%
12-1	63240-97E20-000 SUB: 63240-97E00-000	ADJUSTER SET, HANDLE GRIP	1	Rp202.000
13	09440-12027-000	SPRING	1	Rp13.000
14	63227-93200-000	PIN, HANDLE ROD	1	Rp21.000	L:14
15	63223-92D00-000	STOPPER, HANDLE ROD	1	Rp37.500
16	09163-06001-000	LOCK WASHER	1	Rp11.000
17	09126-06015-000	SCREW	1	Rp19.000
18-1	63210-93E20-000	GRIP, HANDLE	1	Rp391.500	DT25K MODEL:01
18-2	63210-93E30-000	GRIP, HANDLE	1	Rp293.000
19-1	63220-96302-000	ROD, HANDLE	1	Rp254.500
19-2	63220-94304-000	ROD, HANDLE	1	Rp419.000	E40
20	63215-93400-000	MARK, HANDLE GRIP	1	Rp24.500
21	63215-93401-000	MARK, HANDLE GRIP	1	Rp22.500	E40
22	DISCONTINUE SUB: 63215-93450-000	MARK, HANDLE GRIP	1	-	DT25K MODEL:01
23-1	63118-94300-000	SHIM (0.3)	1	Rp33.500
23-2	DISCONTINUE SUB: 63118-94310-000	SHIM (0.5)	1	-	OPT
24	DISCONTINUE SUB: 63300-93E00-000	BAR ASSY, EXTENSION	1	-	OPT
25	18498-91J00-000	PROTECTOR, THROTTLE CABLE	1	Rp21.500	DT25K MODEL:06%
