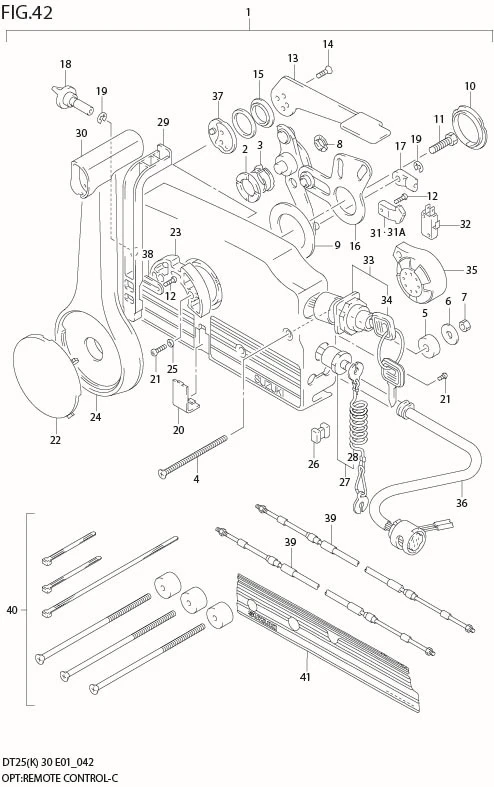

FIG 42 OPT : REMOTE CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	67200-97E44-000 SUB: 67200-97E20-0EP	REMOTE CONTROL BOX (BLACK)	1	Rp3.844.000	MODEL:02,03
1-1	67200-97E44-000 SUB: 67200-97E20-0ED	REMOTE CONTROL BOX (GRAY)	1	Rp3.844.000	STD:DT30R
1-4	67200-939B4-000 SUB: 67200-93991-0EP	REMOTE CONTROL BOX (BLACK)	1	Rp3.089.500	MODEL:02,03
1-3	67200-939B4-000 SUB: 67200-93991-0ED	REMOTE CONTROL BOX (GRAY)	1	Rp3.089.500
2	67232-95600-000	•BUSH	1	Rp44.000
3	67232-95620-000	•BUSH	1	Rp47.000
4	67296-95600-000	•SCREW	3	Rp47.000
5	67294-95600-000	•SPACER	3	Rp35.000
6	09160-06104-000	•WASHER	3	Rp18.000
7	09140-06020-000	•NUT	3	Rp13.500
8	67232-95610-000	•BUSH	2	Rp27.000
9	67253-95600-000	•WASHER	1	Rp37.500
10	67252-95600-000	•BUSH	2	Rp37.500
11	09100-08232-000	•BOLT	1	Rp29.000
12	67296-94300-000	•SCREW	3	Rp10.500
13	67241-95680-000	•LEVER, FREE THROTTLE (GRAY)	1	Rp151.000
14	DISCONTINUE SUB: 09126-05003-000	•SCREW	2	-
15	67243-95600-000	•BUSH	1	Rp30.500
16	DISCONTINUE SUB: 67220-95620-000	•PLATE ASSY	1	-
17	67275-95600-000	•END, CABLE	2	Rp70.500
18	DISCONTINUE SUB: 67223-95600-000	•KNOB, BRAKE ADJ	1	-
19	67292-94300-000	•E RING	3	Rp11.000
20	67267-95610-000	•COVER, WIRE (BLACK)	1	Rp44.500
21	67296-95610-000	•SCREW	7	Rp23.500
22	67257-95610-000	•CAP, LEVER (BLACK)	1	Rp55.500
23	67256-95600-000	•HOLDER, NEUTRAL LOCK	1	Rp80.500
24	67251-95680-000	•LEVER, HANDLE (GRAY)	1	Rp427.000
25	67297-95600-000	•WASHER	2	Rp23.500
26	67273-95601-000 SUB: 67273-95600-000	•SPACER	1	Rp35.000
27-1	37820-92E05-000 SUB: 37820-92E00-000	•SWITCH ASSY, EMERGENCY	1	Rp369.500	FOR 67200-97E20
27-2	37830-95D04-000 SUB: 37830-95D00-000	•SWITCH ASSY, EMERGENCY	1	Rp491.500	FOR 67200-93991
28	37823-92E02-000 SUB: 37823-92E00-000	••CAP & ROPE	1	Rp221.500
29	67255-95600-000	•ARM, NEUTRAL LOCK	1	Rp83.500
30	67261-95610-000	•GRIP	1	Rp144.500
31	DISCONTINUE SUB: 67214-95600-000	•ACTUATOR	1	-
31A	DISCONTINUE SUB: 67238-87D00-000	•GEAR, DRIVE	1	-
32	DISCONTINUE SUB: 37721-94600-000	•SWITCH, NEUTRAL	1	-
33	37110-99E01-000 SUB: 37110-92E02-000	•IGNITION SWITCH	1	Rp487.000	FOR 67200-97E20
34-10	37141-92E90-000	••KEY (20)	1	Rp147.000	FOR 67200-97E20
34-9	37141-92E80-000	••KEY (19)	1	Rp147.000	FOR 67200-97E20
34-8	37141-92E70-000	••KEY (18)	1	Rp147.000	FOR 67200-97E20
34-7	37141-92E60-000	••KEY (17)	1	Rp147.000	FOR 67200-97E20
34-6	37141-92E50-000	••KEY (16)	1	Rp77.500	FOR 67200-97E20
34-4	37141-92E30-000	••KEY (14)	1	Rp147.000	FOR 67200-97E20
34-3	37141-92E20-000	••KEY (13)	1	Rp147.000	FOR 67200-97E20
34-2	37141-92E10-000	••KEY (12)	1	Rp147.000	FOR 67200-97E20
34-1	37141-92E00-000	••KEY (11)	1	Rp147.000	FOR 67200-97E20
34-5	37141-92E40-000	••KEY (15)	1	Rp147.000	FOR 67200-97E20
35	DISCONTINUE SUB: 38500-92X50-000	•BUZZER	1	-	FOR 67200-97E20
36	36620-95D00-000	•WIRING HARNESS 7 WIRES	1	Rp1.952.000	FOR 67200-97E20
37	67245-95600-000	•DRUM ASSY, FREE THROTTLE	1	Rp194.000
38	67258-87D00-000	•BRACKET, NEUTRAL ARM	1	Rp30.000
39-2	67320-93J10-000	CABLE, CLUTCH 10F (3.1M)	2	Rp564.500
39-9	67320-93J80-000	CABLE, CLUTCH 24F (7.3M)	2	Rp922.000
39-8	DISCONTINUE SUB: 67320-93J70-000	CABLE, CLUTCH 22F (6.7M)	2	-
39-7	67320-93J60-000	CABLE, CLUTCH 19F (6.1M)	2	Rp820.000
39-6	67320-93J50-000	CABLE, CLUTCH 18F (5.5M)	2	Rp767.500
39-5	67320-93J40-000	CABLE, CLUTCH 16F (4.9M)	2	Rp715.000
39-4	67320-93J30-000	CABLE, CLUTCH 14F (4.3M)	2	Rp662.500
39-3	67320-93J20-000	CABLE, CLUTCH 12F (3.7M)	2	Rp613.500
39-1	DISCONTINUE SUB: 67320-93J00-000	CABLE, CLUTCH 8F (2.4M)	2	-
40	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, TWIN REMO-CON KIT	1	Rp351.000
41	67282-95610-000	DECAL, REMOCON BOX PORT	1	Rp44.000	BLACK
